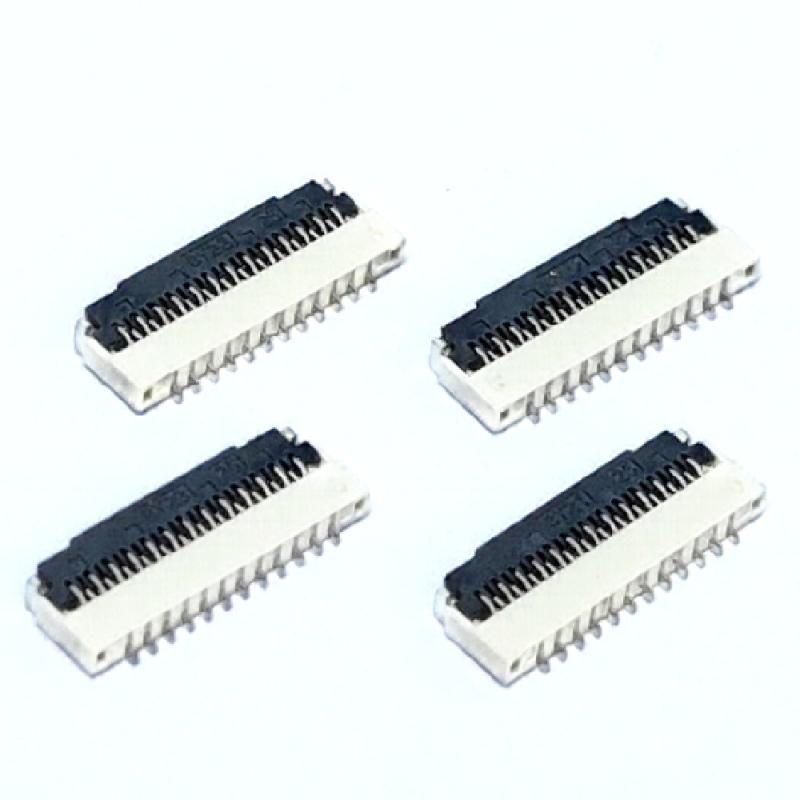

Microminiature ZIF 12 Pin Fpc Connector

Gangyuan provides a series of FPC connectors with pitches of 0.3mm, 0.5mm, 0.8mm, 1.0mm and 1.25mm, horizontal and vertical directions and multiple locking methods.

Brand:
Gangyuan
Item NO.:
GYFA0310-XXRD-G
Order(MOQ):
5000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Product Detail

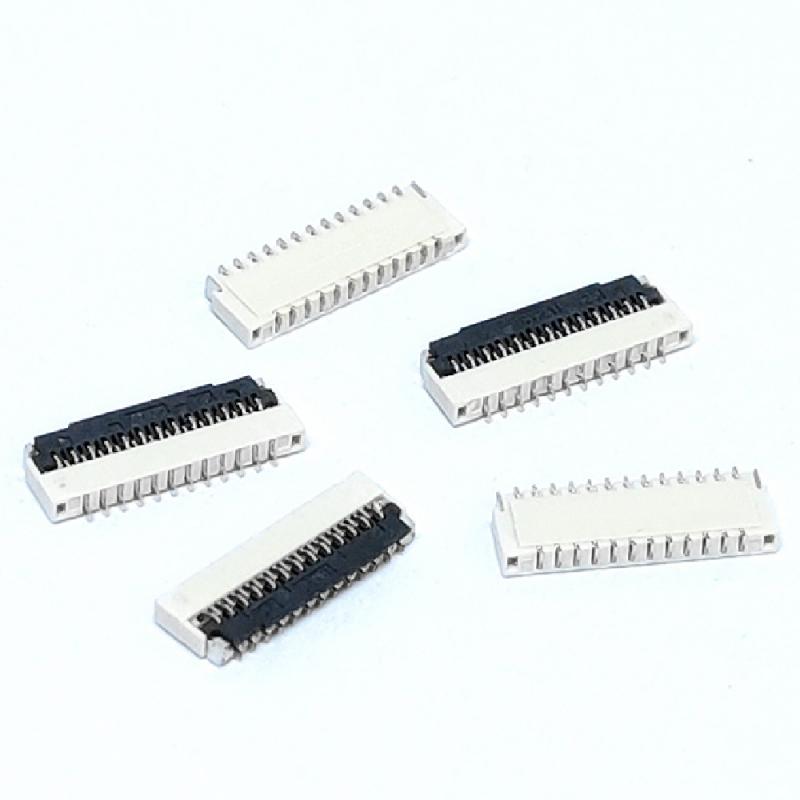

PEDAL-LIFT TYPE bottom contact Flexible Printed Circuit board Connector

fpc manufacturing

Parameter

fpc flex

Ratings: 30Vrms AC/DC 0.2A

Contact Resistance: ≤40mΩ

Insulation Resistance: ≥50MΩ

FPC Retention Force: Pos. x 0.15N Min.

Terminal Retention Force: Pos. x 0.8N Min.

Number of contacts: 13~51

Operating Temperature Range: -25℃～85℃

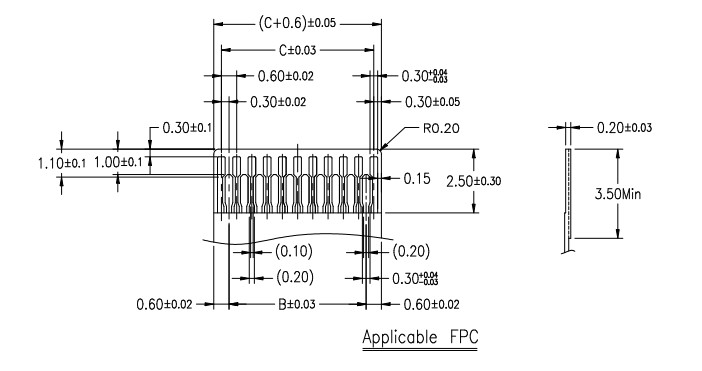

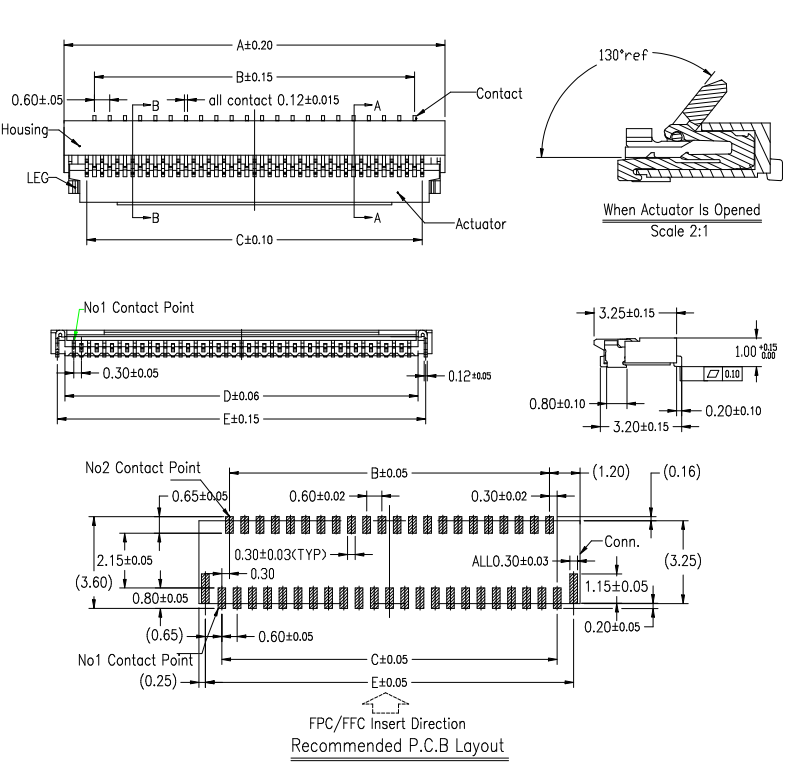

Drawing

Feature

FPC has the characteristics of high wiring density, light weight, thin thickness and good bendability.

The difference between FPC connector and FFC connector

FPC is a flexible circuit board with different single-sided, double-sided and multi-layer structures obtained by processing FCCL (flexible copper clad foil) by chemical etching. FFC is a flat copper foil sandwiched between upper and lower layers of insulating foil. The finished product is simpler and thicker.
The FFC connector is a flexible flat cable connector, and the FPC connector is a flexible circuit board connector. From the perspective of the manufacture of the two connectors, the way their lines are formed is different. The FPC performance test uses a high-current shrapnel microneedle module as the connecting electronic component, which has the function of conducting current and transmitting signals during the test.
