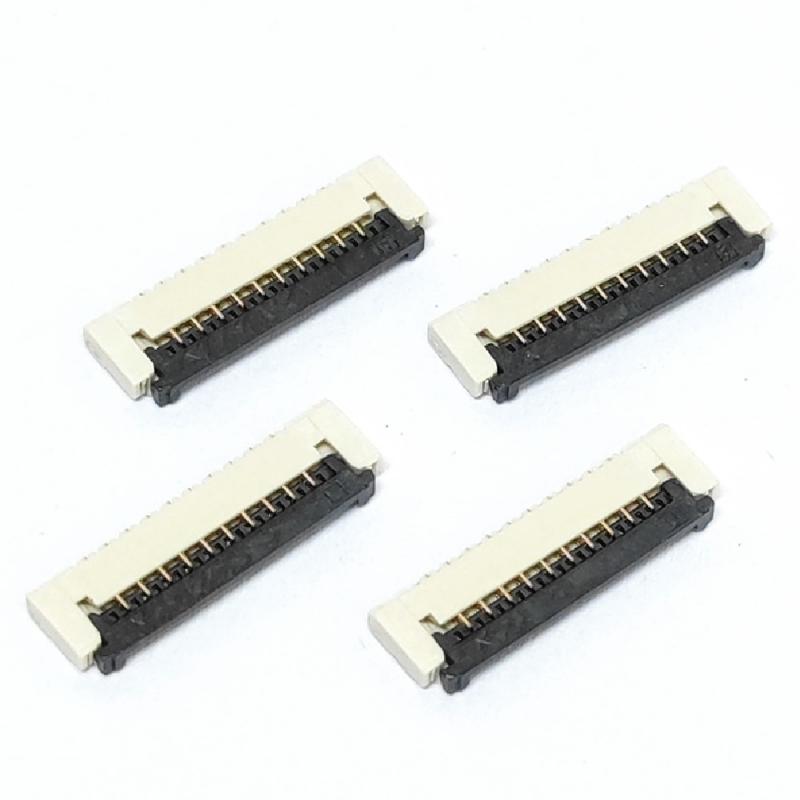

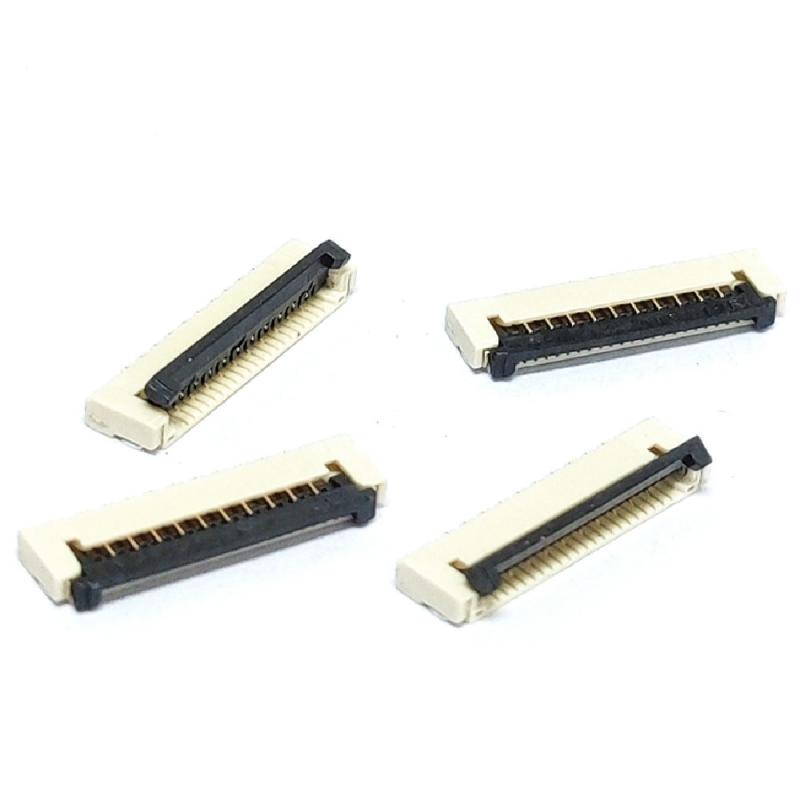

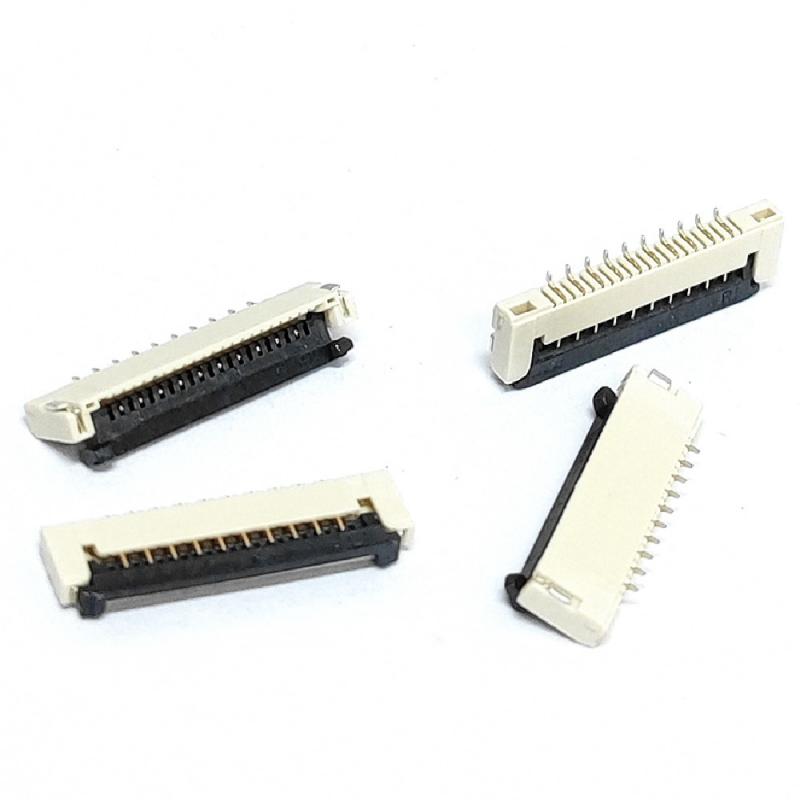

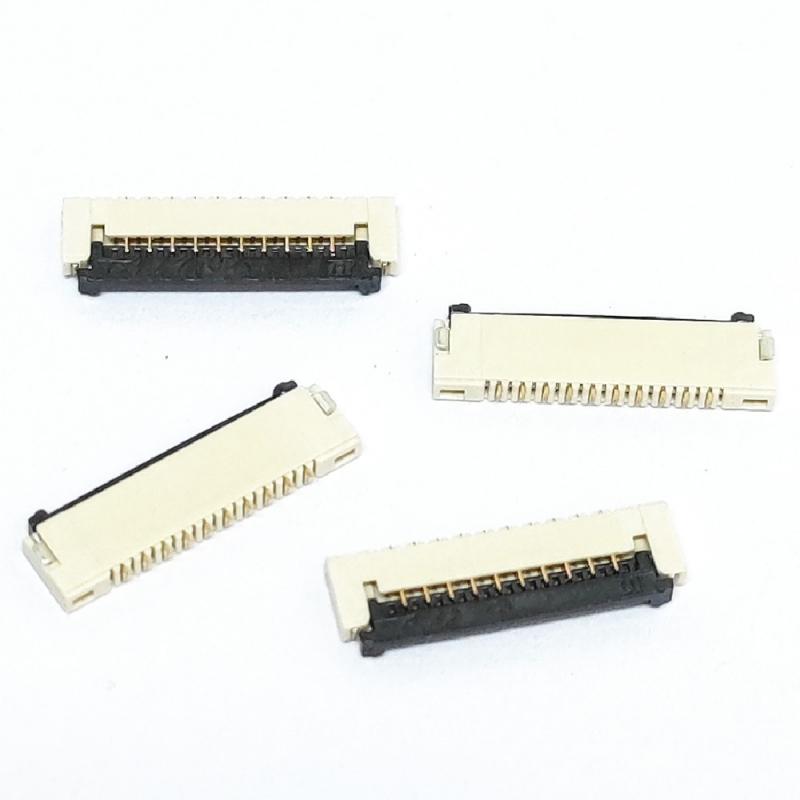

Gangyuan ZIF-style FPC connectors use an actuator that allows for a high number of mating cycles.
Brand:
GangyuanItem NO.:
GYFA1015-XXRD-GOrder(MOQ):
4000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and WhiteShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentLow contact horizontal down contact ultra thin fpc connector
fpc ffc connector
Parameter
fpc 10 pin connector
Number of contacts: 04~30
Plating: Gold flash over Nickel
Contact Resistance: ≤40mΩ
FPC Retention Force: Pos. x 0.15N Min
Terminal Retention Force: Pos. x 0.8N Min.

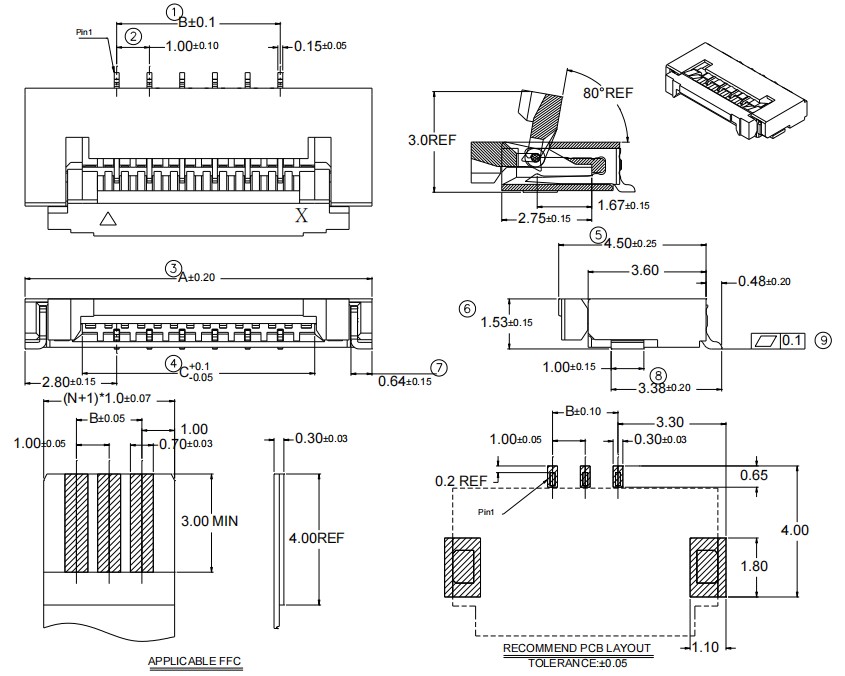

Drawing
Application
ZIF fpc connector
• Use actuators to secure flexible cables
• Less terminal wear
• Increased number of mating
• Increased retention
• Better suited for high vibration environments
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Two or more wire windings placed around a common magetic core is the physical structure of a transformer.
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
The extensive function of the connector is to rely on the connection of the cable (FPC or FFC) to conduct the signal between the two lines on the PCB.
FPC: Flexible Printed Circuit board, It uses soft materials and has good bending, folding and stretching properties.
The connector with double contact points can improve the directionality of the contact points of the cable assembly when the customer is in the research and development stage.
Flat Flexible Cable Connector with 0.5mm pitch. Orientation is side entry and surface mount, with a back flip lock actuator.
A type of connector intended to connect FPCs (Flexible Printed Circuits) and PCBs (Printed Circuit Boards). A method of connecting FPCs is directly inserting them into the connector. Connection with FFCs (Flexible Flat Cable) is also possible.
