Home Transformer & Connector SMT Right Angle FPC Connector

SMT Right Angle FPC Connector

There are another type that plating with mylar membrane.

  • Brand:

    Gangyuan
  • Item NO.:

    GYFA0510-XXRD-G
  • Order(MOQ):

    6500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Low Contact subminiature Flexible Printed Circuit Connector

FPC connector supplier


Parameter


Low profile fpc connector board

Ratings: 50VAC/DC 0.4A

Contact Resistance: ≤40mΩ

Insulation Resistance: ≥50MΩ

FPC Retention Force: Pos. x 0.15N Min.

Terminal Retention Force: Pos. x 0.8N Min.

Number of contacts: 04~40

Locking method: front cover

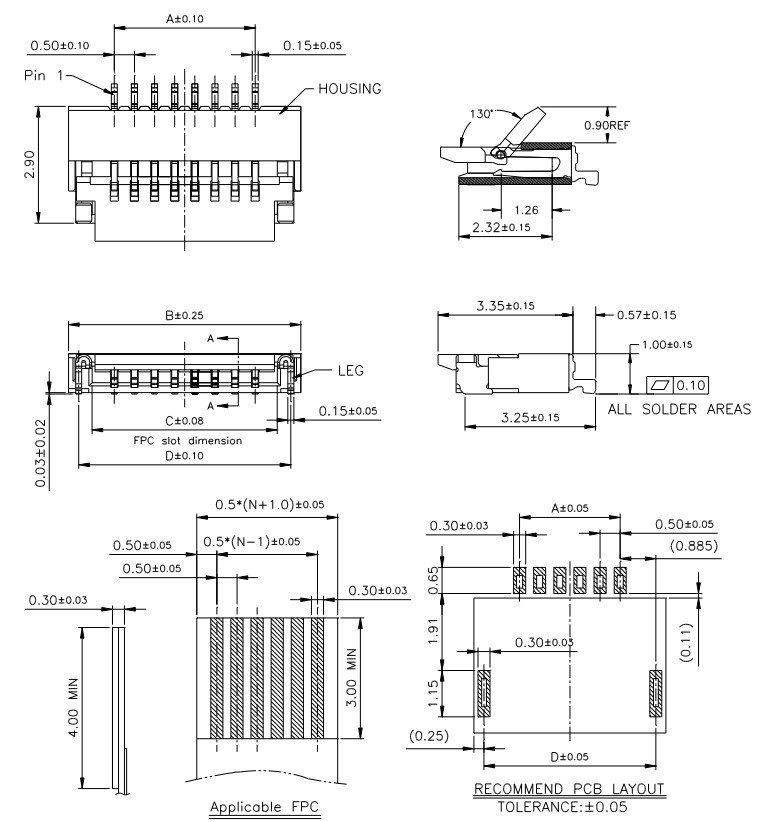

Drawing




Solderability


Dip soldering tail into Tin oven, temperature of Tin oven is 245℃±5℃. the test specimens shall be lasted 3sec.


Conditions for reflow



What is an FPC connector?


FPC (Flexible Printed Circuit board) refers to a flexible circuit board, which is a highly reliable flexible printed circuit board made of polyimide or polyester film as the base material.

The FPC connector is used to connect the LCD display to the drive circuit (PCB), mainly 0.5mm pitch products.
