Home Switch Tactile switch 06 Series tact switch latching on/off tact switch 12V

latching on/off tact switch 12V

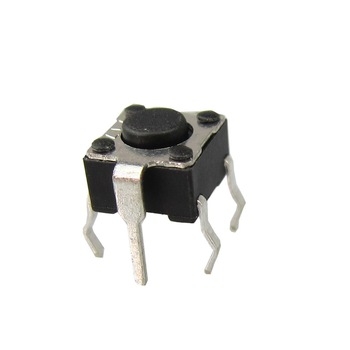

silent 2 pin 6X6 latching on/off tact switch 12V

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0621
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

silent 2 pin 6X6 latching on/off tact switch 12V



Product Description

Model Name:

4pin 6x6 smd tact switch

Model No.:

KAN0621 series (KAN0621-0431B)

Dimension:

6x6xH (4.3-18)mm

Operating force:

100gf/160gf/260gf

Life cycles:

100,000/200,000 Cycles

Waterproof:

IP67 grade

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm



Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:   CE,ROHS, REACH, ENEC,
 Features:  High quality, durable using life
