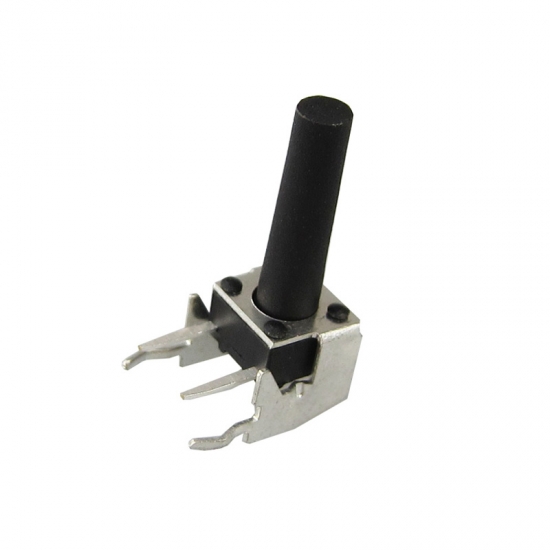

Gangyuan 2 pin Side horizontal Tact Switch with different Height KAN0635

KAN0635: DC 12v 50mA, 4 pin horizontal tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0635
  • Payment:

    T/T before shipment
  • Product Origin:

    ZheJiang China
  • Color:

    Black
  • Shipping Port:

    Ningbo, Shenzhen
  • Min Order:

    1000
  • Lead Time:

    7-10 working days depends on actual quan
Product Details

Gangyuan 2 pin Side horizontal Tact Switch with different Height KAN0635


Basic Information

Temperature

-20℃to+70℃

Rating

50mA.12V DC

Insulation resistance

100mΩ min.100V DC

Dielectric strength

250V AC for 1 min

Contact resistance

100mΩ max

Travel

0.25±0.1mm

Height

3.15mm-19.85mm

Operating Force

100gf/160gf/260gf

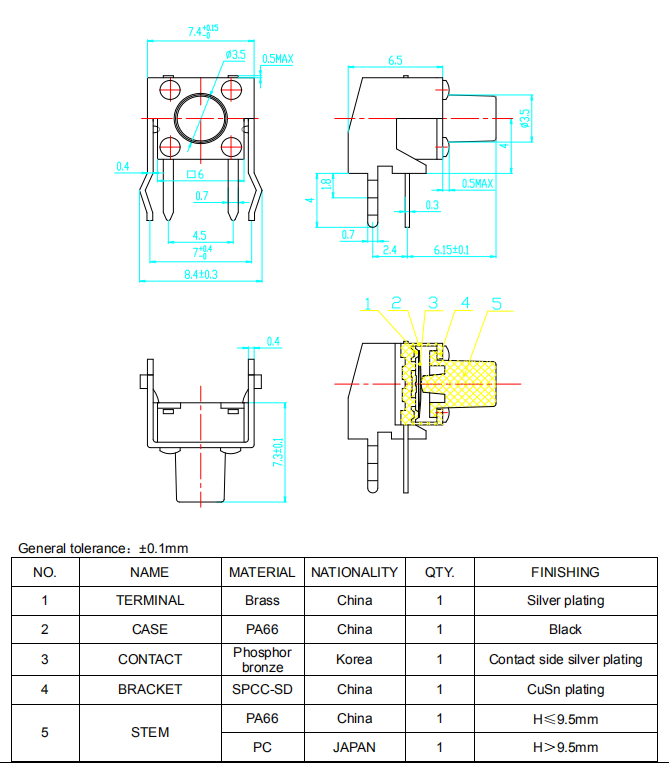

Outline Drawing



Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.

2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
