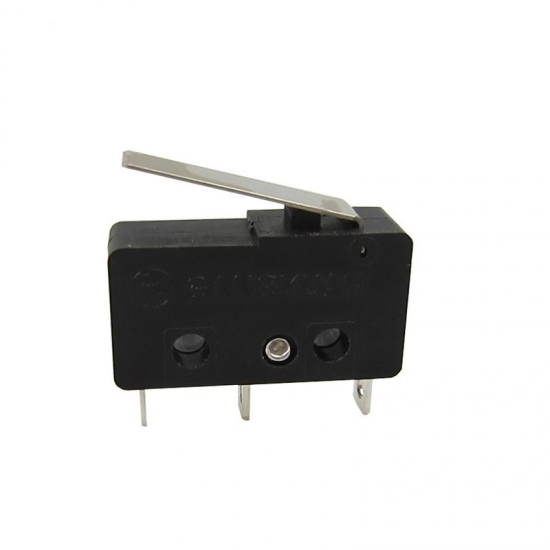

electric 3 pin lever micro switch

2A 3A 5A 25VAC push button mini switches electric 3 pin lever micro switch

  • Brand:

    Gangyuan
  • Item No.:

    G15-10SM
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

2A 3A 5A 25VAC push button mini switches electric 3 pin lever micro switch

Basic Information

Product name

Micro switch

Model Number

G15-10SM

Voltage Rating

125/250V AC

Operating Temperature Range

-25℃~+125℃

Operating Relative Humidity

≤85%

Contact Resistance

≤100mΩ

Current Rating

10A

Insulation Resistance

≥100MΩ

Dielectric Withstanding Voltage

1000V AC 1Min

Operation life

 50000 Cycles


Dimension

micro switch manufacturers.jpgmicro switch actuator.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
