Factory Momentary 3 Terminals Button Actuator Micro Switch 12V


micro switch manufacturers of china,surface mount micro switch

  • Item No.:

    G15-10PM-150
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details

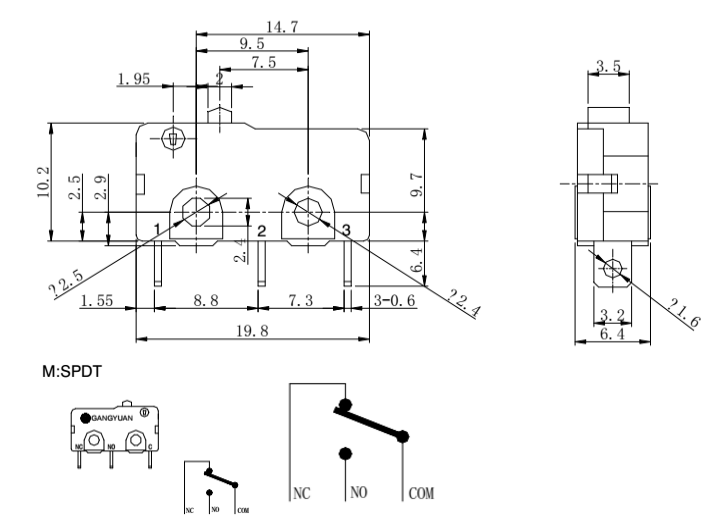

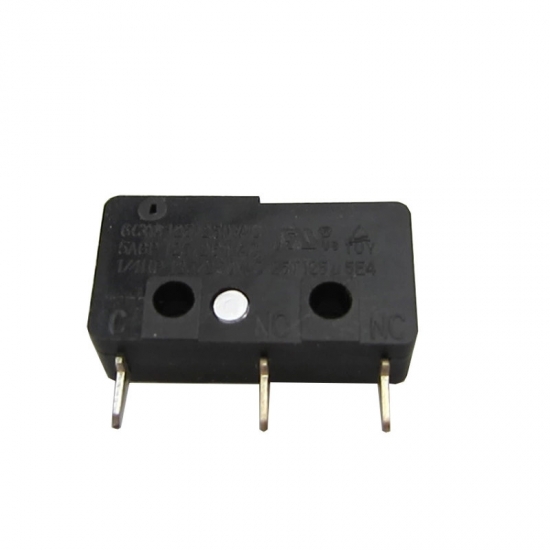

Product item:Factory Momentary 3 Terminals Button Actuator Micro Switch 12V


Feature:

  • Variety actuator styles
  • Through hole
  • Quick connect
  • UL certificate


General characteristic:

Rating

 6A,125/250V AC

Operation Temperature

-25℃±85℃

Electrical life

50,000 cycles

Mechanical life

100,000 cycles

Operation force

150±50gf(MAX)

Contact resistance

≤100mΩ MAX




Advantages:

1)Self-cleaning structure of contact;

2)Adaptation to low speed operation;

3)To adapt to a varity of installation;

4)micro gap structure and 3mm gap structure;

5)a variety of long-term use of the temperature range available.
