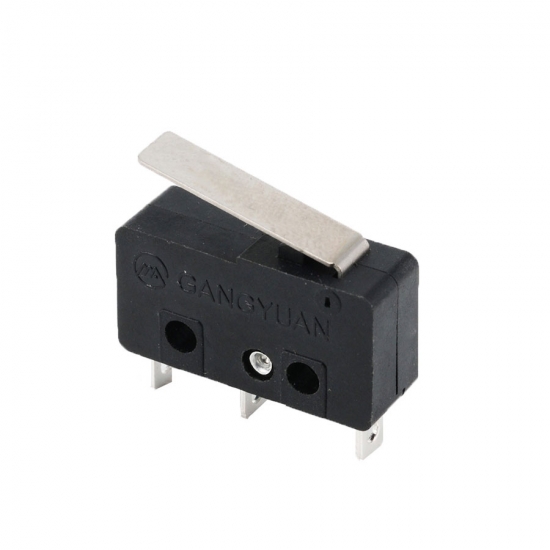

Micro switch ultra subminiature hinge lever SPDT


Sub-miniature in size, the G15 Series snap-action switch is UL certified.

  • Item No.:

    G15-10SM01-40
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:Micro switch ultra subminiature hinge lever SPDT


Feature:

  • Variety actuator styles
  • Through hole
  • Quick connect
  • UL certificate


General characteristic:

Rating

 10A,125/250V AC

Soldering temperature

260℃±5℃ 5s

Electrical life

10,000 cycles

Mechanical life

100,000 cycles

Operation force

40±20gf(MAX)

Contact resistance

≤100mΩ MAX

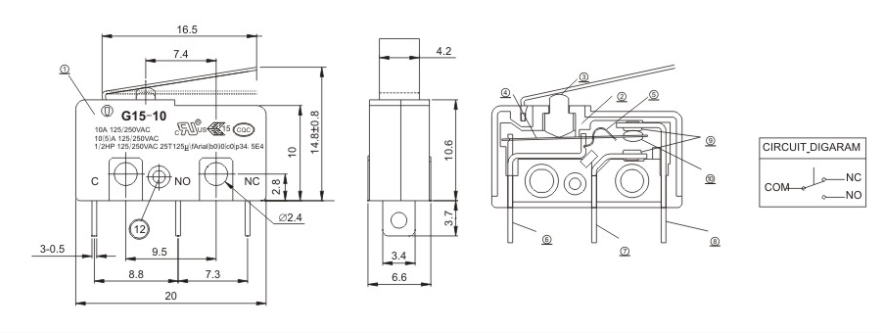

Dimension:



Application
