Home Switch Micro switch G15 Series SPDT t125 Mini Electronic Micro Switch

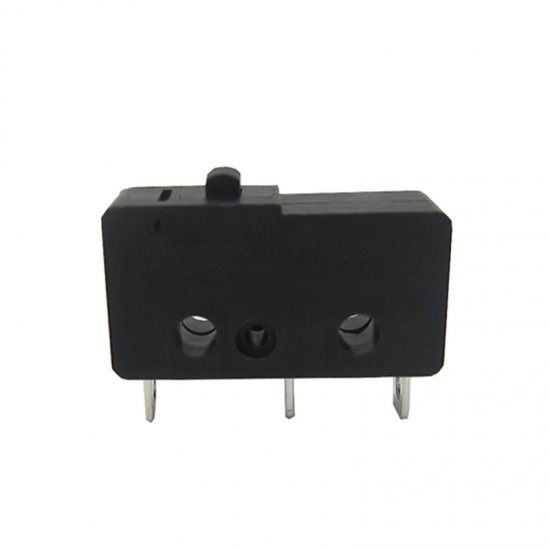

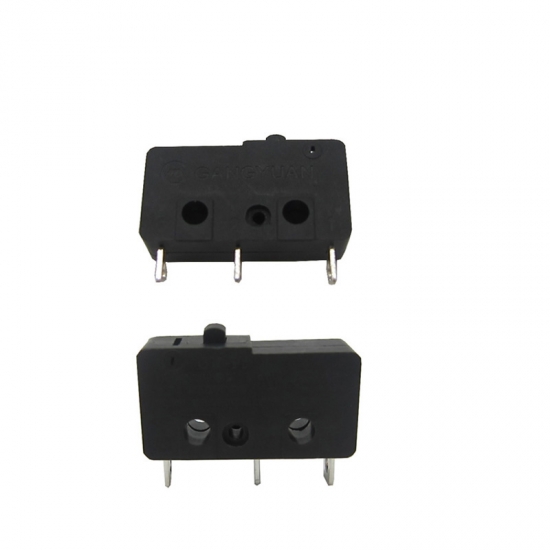

SPDT t125 Mini Electronic Micro Switch

G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06
  • Order(MOQ):

    500
  • Payment:

    T/T, Paypal before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days
  • Product Detail

SPDT t125 Mini Electronic Micro Switch


Basic Information

P/N G15-06
Rating 6A, 125/250VAC
Opearting Force
150±50gf
Operating Temp
-25℃~+125℃
Life
50000cycles
Protection Level
high level

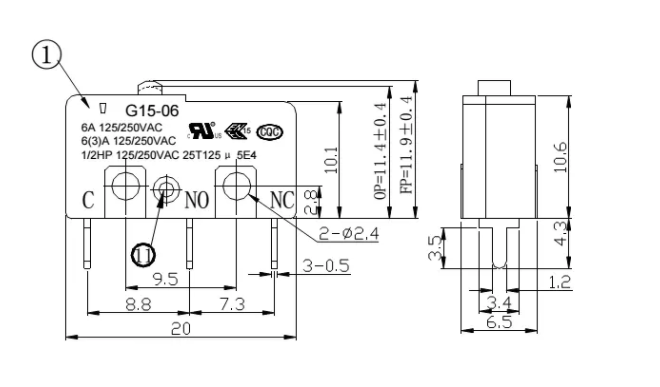

Dimension



Packing & Delivery

Packing: 120/box, 2400boxes/carton, carton size: 45*35*28cm NW: 22KG GW: 24KG

Shipping:
 By sea, by air, Express DHL, UPS, FEDEX etc. Delivery time: around 7~10 working days.

Payment:
T/T, D/P, L/C, Paypal, Cash etc. Please kindly inform us when you transfer the payment, will prepare order once get it.



Our Service

1. Excellent R&D team,your new design of tactile switch is welcome.

2.When the quantity was enough,we can refund the mould fee.

3.Available switch samples is free for checking the quality, samples date 3 working days.



Application

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
