Home Switch Micro switch G15 Series Mini Micro Switch 5A 125/250VAC

Mini Micro Switch 5A 125/250VAC

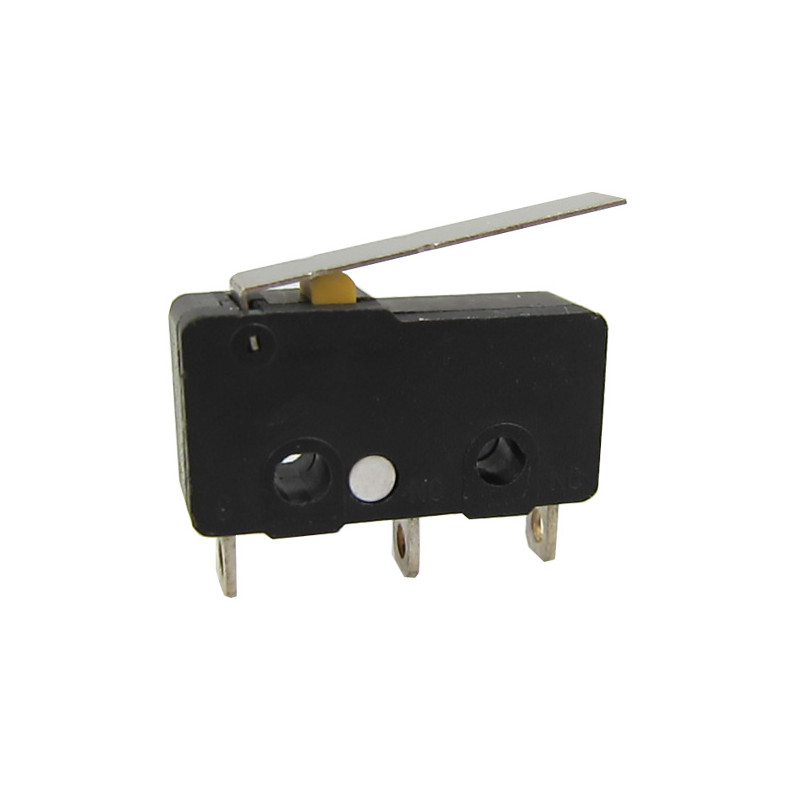

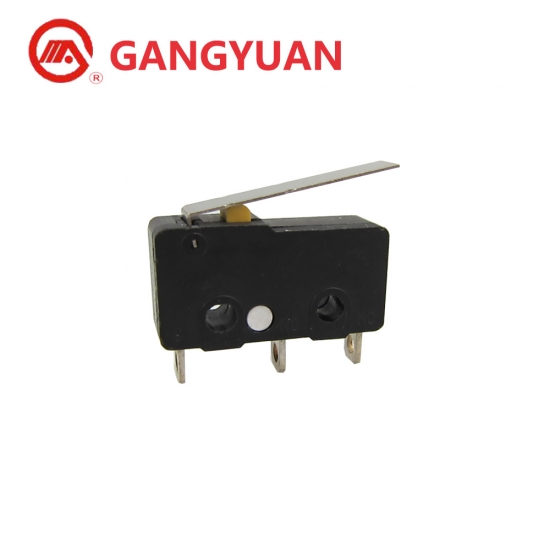

Long Straight Lever Mini Micro Switch 5A 125/250VAC


  • Brand:

    Gangyuan
  • Item NO.:

    KW2-4-03N-40-2
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


Long Straight Lever Mini Micro Switch 5A 125/250VAC




Basic Information

smd micro switch
Life cycles 1,000,000Cycles
Rating12VDC AC 125V 5A/AC 250V 3A
Type SMD
Travel 0.25±0.1mm
Operating force 30±15gf
Operating Temperature
-25℃+85℃
Dimension 19.8mmx6mm
Certificate ROHS SGS ISO9001/14001

Dimension

micro switch omron.jpg

micro switch wikipedia.jpgomron micro switch.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
