8 Position DIP Switch

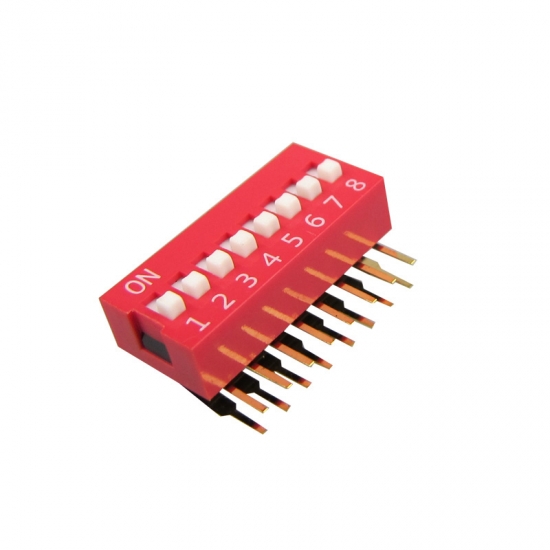

High Quality DA-08-V 2.54mm 8 Position DIP Switch

  • Brand:

    Gangyuan
  • Item NO.:

    DA-08-V
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

High Quality DA-08-V 2.54mm 8 Position DIP Switch

Non-Switching Rating
100mA 50VDC
Switch Rating
25mA 24VDC
Circuit
Single Pole Single Throw
Contact Resistance
50mA max at initial
Operating Temp.
-20℃+ 70℃
Operating force
≤9.8N
Mechanical life
2,000 operation per switch
Stroke
2.0mm

switch drawing

part-number code
