6x6mm tact switch 4pin smd micro tact switch

12v micro tact switch with 6x6x18mm(4.3-10)mm use for car entertainment/navigation

  • Brand:

    Gangyuan
  • Item No.:

    KAN0641-1801B
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Gangyuan 6x6 tact switch 4pin smd micro tact switch



Product Description:

Model Name:

4pin smd micro tact switch,

Model No.:

KAN0641-1801B

Dimension:

6x6xH 18mm (4.3-10)MM

Operating force:

100gf/160gf/260gf

Life cycles:

60,000/80,000/100.000 cycles

Return force: 0.2N/0.4N/0.6N min

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm

Passed test:



Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of

temperature /Moisture resistance /Sulfuration Resistance etc

 Certifications:  CE,ROHS, REACH, ENEC,
Features:

High quality, durable using life





Dimension:

KAN0641 SIZE-1.pngKAN0641 SERIES SIZE.png

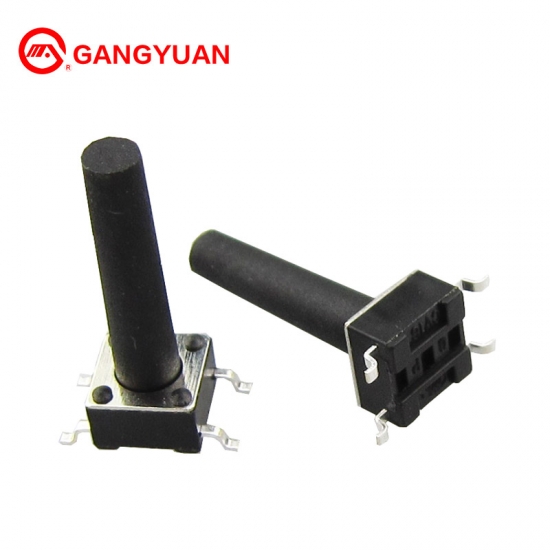

Products photos:
