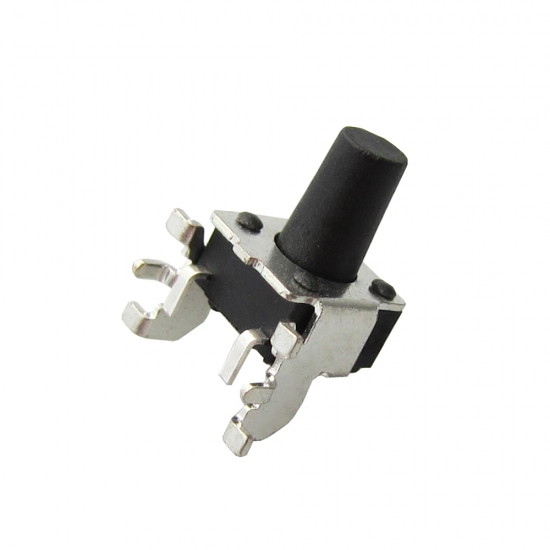

Home Switch Tactile switch 06 Series tact switch 6x6mm automotive tact switch

6x6mm automotive tact switch

6x6mm automotive switch rgb tactile tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0671
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

6x6mm automotive switch rgb tactile tact switch



Product Description:

Model Name:

Smd waterproof switch

Model No.:

KAN0671

Dimension:

 6x6xH

Operating force:

variety

Life cycles:

100,000/200,000/500,000 times

DC rating:

12V DC, 50mA (effective value)

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

500m Ω max.

Full travel :

0.25±0.1mm
