Home Switch Micro switch G15 Series 25T125 5E4 6A Micro Switch

25T125 5E4 6A Micro Switch

Ultra-small micro switch: different performances with high precision and high life in function.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06DM-150-1238
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

19.8*10.7*6.5mm 125V/250VAC SPDT Micro Switch

micro switch manufacturer


Parameter


subminiature micro switch

1.Operating Temperature Range: -40℃~+85℃
   Operating Relative Humidity: ≤85%
2.Voltage Rating: 125V/250V AC
3.Current Rating: 6A
4.Contact Resistance: ≤100mΩ
5.Insulation Resistance: ≥100MΩ
6.Dielectric Withstanding Voltage: 1000V AC 1Min
7.Soldering Temperature: 260±5℃ 5s
8.Operating Force: 150±50gf

9.Life Time(mating cycles): 10000 Cycles

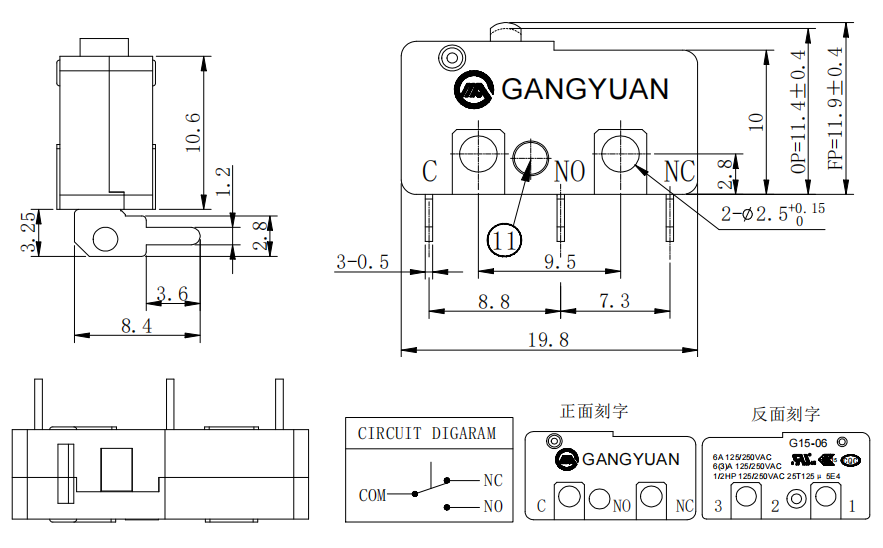

Drawing



Application for Micro Switch


  • Push buttons for alarms and call pointsTurning devices on surveillance cameras
  • Triggers to alert if a device is dismounted
  • HVAC applications
  • Access control panels
  • Elevator buttons and door locks
  • Timer controls
  • Washing machine buttons, door locks and water level detection
  • Air conditioning units
  • Refrigerators - ice and water dispensers
  • Rice cookers and microwave ovens - door locks and buttons.


why choose us?


1.Gangyuan's micro switches include UL, REACH, CQC and other certifications, and the quality is guaranteed

2.Gangyuan professional team is on hand toprovide assistance and quick response to drawing requests, price quotes, andaccess to an adequate sample program thatallows engineers to test and qualify switchesfor their end product applications.

3. We strive to provide customers with 100% satisfaction.
