Home Switch Micro switch G15 Series Pcb pin micro switch with lever

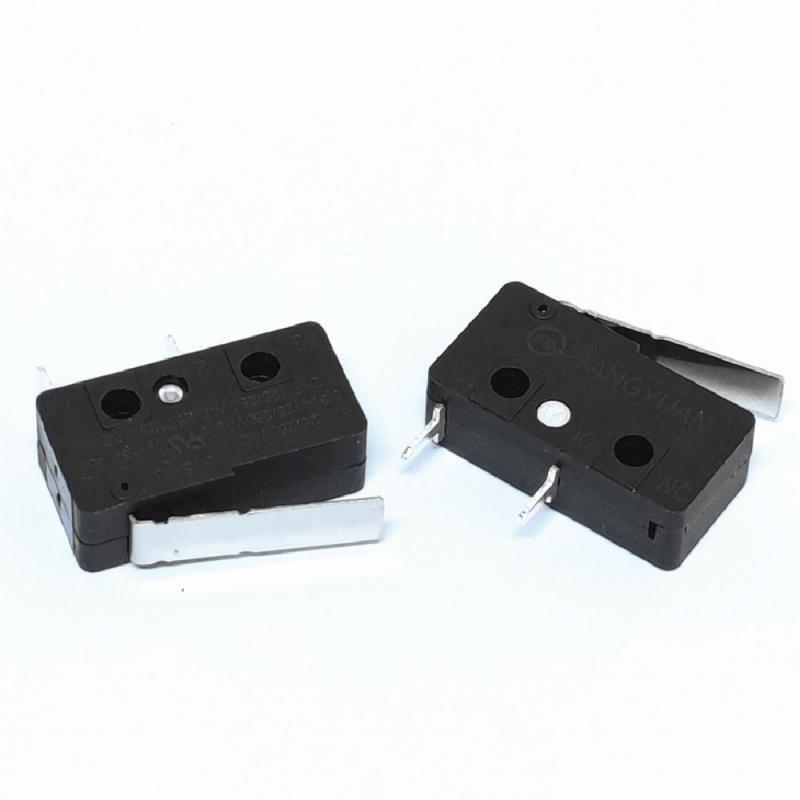

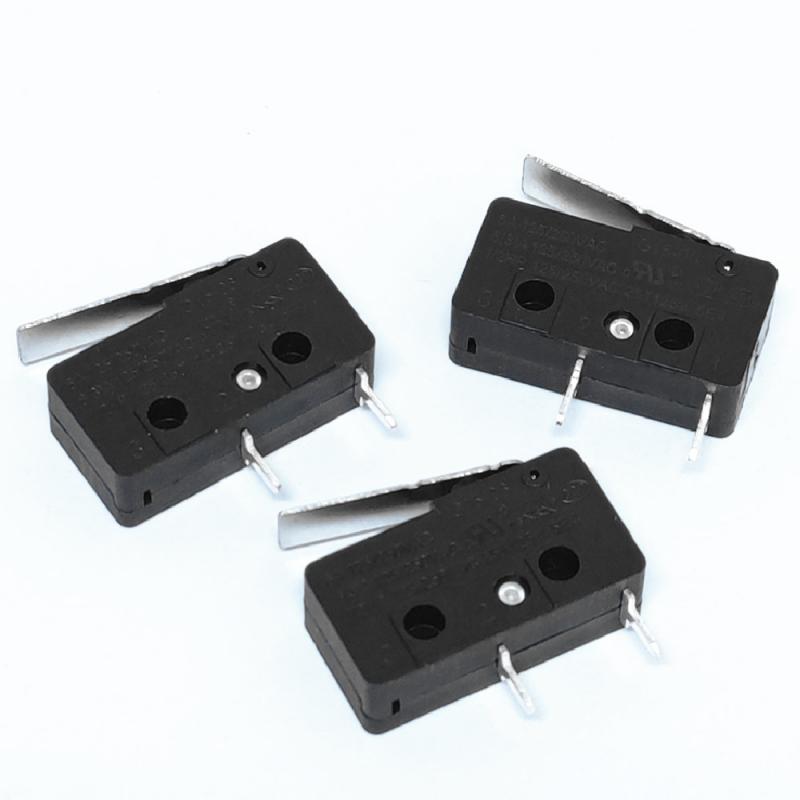

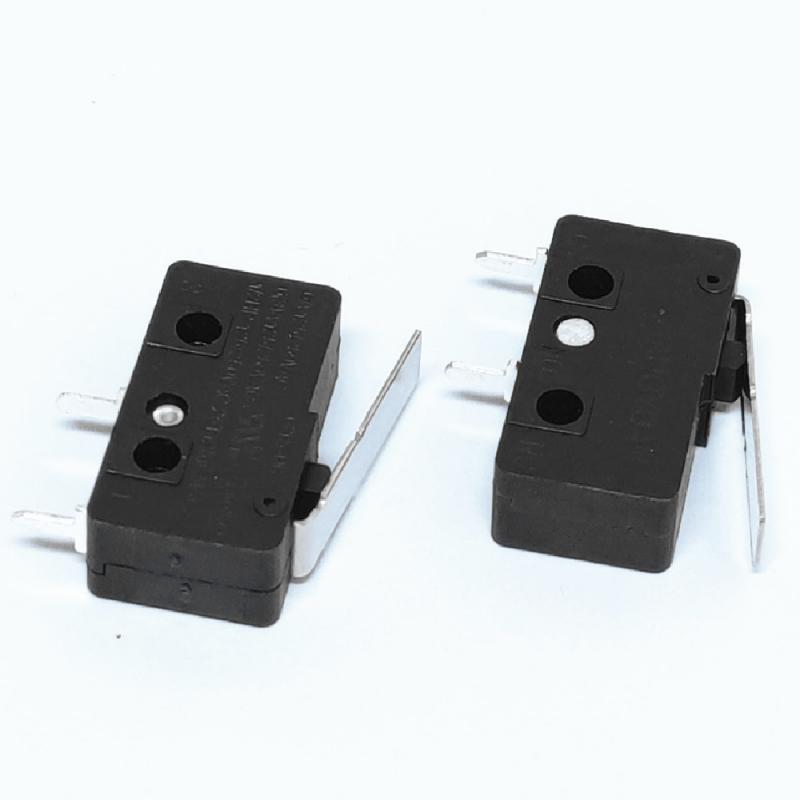

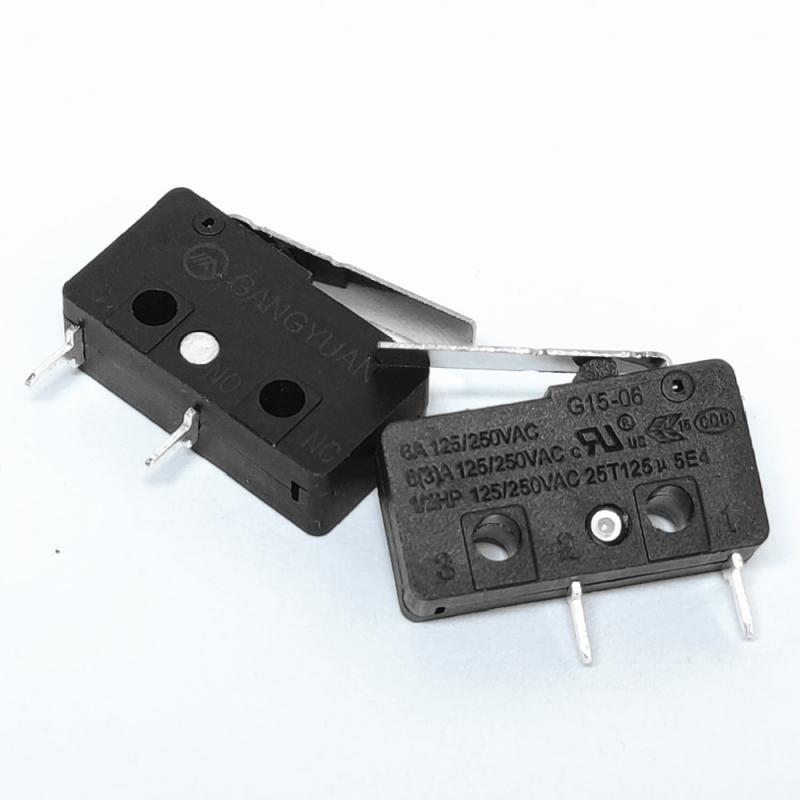

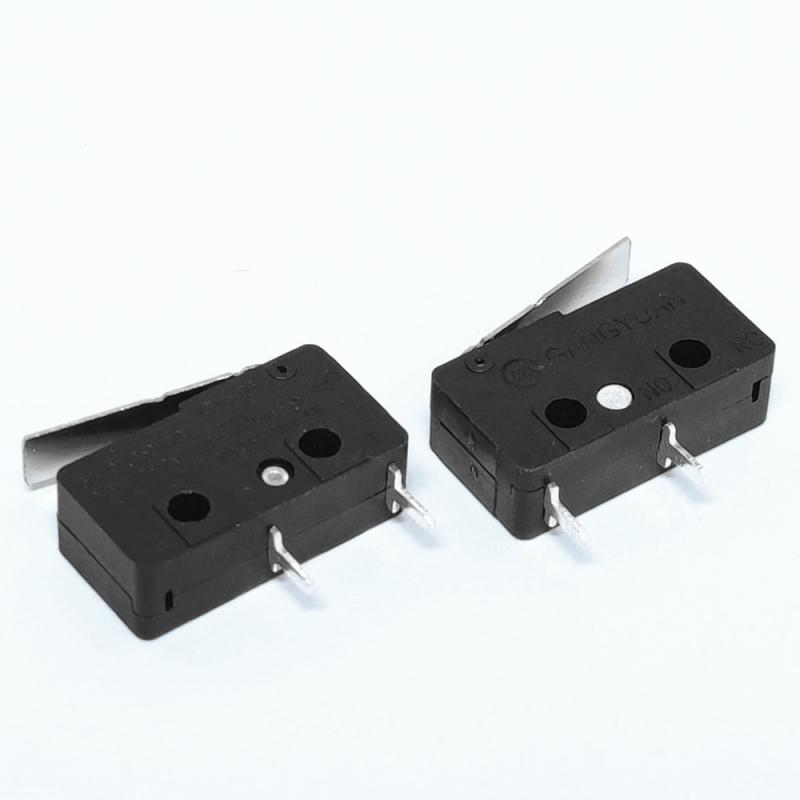

Pcb pin micro switch with lever

Micro switches are switches that need a very little amount of force (push/pressure) to operate at a rapid speed.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-06PN01-40-1236
  • Order(MOQ):

    500pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

5e4 pcb mount 2 pin switch no micro switch


 Specification

Operating Temperature Range: -25℃~+85℃

Operating Relative Humidity: ≤85%

Voltage Rating: 125/250V AC

Current Rating: 6A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1000V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 40±20gf

Life Time(mating cycles): 10000 Cycles

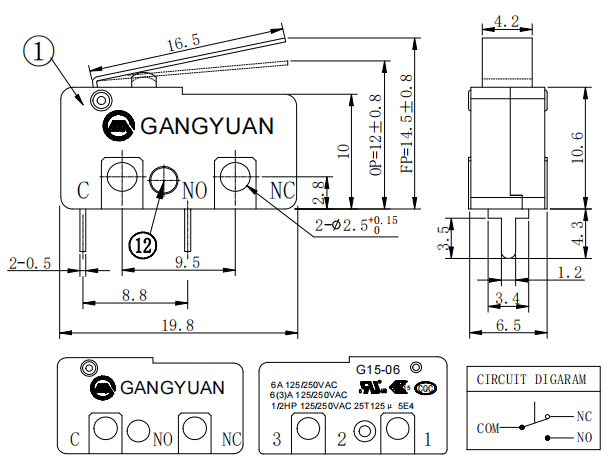

 Micro switch circuit


 Application of micro switch


Micro Switches are used for many different applications within building, automation and security. Some examples of these applications are;

Push buttons for alarms and call points – micro switches are used as the buttons within fire alarms, emergency stop controls, emergency

door releases.
