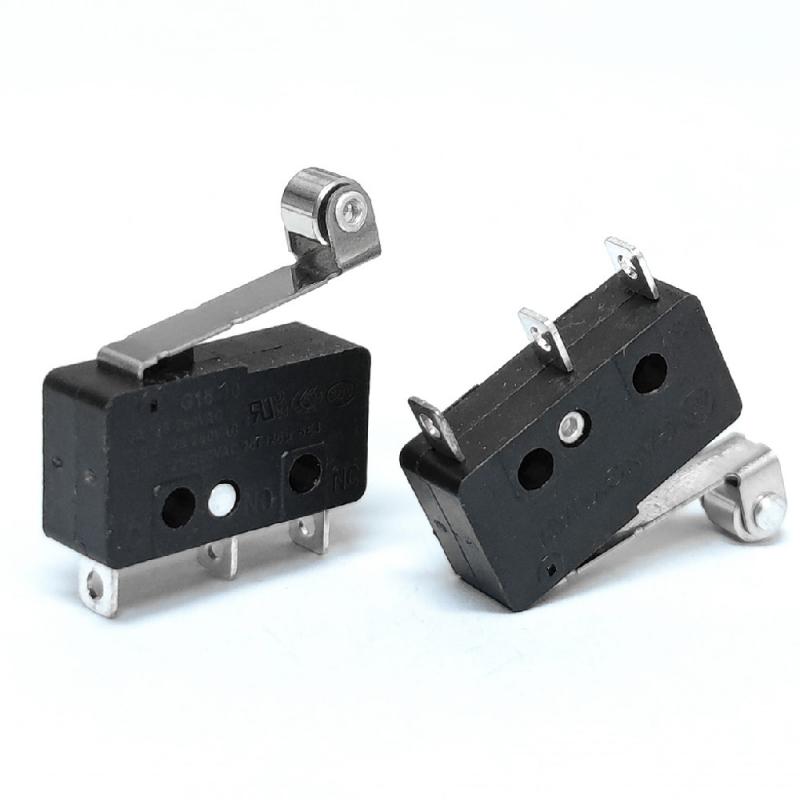

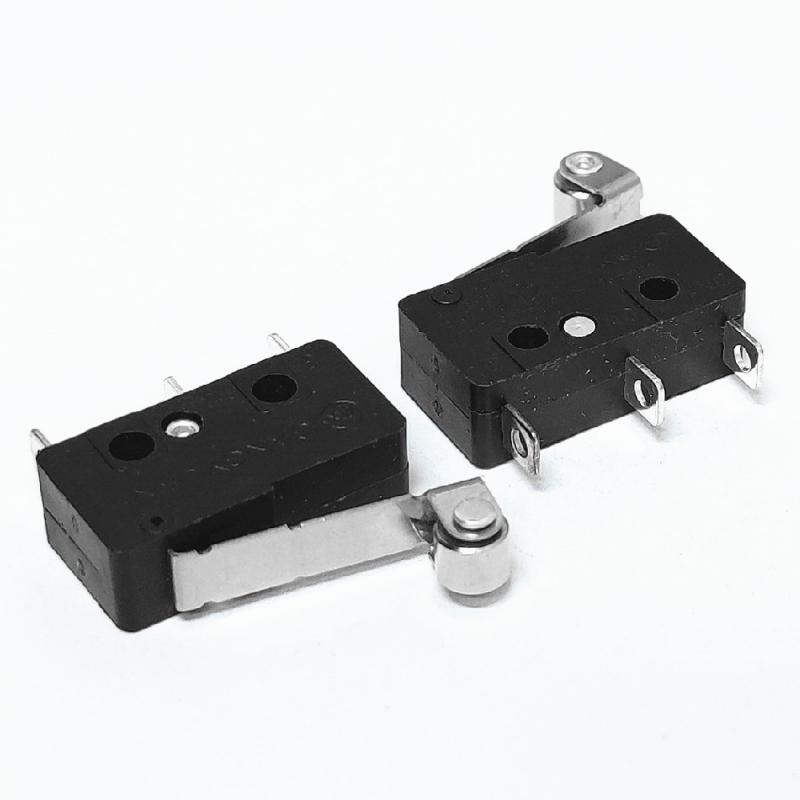

10a 250vac micro switch manufacturers

A micro switch, also known as miniature snap action switch, is a type of momentary contact switch used widely in automotive, industrial and medical instruments as sensor.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-10SM-05-40-39
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

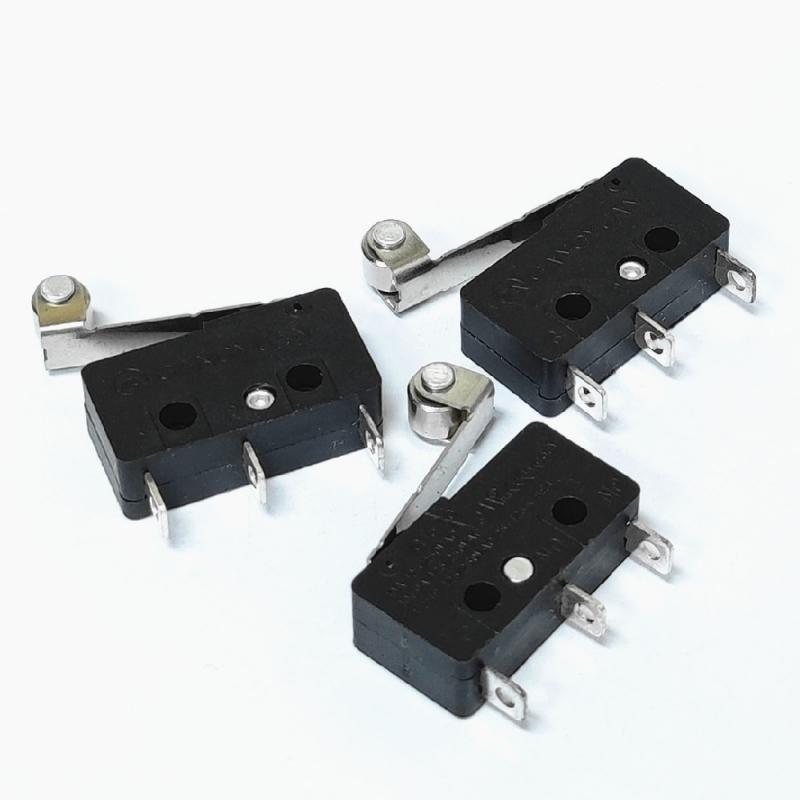

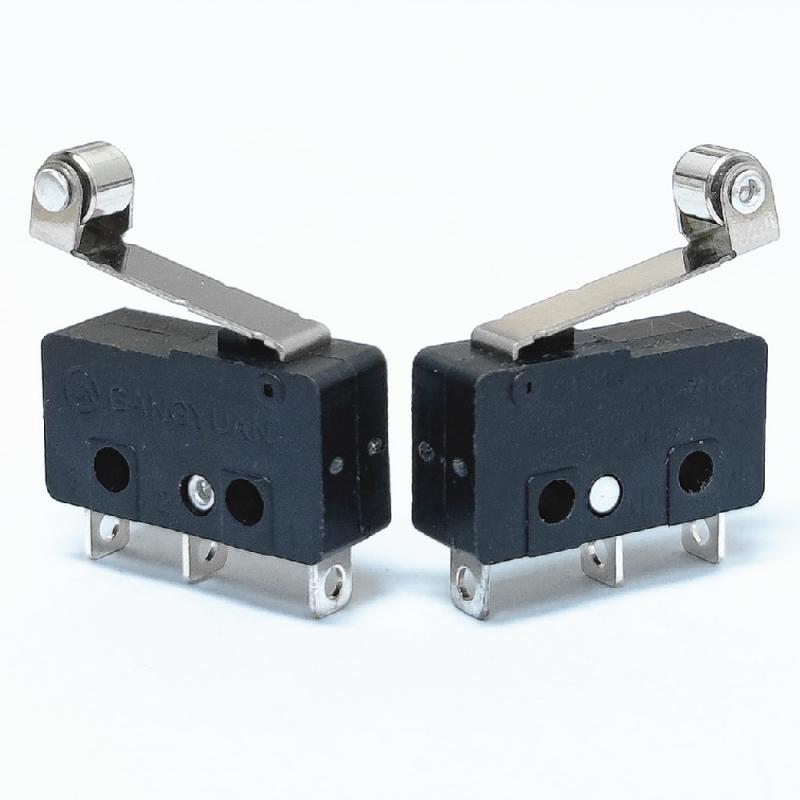

3-pin mini limit switch long roller lever micro switch


 Specifications

Voltage Rating: 125/250V AC

Current Rating: 10A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1000V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 40±20gf

Life Time(mating cycles): 10000 Cycles

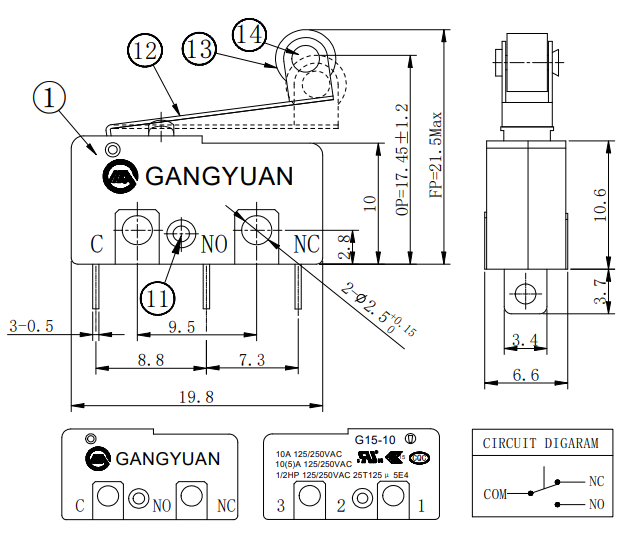

 Drawing


 What is the difference between micro switch and limit switch ?

A microswitch has 2 limit switches operating together and sharing a common terminal. One limit switch is normally open

and the other is normally closed. To be technically correct, the switch configuration is Single Pole Double Throw, or commonly

referred to as SPDT.


 Micro switch circuit diagram selection

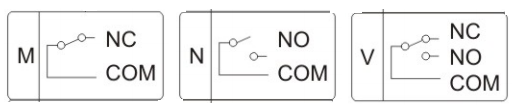

Micro switch symbol

      SPDT Micro Switch         SPST-NO Micro Switch       SPST-NC Micro Switch



Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

Related Products
miniature micro switch
Micro switch ultra subminiature hinge lever SPDT

Sub-miniature in size, the G15 Series snap-action switch is UL certified.

3 pin micro switch
Factory Momentary 3 Terminals Button Actuator Micro Switch 12V

micro switch manufacturers of china,surface mount micro switch

3Pin Lever Micro Switch
T85/125 6A 125V 3Pin Lever Micro Switch

G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.

Electronic Micro Switch
SPDT t125 Mini Electronic Micro Switch

G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.

 Three Pins Micro Switch
Miniature On Off Micro Switch Three Pins Micro Switch

G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.

3 Position Micro Switch
Lever Mini Micro 3 Position Micro Switch

G15-10SM08: 10A 250V, high level, 10,000cycles mini micro switch.

micro switch
3 Pin Roller Hinge Lever Micro Switch

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.

Micro Switch
5e4, 25t125, 3 Pin Light Weight Micro Switch with lever

GANGYUAN 5e4, 25t125, 3 Pin  Light Weight  Micro Switch with lever
