250V Micro Switches

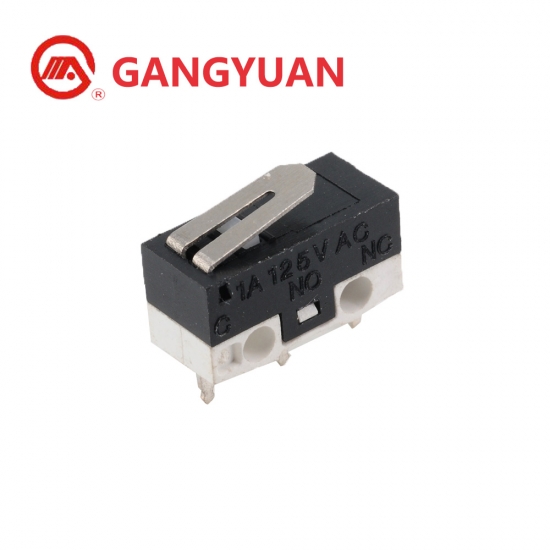

3 pin soft touch dicgu micro switch 3A 5A 125V 250V Micro Switches

  • Brand:

    Gangyuan
  • Item No.:

    DM1-07PW-30-3
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1
  • Lead Time:

    3 working days for payment
Product Details

3 pin soft touch dicgu micro switch 3A 5A 125V 250V Micro Switches

Basic Information

Item No.
DM1-07PW-30-3
Dimension
12.8mmx5.8mm
Contact resistance
≤100mΩ
Insulation resistance
 AC 500V 1Minute
Operating temperature
-25℃+85℃
Operating force
80±15gf
Life expectancy
500,000Cycles
Rating
AC 125V 1A/AC 125V 3A

Dimension

 pcb micro switch.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
