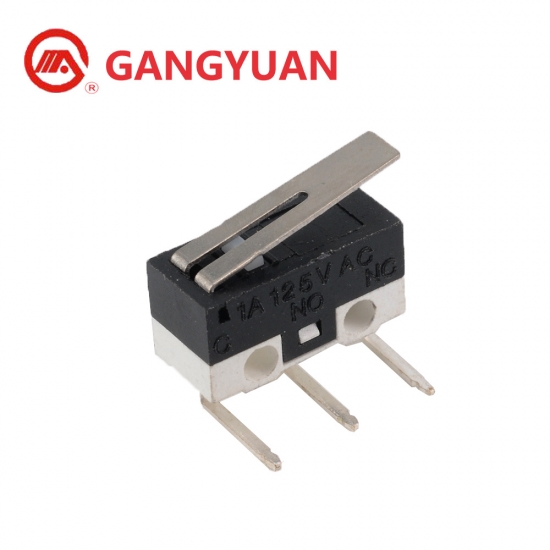

Gangyuan snap action microSwitch kw7 Micro Switch on off 125V 5A
Brand:
GangyuanItem NO.:
DMI-02CWL-30-3Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X
Gangyuan snap action microSwitch kw7 Micro Switch on off 125V 5A
Basic Information
Product name
Micro switch
Operating temperature
-25℃~85℃
Operating Relative Humidity
≤85℃
Dielectric withstanding Voltage
1500V AC 1Min
Voltage Rating
125/250V AC
Current Rating
10A
Operation force
40±20gf
Soldering Temerature
260±5℃.5S
Circuit Code
SPDT
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
Waterproof IP67 SMD auto micro switchNext:
250V Micro SwitchesIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
It is widely used in electronic products,instrument measuring appliance and domestic electric appliances and so on.
12.8mm*5.8mm left and right terminal connect Micro switch.
12.8mm*5.8mm long terminal connect Micro switch micro switch.
Product model: DMI-02CWL-30-3 Specification: 12.8mm*5.8mm Operating force: 80±15gf -180±15gf Features: left and right feet MOQ: 1000
DMI-02PWL8.5--3: 1A 125VAC, 80±150gf, 5e4 mini micro switch.
G10-3-01S: 125/250V AC 4A, 200±15gf, 50,000cycles mini micro switch.
DM1-02CWL-30-3: 3 Pin Long Roller Action Micro Switch.
12.8mm*5.8mm Long Terminal Connect 3 pin Micro Switch
