waterproof microminiature tact switch for smt

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment.

Brand:
Gangyuan
Item NO.:
KAN6242C-180BH
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Product Detail

waterproof tact switch smd 2pin right angle side switch

smd touch switch

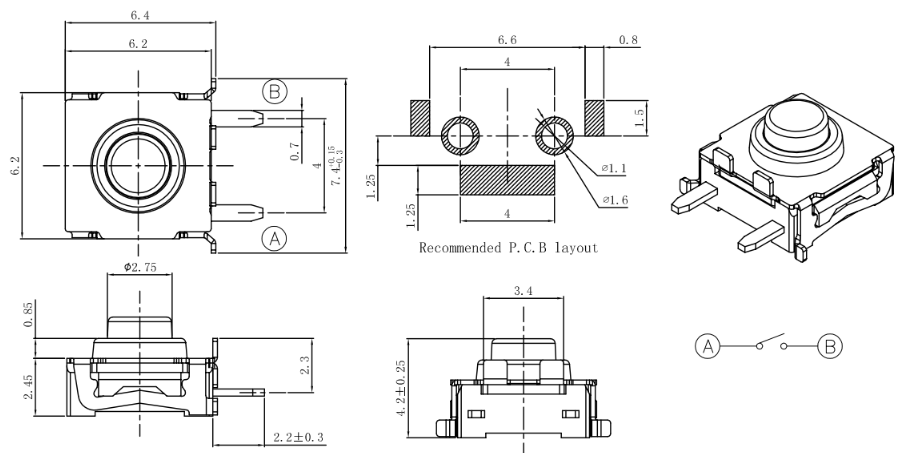

Tact swicth datasheet

Ratings: DC 12V 50mA
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 180±50 gf
Level: Waterproof
Life: 100000 cycles
Travel: 0.3±0.15mm

Tactile switch circuit

How does a tact switch work ?

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section.

The switch is used to supply input signal to actuate a device or equipment.

What does a tactile switch feel like ?

Tactile switches have a small tactile bump that provides resistance which can be felt at the point of key actuation.

The switch itself is practically inaudible, omitting the click sound present in clicky switches.
