Silicon stem waterproof tact switch

There are different heights for customers to choose.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0642S-0501C1
  • Order(MOQ):

    5000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and White
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

IP68 level DC12V 50mA surface mount tact switch

Black tact switch momentary tactile switch


Parameters


Normally open tact switch

Contact Resistance: 100mΩ Max

Insulation Resistance: 100mΩ Min

Practical Temperature Range: -25℃~+70℃

Life: ≥100,000 cycles

Operating Force: 250±30gf

Travel: 0.25±0.1mm

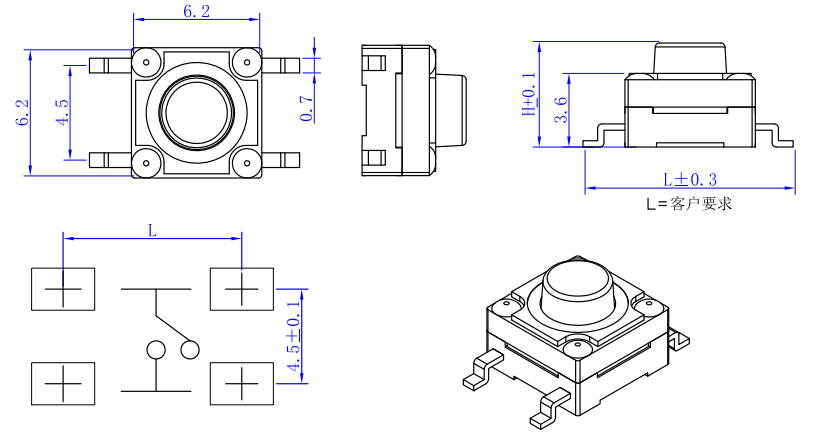

Drawing



Height Choices


H(mm) 4.3 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0
H(mm) 8.5 9.0 9.5 10 10.5 11 11.5 12 12.5
H(mm) 13 14 15 16 17 18 19 20 21


How to choose waterproof tact switch


1. Material selection for waterproof tact switches-

Strong and durable anti-corrosion and waterproof silicone pad material.

2. Structure Design of Waterproof Tact Switch-

Successful completion of the use effect and reasonable material and space savings.

3. The use of the waterproof tact switch-

Sensitive response, the shorter the time, the better the performance.

4. Daily maintenance conditions of waterproof tact switches-

Sophisticated design with waterproof and dustproof materials for easy care.
