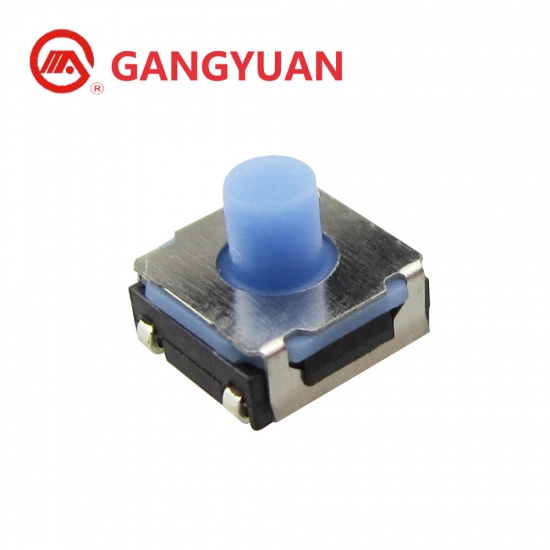

SMD Tact Switch KAN6247

6.2mm Waterproof Square Type Middle-travel SMD Tact Switch KAN6247

  • Brand:

    Gangyuan
  • Item No.:

    KAN6247-0514M1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver and blue
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

6.2mm Waterproof Square Type Middle-travel SMD Tact Switch KAN6247

P/N
KAN6247-0340C1
Dimension
6.2x6.2xHmm(H=3.1/3.4/5.1mm)
Operating force
200gf ± 70 gf
Life time
100,000cycles
Rating
12V DC, 50mA
Travel
0.30±0.15mm


Specifications
Contact resistance
≤100mΩ
Heat resistance
80±2℃, 96h
Insulation Resistance
≥100MΩ
Moisture resistance
96h
Dielectric voltage proof
250V AC(50Hz/60Hz)/1min
Sulfuration resistance
96h
Resistance to low temperature
-30±2℃, 96h
Salt Mist
12h±1h
