Home Socket Waterproof Connector Terminal Usb

Waterproof Connector Terminal Usb

Panel Mount Waterproof Connector Terminal Usb Connector Mini switch

  • Brand:

    Gangyuan
  • Item NO.:

    MB-0541
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail


Panel Mount Waterproof Connector Terminal Usb Connector Mini switch



Basic Information

usb c to dc jack cable 15v 3a.jpg

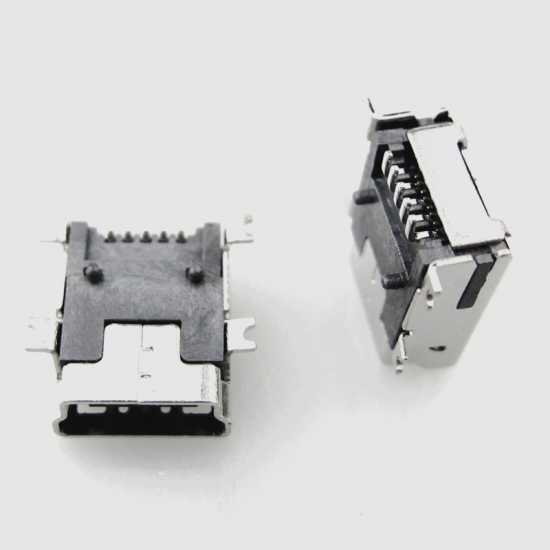

MB-0541- SMD Female USB connector

Operation force: 3.0kgf
Shell: Nickel plating
Contact Resistance:≤50 million
Voltage Withstand: AC500V(50Hz)/min
Contact : Copper alloy  C2068
Surface mount(SMT)
Insulation resistance: ≥100M EGA Ohms
Internal switch

Dimension

 usb mini jack.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
