Home Socket SMT 2.5 stereo female socket SMT type connectors

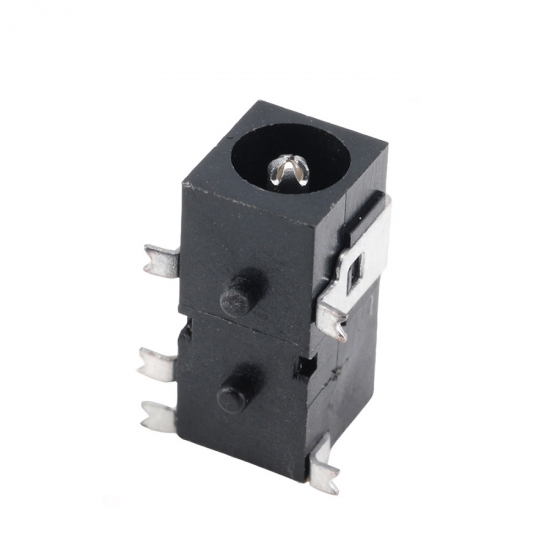

SMT 2.5 stereo female socket SMT type connectors

Surface mount(SMT) DC power jack socket,earphone socket.



  • Item NO.:

    DC-0507
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


Product item: SMT 2.5 stereo female socket SMT type connectors


General characteristic:


  • Operating force:-20-70℃;
  • Voltage withstand:AC250V(50Hz)/min
  • Rating:DC 30V 0.5A;
  • Operating force:3~20N
  • Contact resistance:≤0.05Ω ;
  • Life cycles;5000 cycles
  • Insulation resistance:≥100MΩ

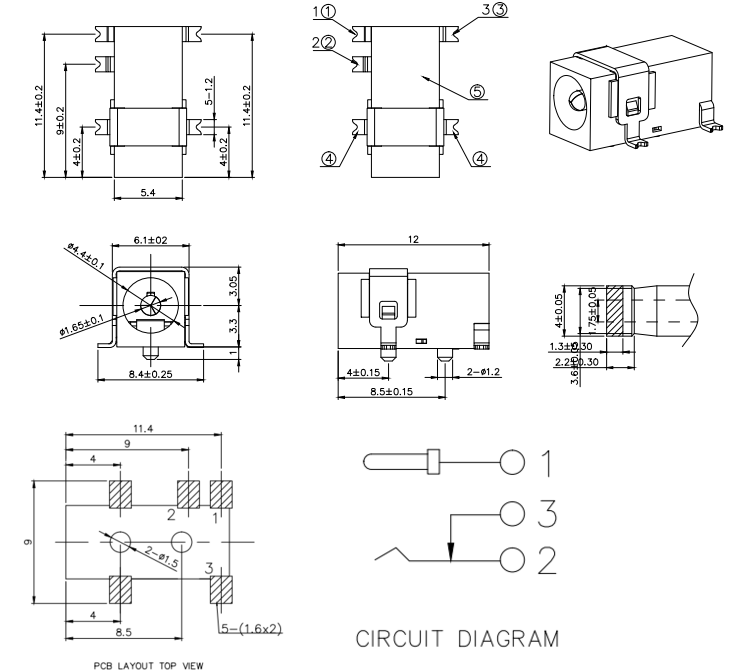

Dimension:
