Home |Socket |SMT Female Power Jack Connector 2.0mm

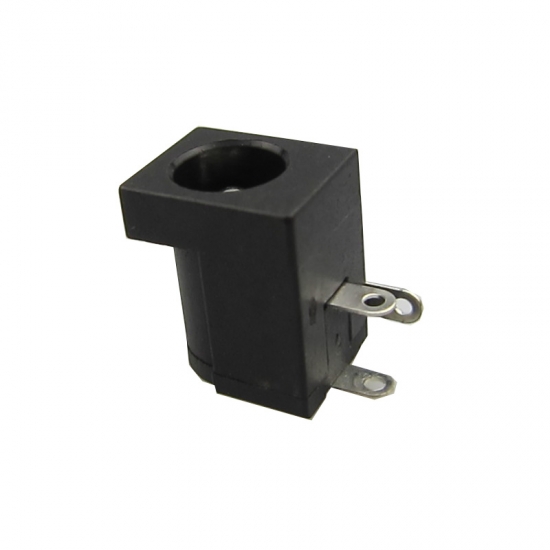

SMT Female Power Jack Connector 2.0mm

DC-470 power jack, optional koobs and sizes.

  • Item No.:

    USB-0065
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Metal
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Proudct  Item: Female Power Jack 2.0mm


Technical Parameter

Contact Resistance: ≤0.03mmΩ

Rated Load: 30V DC 0.5A

Insulation Resistance: ≥100MΩ

Insertion and Extraction Force: 3N~30N

Withstand Voltage: 500V, AC/min

Electrical Life: 5,000cycles

Operating Temperature: -40~+70℃

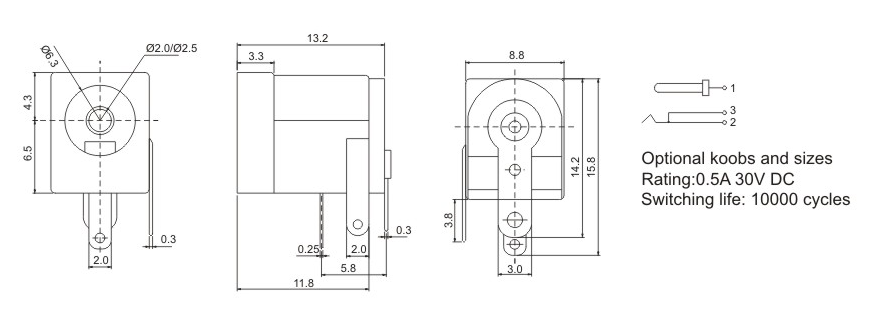

Dimension
