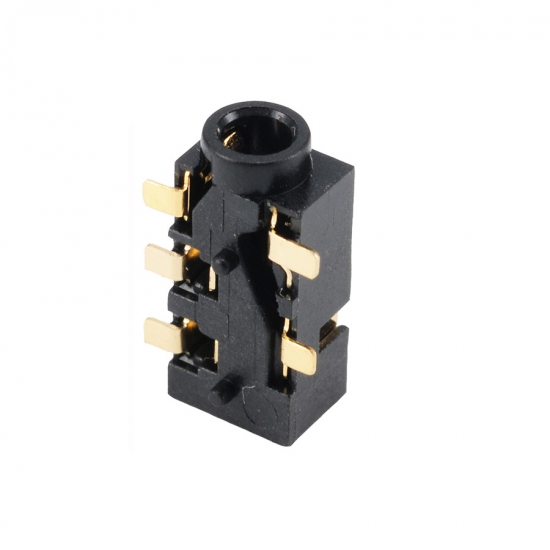

Waterproof Headset Power Connector SMT DC Phone Jack

Waterproof and dust proof conform to the product structure.

  • Item No.:

    PJ2547
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details


Product item: Headset Power Connector SMT DC Phone Jack


General characteristic:


• After exposed at temperature of 40 ±2℃, insulation resistance shall not be <30MΩ

• At relative humidity of 90% to 95% for 48 hours, insulation resistance shall not be <30MΩ

• Dried at room temperature for 30 minutes, insulation resistance shall not be <30MΩ

• Connector shall withstand 5,000 cycles of insertions and withdrawal with testing plug contact resistance shall not exceed 0.1Ω

• A wide range of A/V connectors are available

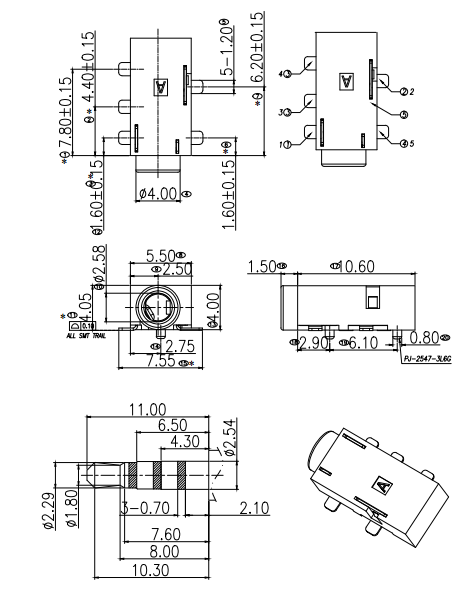

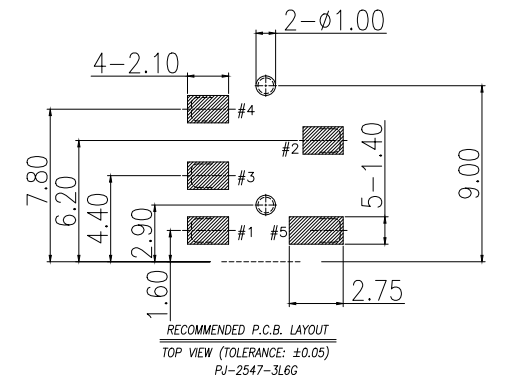

Dimension:
