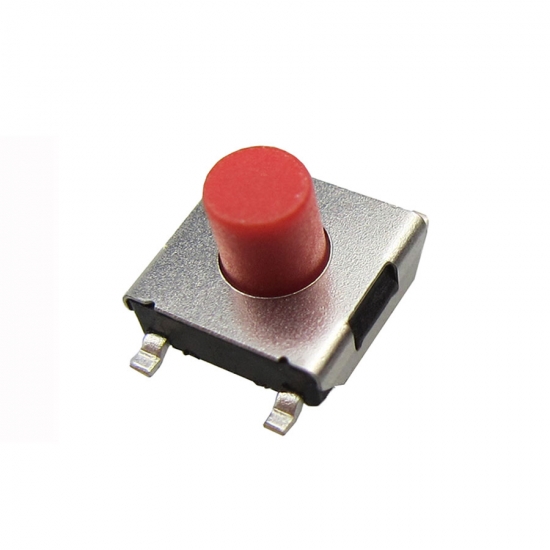

Ultra-thin SMD tactile switch with red knob

Small size tactile switch,red/black/green color of knob is available.


  • Brand:

    Gangyuan
  • Item No.:

    KAN0647
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    Red/black/green stem
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:SMD Miniature Tactile switch


Feature:

Hard plastic actuator for good click performance.can be customized according to different request,such as operation force,height,with column or without column .Fully automated production,test and tape packaging

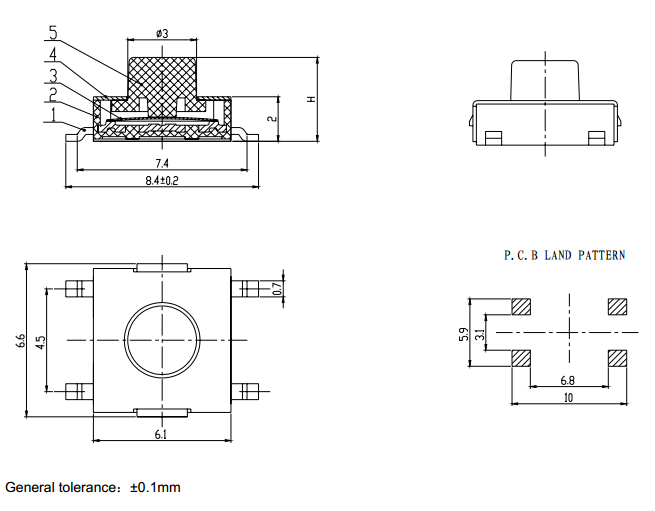

Dimension:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE FR52 1 Black
3 CONTACT AG-STS 1 Contact side silver plating
4 COVER SUS 301 1 Cu Sn plating
6 STEM FR52 1 Black

Application
