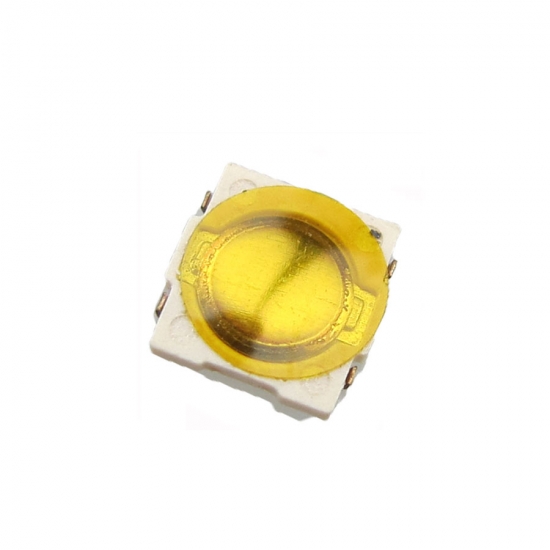

Ultra-thin 4.8*4.8mm SMT Tactile Switch

KAN0542 membrane tactile switch use for laptops reset&power buttons and volume control button.


  • Brand:

    Gangyuan
  • Item No.:

    KAN0542
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    White
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:Ultra-thin Tactile Switch SMD Type


Feature:

Membrane tactile switch with high clicking performance and high reliability,IP65 rated.Ultra-miniature tactile switch 0.55mm height suited for laptop products


General characteristic:

Operating Temperature

 -20℃~70℃

Rating

12V DC,50mA

Full travel

0.20±0.1mm

Contact resistance

100mΩ max

Operation force

1.0N,1.6N,2.6N

Operation life

1,000,000 cycles

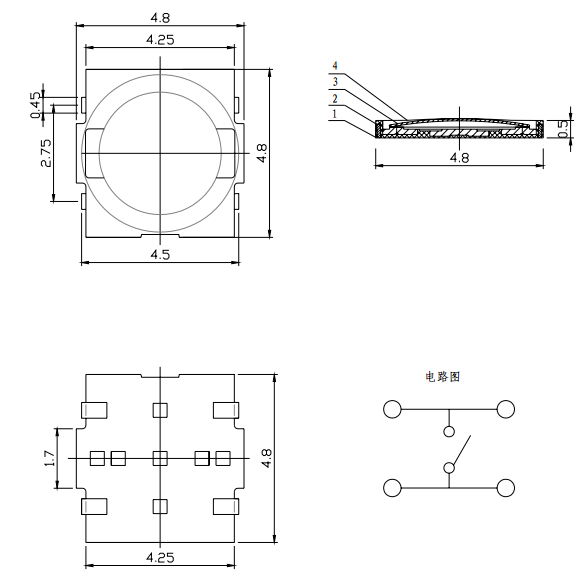

Datasheet:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Phosphor bronze 1 Silver Plating
2 CASE PPA 1 White
3 CONTACT STS 301R 1 Contact siede Ag plating
4 Membrane polyimide 1 Black

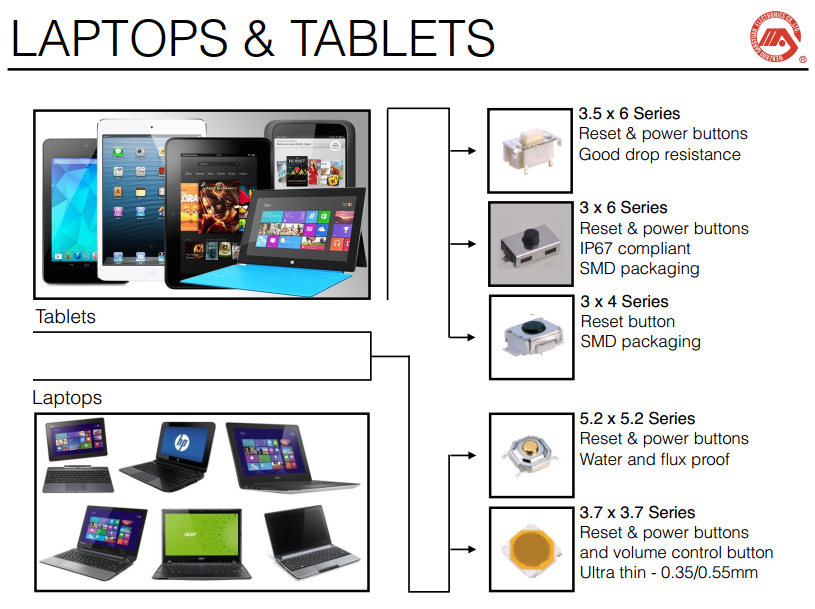

Application

A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
