Home Switch Tactile switch Square low profile waterproof tact switch 12v

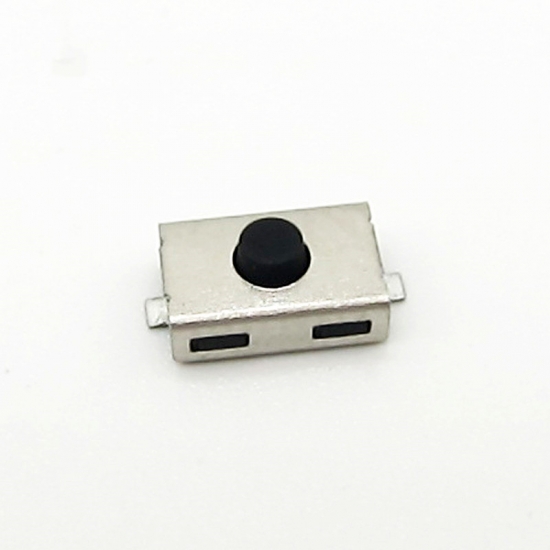

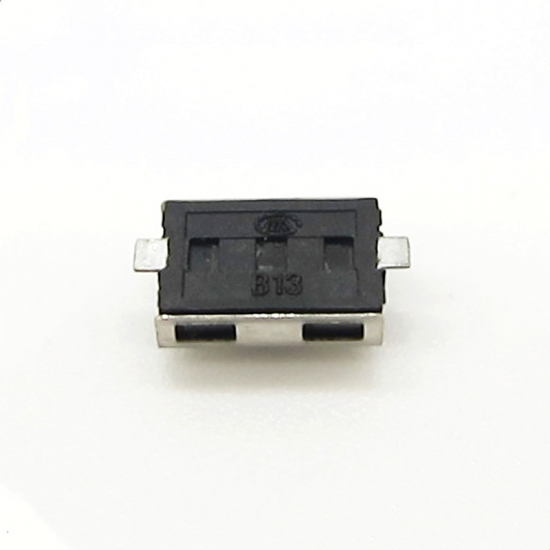

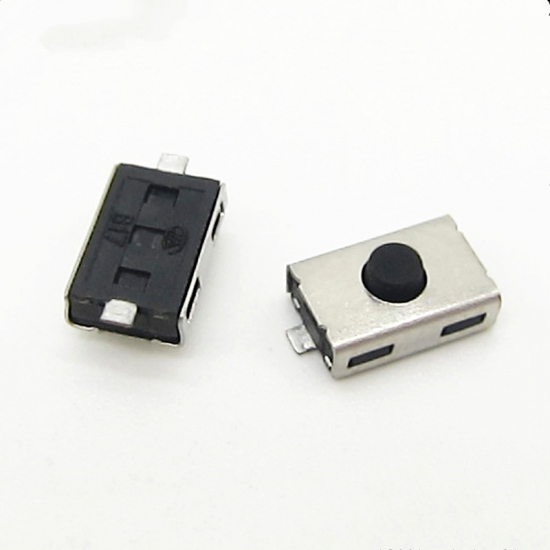

Square low profile waterproof tact switch 12v

This is a waterproof, thin and versatile momentary switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441F-0251J
  • Order(MOQ):

    1000
  • Payment:

    EXW
  • Product Origin:

    Zhejiang,China
  • Color:

    Metallic
  • Shipping Port:

    Ningbo/shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

Square low profile waterproof tact switch 12v

It can work continuously in a humid and water environment, and the waterproof level reaches IP67

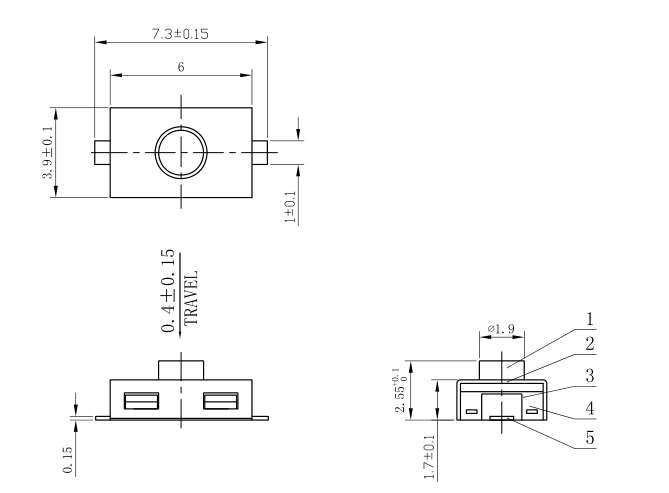

Product description

Product  Number : KAN0441F-0251J

Contact Resistance : ≤100mΩ

Insulation Resistance : ≥100MΩ

Operating Force : 3.0±0.5N

Full Travel : 0.4±0.15mm
Return Force : 0.7N MIN

Water Resistance : IP67

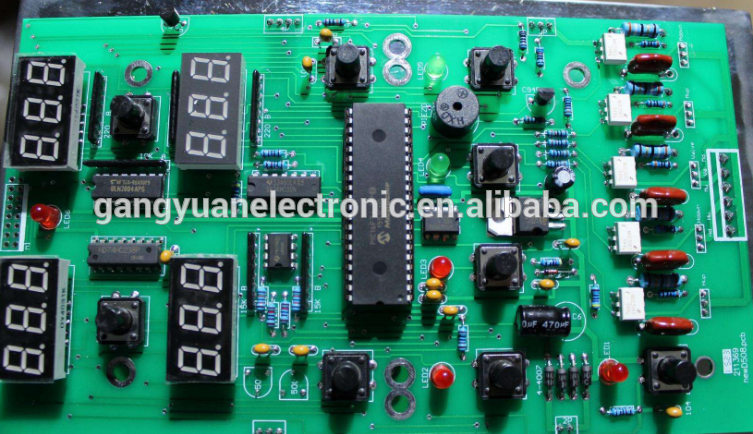

Product application



Delivery



Company information

1994  Set up Yueqing Shenyuan Electrical Switch factory
2003  Developing to produce & test by automatic machines
2004  Set up GYE electrical department, successful develop transfomers & adaptors
2005  Switch annual output reached 10billion, cooperate with SHARP ,Panasonic.
2008 CANON,LG. establish cooperation relationship Hubei Gangyuan Electric Co.,Ltd established and start to produce


RFQ

1. Why choose GANGYUAN ?
A: We promise: All our products have quality assurance, and are of high quality and competitive prices. We have the best after-sales service to ensure that you receive the goods satisfactorily. 100% long-term full load aging test/aging test has been carried out before leaving the factory.

2. What is the scope of application of this product?
A: Household appliances, automotive electronics, office equipment, medical treatment. Industrial control and other fields.

3. Can your products pass CE/ROHS certification?
A: Yes, our products comply with industry standards, such as CE / ROHS / CCC

4. Accept sample orders? What is your minimum order quantity?
A: Trial orders or sample orders can be accepted, but the cost is different from bulk purchase

5. What shipping methods can you provide?
A: Express/air/sea according to customer requirements.

6. Does your product come with a warranty?
A: Yes, we promise to provide 1-3 years warranty according to different models.
