Solder Terminal 1P2T Toggle Switch

The 1P2T Toggle Switchis a single-pole double-throw (SPDT) control switch that toggles one circuit between two states (e.g., on/off, mode selection) via a rocking operation. It supports two installation types: solder terminals (for PCB direct soldering) andplug-in terminals (for panel mounting)

Brand:
Gangyuan
Item NO.:
SS12D08-G6
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

Industrial Plug-in 1P2T Toggle Switch with Dustproof Function

Typical Specifications

Type: Micro slide switches

Ratings: DC125V 1.5A

Operating Force: 250±100gf

Full Travel: 2.2±0.2mm

Timing: Non-shorting

Operation life: 10,000 cycles

Slide switch knob: 6mm

Practical Temperature Range: -20℃～70℃

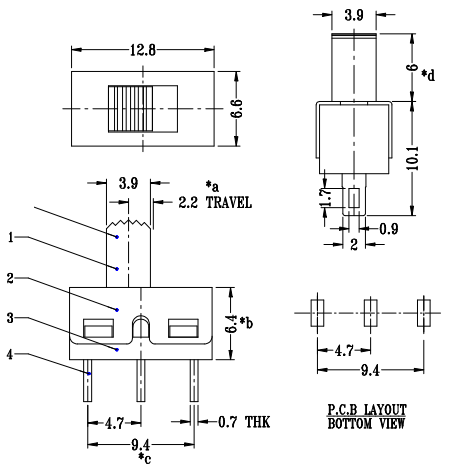

Slide switch dimensions

Metal small slide switch

Application

Automotive/Motorcycle/Marine – Lights, Instruments, Control Panels
Home Appliances – Desk Lamps, Fans, Coffee Makers, Rice Cookers
Industrial Equipment – Machine Tools, Control Cabinets, Power Tools
Electronics DIY/Experimental Projects – Circuit Prototypes, Test Controls
Lighting Systems – Landscape Lighting, Indoor Switches, Stage Lighting
Power Supply Equipment – Voltage Regulators, Inverters, Chargers

For example

A toggle switch in a car's cab turns the front and rear lights on and off.
A toggle switch on a traditional desk or floor lamp controls on/off or dimming.
A toggle switch on a machine's operating panel in a factory selects between automatic and manual modes.
A backup toggle switch for an old-fashioned voice-activated light in a hallway is used to manually turn the light on and off.
