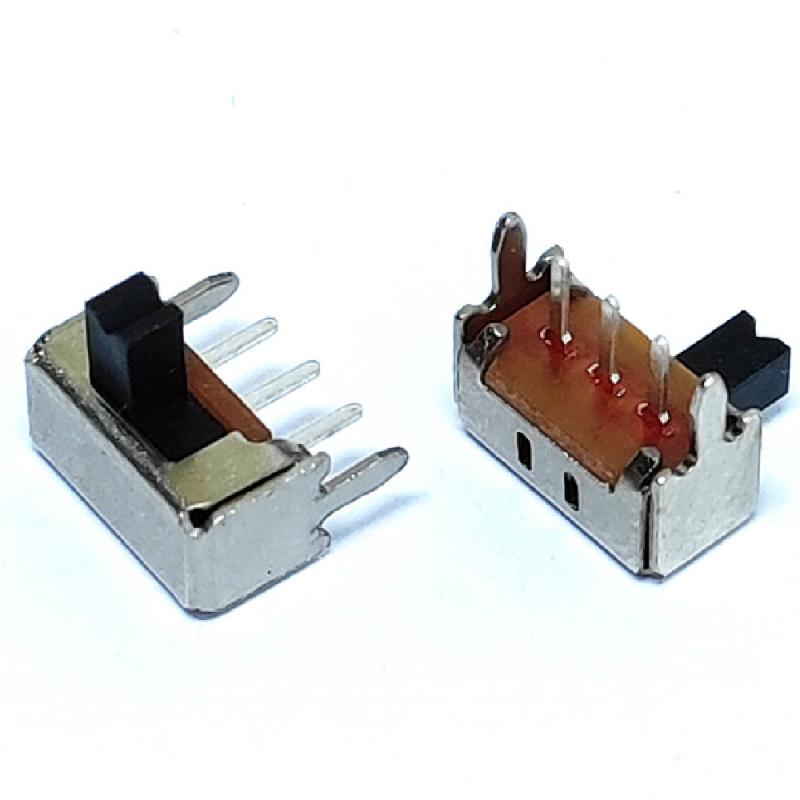

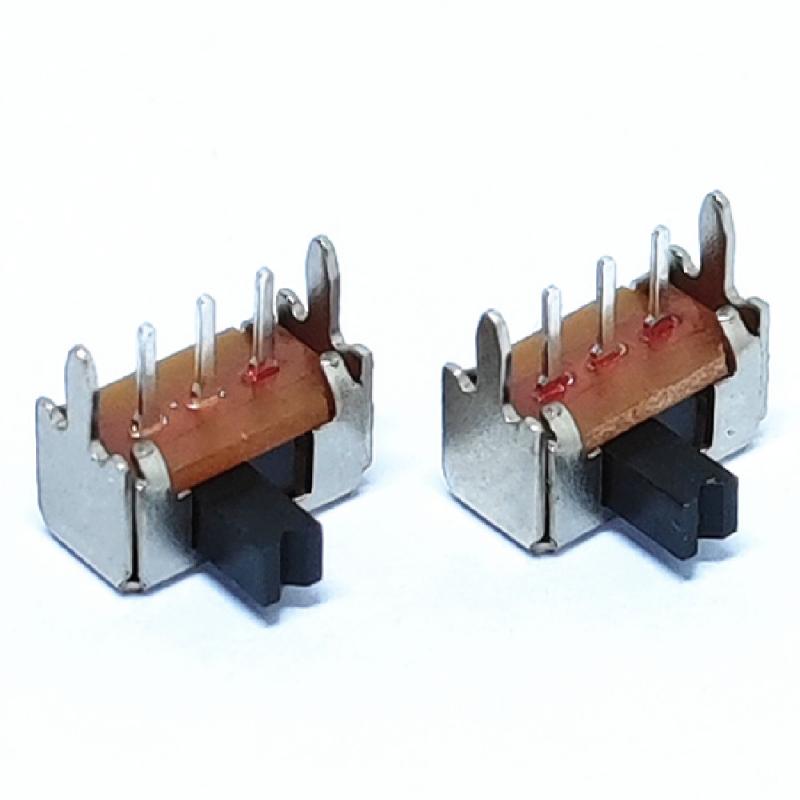

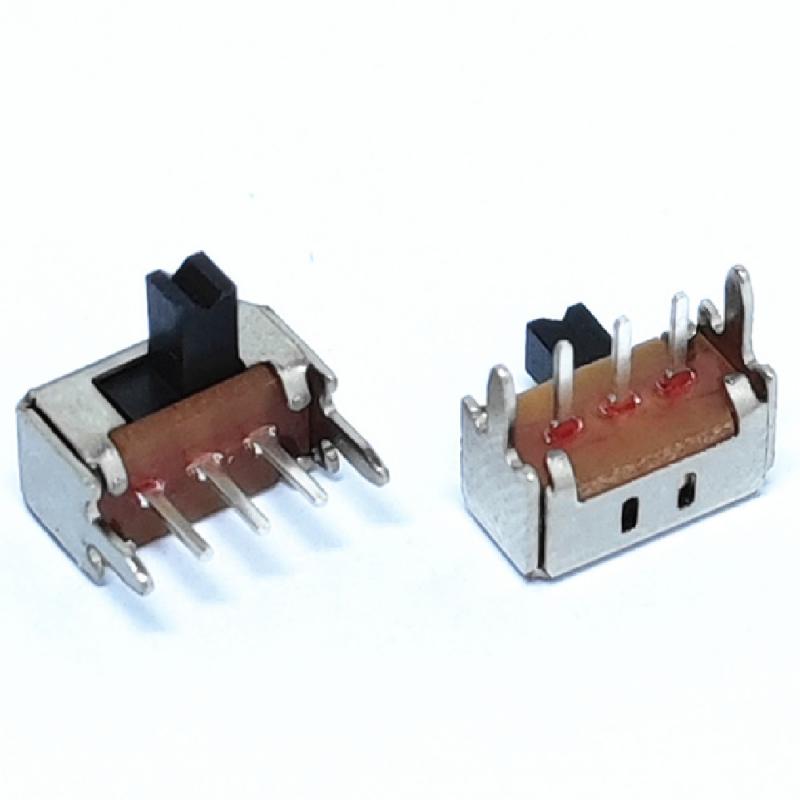

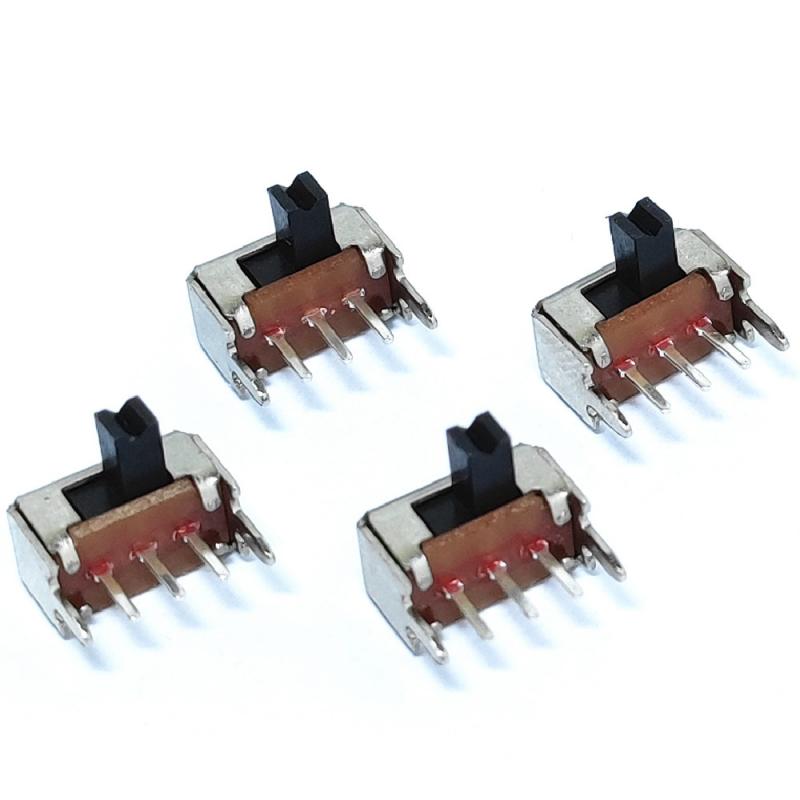

Single Pole Double Throw Toggle Switch

The 1P2T toggle switch is a compact and reliable single-pole double-throw (SPDT) switch, ideal for switching between two circuits in various control applications.

Brand:
Gangyuan
Item NO.:
SK12D02-VG3-DF1
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
8.60mm x 4.70mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

3 mm Raised Slide Actuator Toggle switch for electronic circuit

Typical Specifications

Type: Button Right angle slide switches

Ratings: DC50V 0.3A ( Max )

Operating Force:300±100gf

Timing: Non-shorting

Operation life: 10,000 cycles

Slide switch knob: 3mm

Practical Temperature Range: -16℃～60℃

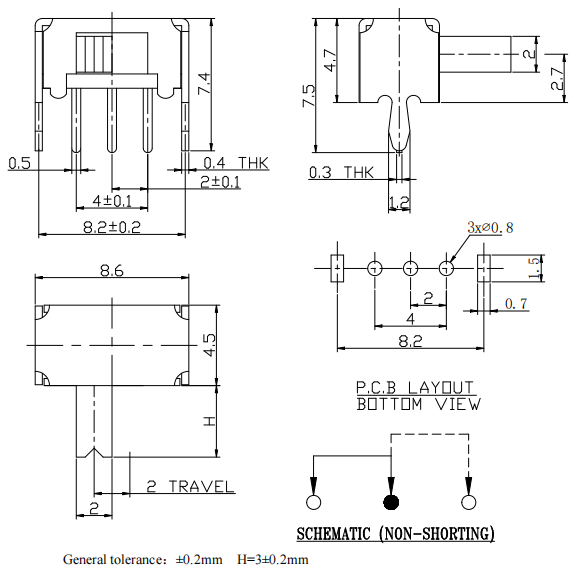

Slide switch dimensions

One pole two way switch

Application

Automotive/Motorcycle/Marine – Lights, Instruments, Control Panels
Home Appliances – Desk Lamps, Fans, Coffee Makers, Rice Cookers
Industrial Equipment – Machine Tools, Control Cabinets, Power Tools
Electronics DIY/Experimental Projects – Circuit Prototypes, Test Controls
Lighting Systems – Landscape Lighting, Indoor Switches, Stage Lighting
Power Supply Equipment – Voltage Regulators, Inverters, Chargers

For example

A toggle switch in a car's cab turns the front and rear lights on and off.
A toggle switch on a traditional desk or floor lamp controls on/off or dimming.
A toggle switch on a machine's operating panel in a factory selects between automatic and manual modes.
A backup toggle switch for an old-fashioned voice-activated light in a hallway is used to manually turn the light on and off.
