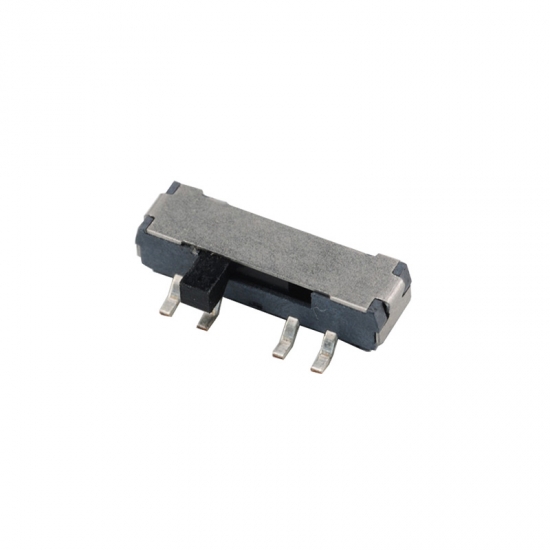

2P3T Side Operated SMD Slide Switch

Side operated knob, 2P3T type, 8 termninals, Mini shape for PCB, also a great components for DIY.


  • Brand:

    Gangyuan
  • Item No.:

    MSK-07D
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7-10 Working Days after payment
Product Details


Product item: 2P3T Side Operated SMD Slide Switch MSK-07D


Parameter

Contact resistance: 30mΩ Max

Insulation resistance: 100mΩ Min

Dielectric strength: AC 500V (50Hz-60Hz) 1 min, 0.5mA

Operating force: 250gf±100gf

Rating current: DC 6V 0.3A

Function: 2P3T

Life cycles: 10,000cycles

Operating temperature: -16℃~﹢60℃

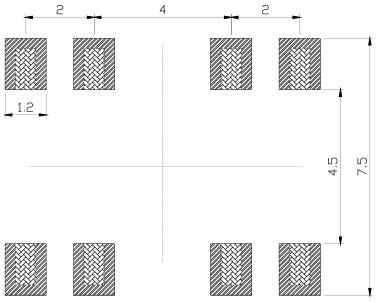

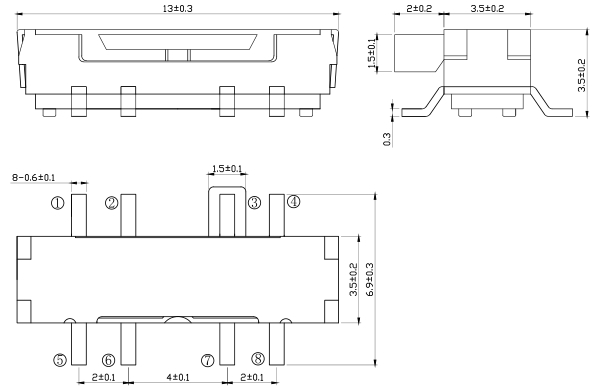

Dimension










Application


Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
