Home Switch Slide switch Mini Horizontal Slide Switch 3 Position

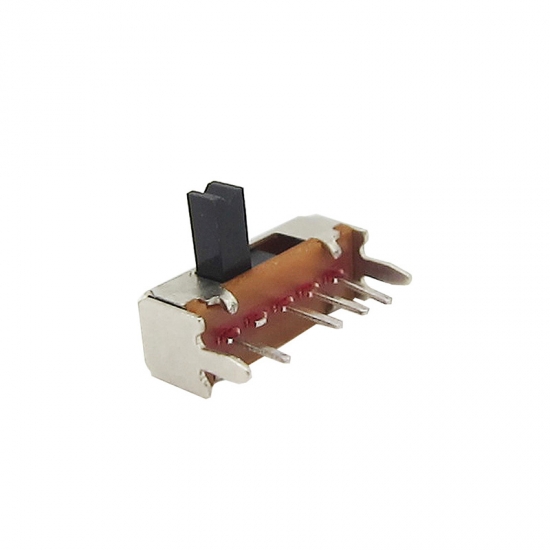

Mini Horizontal Slide Switch 3 Position

Horizontal slide switch, knob of wave or V shape, 1 pole 3 position, PCB mounting.

  • Item NO.:

    SK13D07
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-15 working days after payment
  • Product Detail

Product item: Mini Horizontal Slide Switch 3 Position


Basic information


     Rating current
DC 50V 0.3A
Function
1P3T
Operating force
250gf/300gf±100gf
Life cycles
10,000cycles
Operating temperature
 -16℃~﹢60℃
Contact resistance
80mΩ Max
Insulation resistance
100MΩ Min
Dielectric strength
AC 500V (50Hz-60Hz) 1 min, 0.5mA

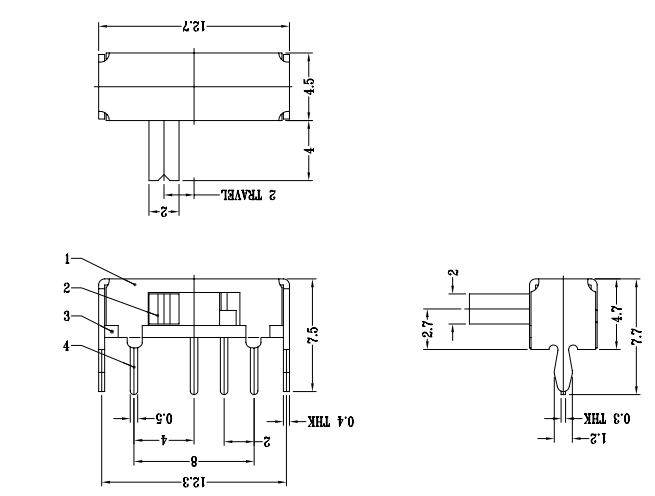

Dimension



Advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

   More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.

7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


Application


Slide switch is to turn on or off the circuit by turning its actuator (switch handle). It has the characteristics of flexible slider action, stable and reliable performance, and is widely used in electrical appliances, machinery, communications, digital audio and video, building automation, and electronic products.


 FAQ


1. Q: Are you manufacture/ factory? Location?

   A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

   A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?

   A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

   A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

   A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
