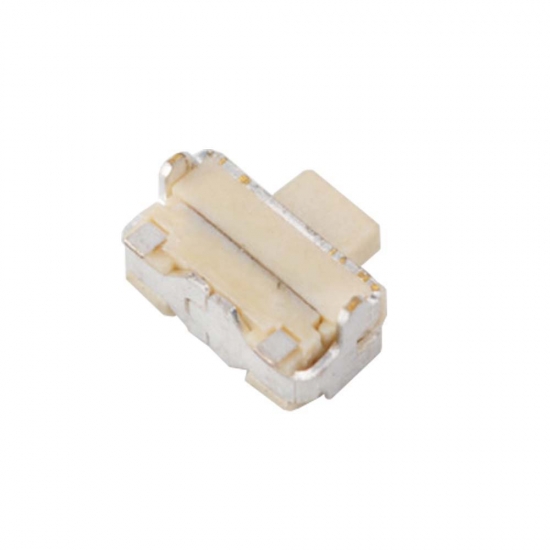

smd waterproof push button tact switch

12V 50mA silent smd waterproof push button tact switch

Brand:
Gangyuan
Item NO.:
KAN0241
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
4.50mm x 1.80mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

12V 50mA silent smd waterproof push button tact switch

Product Description:

Product type	Tact switch
Rating	DC 12V 50mA
Return Force	0.4N MIN
Operating force	1.57±0.5N
Life cycles	100,000 cycles
Travel	0.25±0.1mm
Certification	ROHS/ SGS/ REACH/ UL
Resistance to low temperature	-30±2℃ 96H
Heat resistance	80±2℃ 96H

Dimension:
