Home Switch Tactile switch 35 Series tact switch smd right angle tact switch

smd right angle tact switch

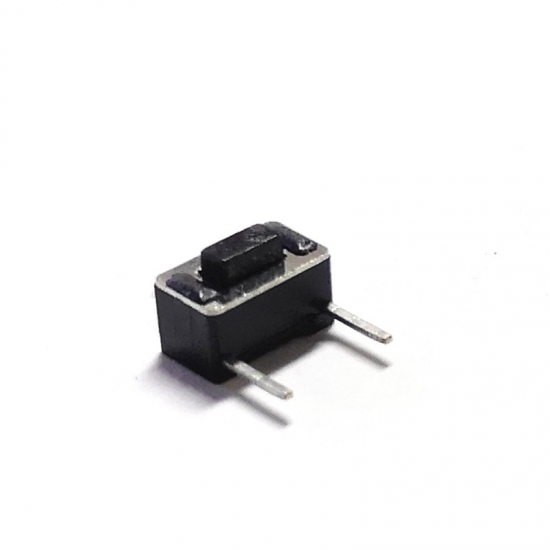

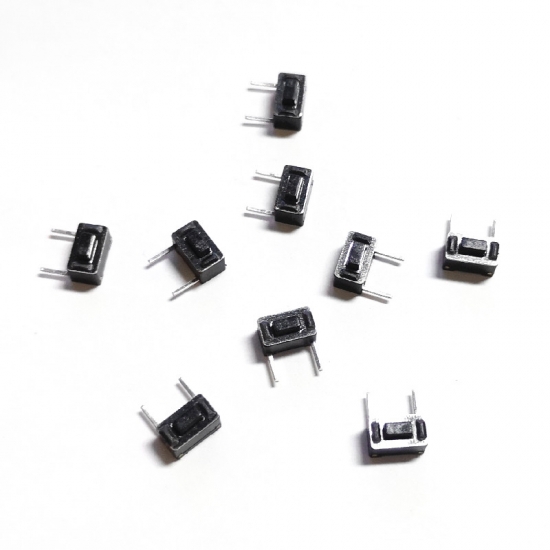

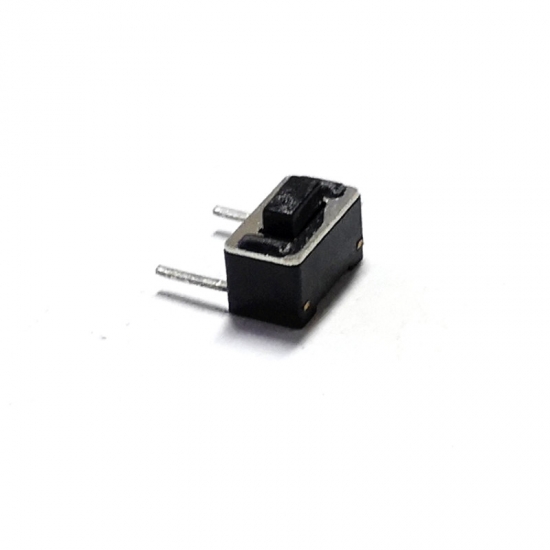

This right-angle tactile switch has a great 'click' to it. Also, because it's a through-hole design it's very sturdy. Mount it on the edge of your board for easy access. These are rated for 12VDC at 50mA.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3561-0431C
  • Order(MOQ):

    500pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

manufacturing right angle side push tact switch


 Basic Information


Contact arrangement: 1 pole, 1 throw

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 260±50gf

Full Travel: 0.25±0.1mm

Operation life: 30,000 cycles

Height: 4.3mm

Size: 6.1x3.5mm

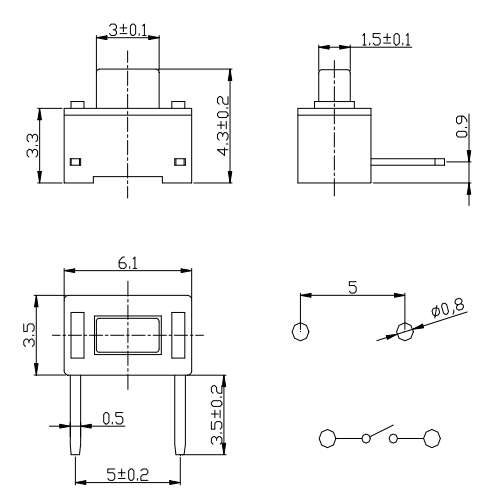

 Dimension


 Tact Switch Using Attention


1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switch

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature


 12v mini tactile switch



 Application


Panel mount tactile switch applications: for car remote control, LCD panel key switch, Electronic toys, massage chair,

running machine, camera, voice recorder, etc., monitor, intercom, MP3, MP4, DVD, audio, digital cameras, digital cameras,

such as thermometer, blood pressure, hospital call system, vehicle, ava, family anti-theft door remote control, mobile, telephone,

car phones, building equipment, PDA, TV, microwave oven, electric cooker, electric wind, fat electronic body scale, electronic scale.
