Home Switch Tactile switch 35 Series tact switch Gangyuan Manufatury Small SMD Size Red Sterm Tact Swicth

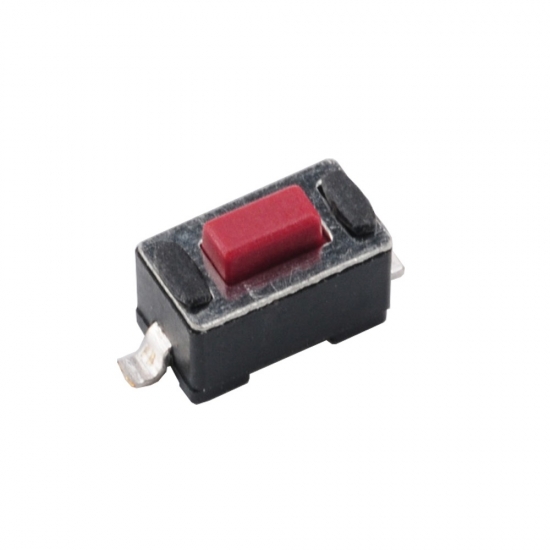

Gangyuan Manufatury Small SMD Size Red Sterm Tact Swicth

KAN354: SMD mini size tactlie switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3544B
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    BLACK
  • Shipping Port:

    shenzhen/Ningbo port
  • Lead Time:

    7-15working days
  • Product Detail

Gangyuan Manufatury Small SMD Size Red Sterm Tact Swicth


Basic Information

P/N
KAN3544B
Type
SMD tact switch
Dimension
6×3.5×Hmm
Operating force
160gf/260gf
Life cycles
100/50  thousand cycles
Characteristics
small smd size

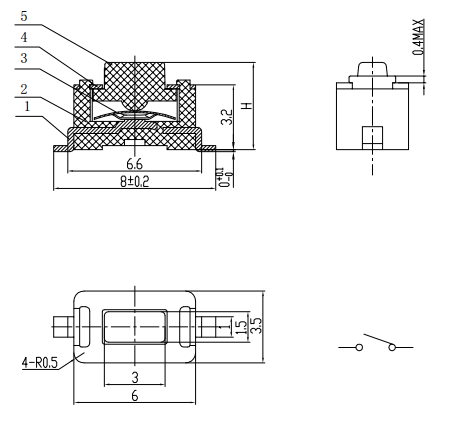

Drawing



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
