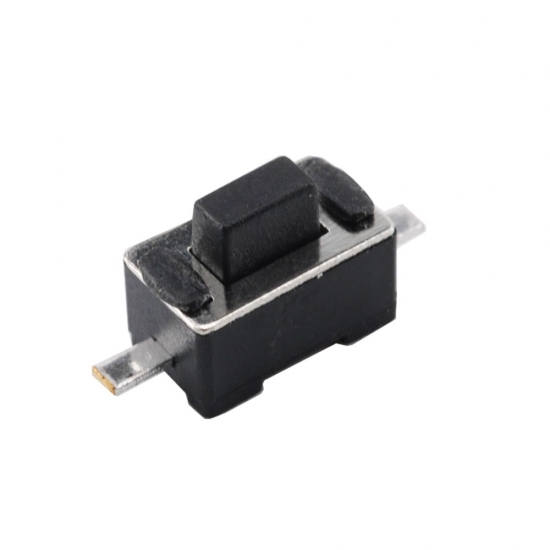

Smalll Size SMD Type 12v 50mA SMD Tact Switch

KAN3542C: 5/100 thousand cycles, small size SMD tactlie switch


  • Brand:

    Gangyuan
  • Item No.:

    KAN3542C
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    BLACK
  • Shipping Port:

    shenzhen/Ningbo port
  • Min Order:

    1000
  • Lead Time:

    7-15working days
Product Details

Smalll Size SMD Type 12v 50mA SMD Tact Switch


Basic Information

P/N
KAN3542C
Type
SMD tact switch
Dimension
6*3.5*H
Operating force
160gf/260gf
Life cycles
5/100  thousand cycles
Characteristics
small size

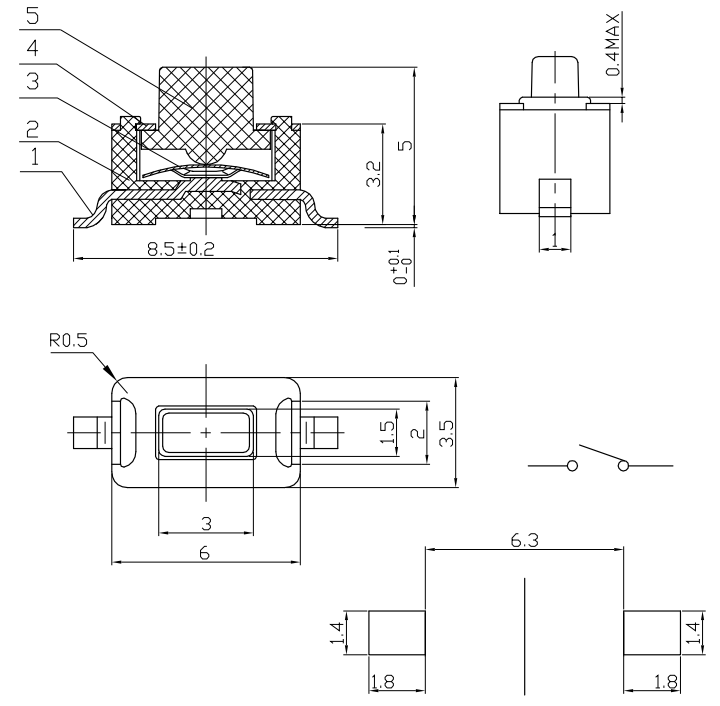

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.




Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
