Home Switch Tactile switch 35 Series tact switch Super Mini SMD 12v 50mA Vertical tact switch (shielded)

Super Mini SMD 12v 50mA Vertical tact switch (shielded)

KAN3531: 3.5*6.*H, Mini SMD type tactile switch


  • Brand:

    Gangyuan
  • Item NO.:

    KAN3531
  • Order(MOQ):

    1000
  • Payment:

    T/T,Paypal
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/ningbo
  • Lead Time:

    5-7working days
  • Product Detail

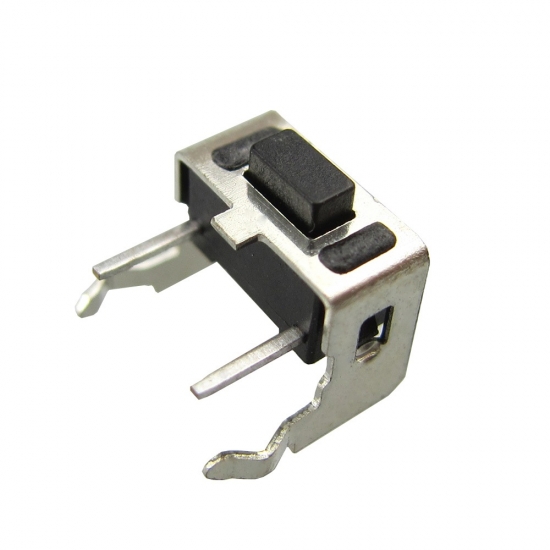

Super Mini SMD 12v 50mA Vertical tact switch (shielded)



Basic Information

P/N

KAN3531
Type
vertical tact switch
Dimension
3.5*6*H=4.3mm/5mm
Operating force
160gf/260gf
Life cycles
50000 cycles
Characteristics
small size



Dimension



Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Appliance



Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
