Home Switch Tactile switch 35 Series tact switch Gangyuang 2 pin KAN3511B Dip Tact Switch

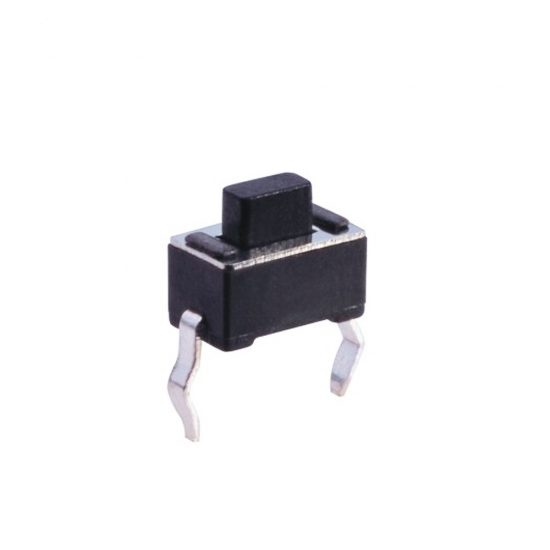

Gangyuang 2 pin KAN3511B Dip Tact Switch

KAN3511B: 160gf/ 260gf, 6*3.5*H, 50,000cycles mini smd tact switch.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN3511B
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/ ningbo
  • Lead Time:

    5-7working days
  • Product Detail

Gangyuang 2 pin KAN3511B Dip Tact Switch



Basic Information

P/N
KAN3511B
Type
tact switch
Dimension
6*3.5*H=4.3mm/5mm
Operating force
160gf/260gf
Life cycles
50,000cycles
Characteristics
small size

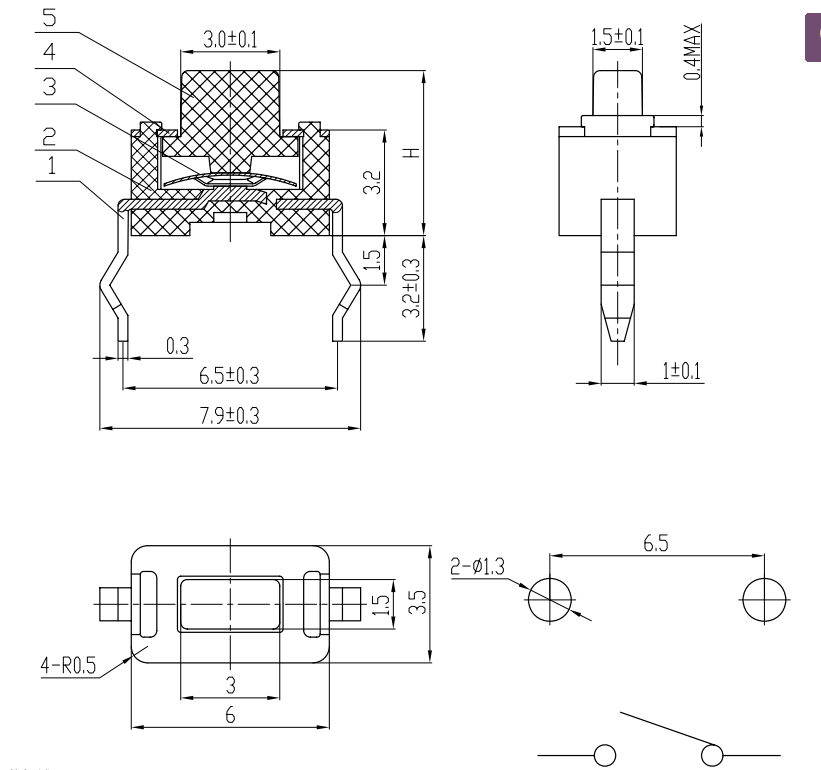

Dimension




Tact Switch Using Attention

1. lease be cautions not to give excessive static load or shock to switches.

2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.

3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
