The 1P3T slide switch controls one circuit with three switching positions, enabling efficient multi-mode selection in compact applications.
Brand:
GangyuanItem NO.:
SS13D03A-EG9Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
16.00mm x 6.70mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
No IP RatingPole Single Row Pin 3 Position Slide Switches
Typical Specifications
Ratings: 0.1A DC30V
Operating Force:250±100gf
Full Travel: 2±0.3mm
Operation life: 10,000 cycles
Slide switch knob: 9mm
Operating Temperature Range: -20℃～70℃

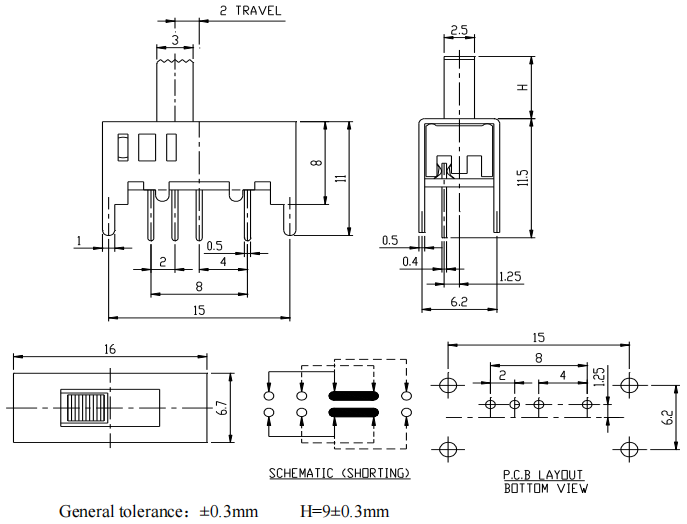

Slide switch dimensions
3 Way Metal Slide Switch
Feature
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Easy Structure, Mini Body, 3 Terminal, Vertical Handle,1 Pole 3 Position, Sliding Knob Actuator.
Horizontal slide switch, knob of wave or V shape, 1 pole 3 position, PCB mounting.
SMD type slide switch, miniature body, easily handle, surface mount design terminal with 2 positions, workable for reel packing.
Side operated white knob, one pole two throw, PCB mounting design, 3 terminal, adoptable in reel packing.
Side operated knob, 2P3T type, 8 termninals, Mini shape for PCB, also a great components for DIY.
2P3T Mini Slide Switches for Audio Products,Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 2 Position, Sliding Knob Actuator.
MSK-01-B: 7.1mmX3.5mm, 180gf, 2P2T type slide switch.
MSK-01Q: 9.9mmX3.2mm, 180gf/250gf, 2P3T Type slide switch.
