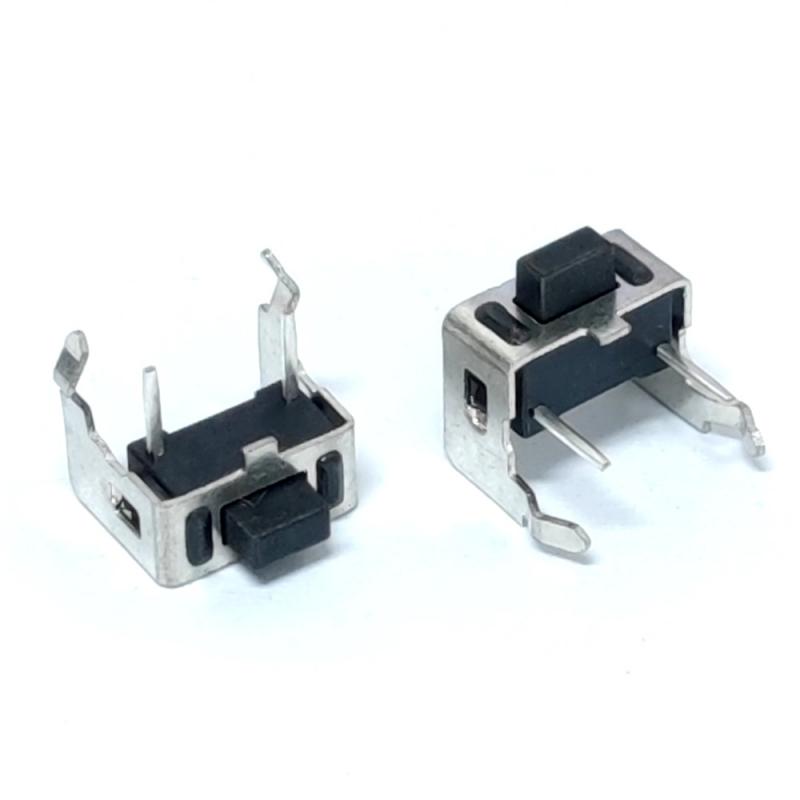

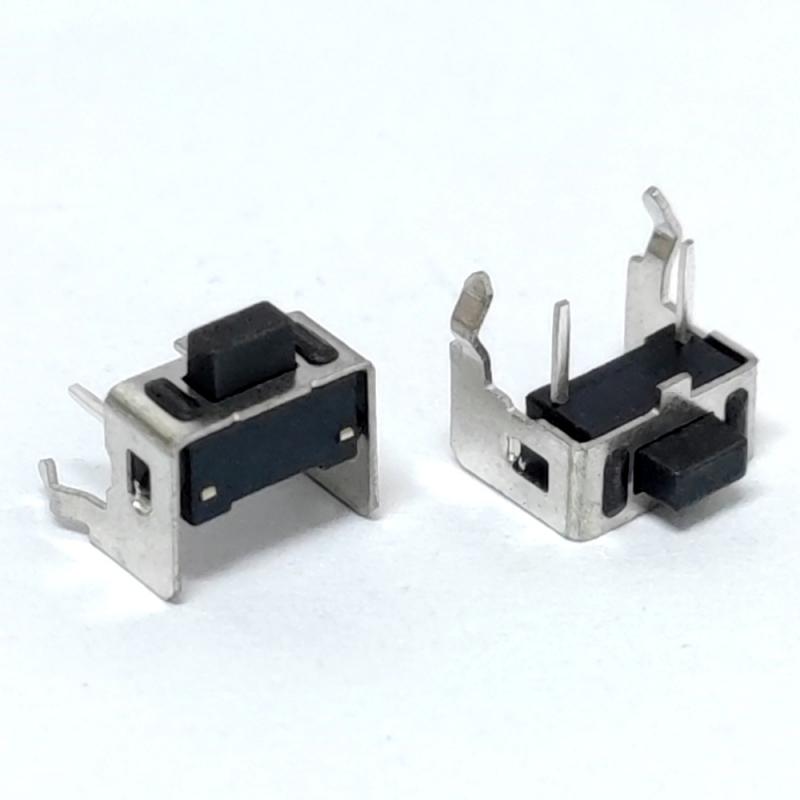

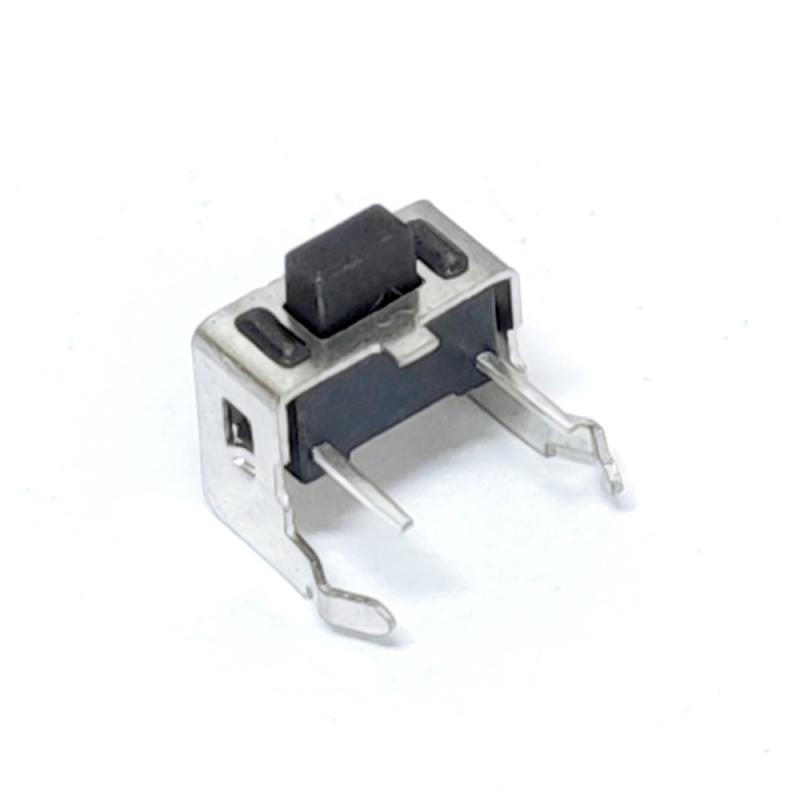

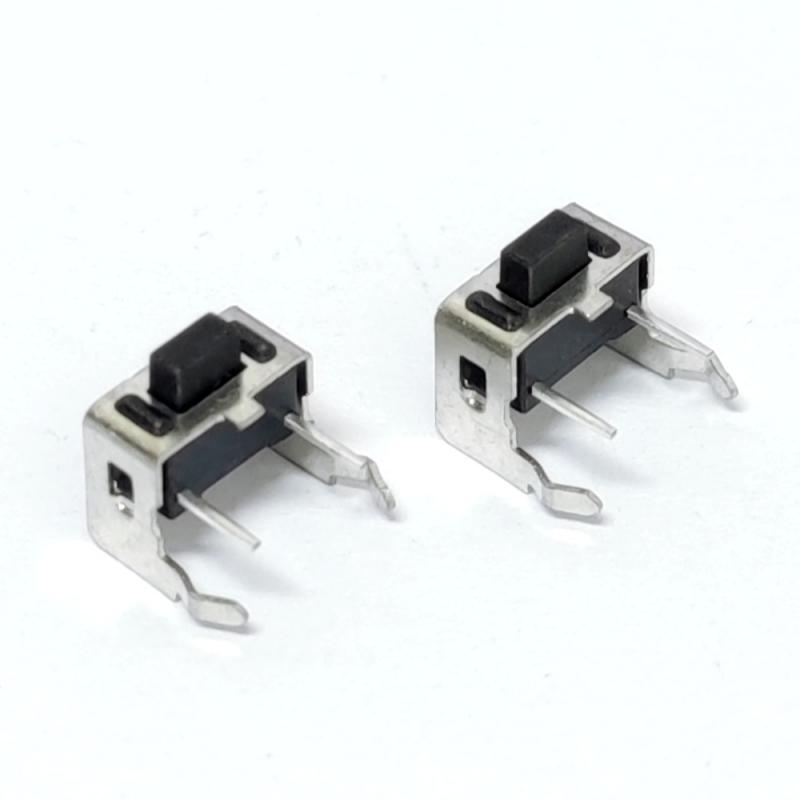

Side Push Type Tactile Switches with Bracket

Mini 7.2mm x 3.4mm Tactile Switch with Bracket

Brand:
Gangyuan
Item NO.:
KAN3531B-0501B
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
7.20mm x 3.40mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Square Push Button Switch Side Press Vertical Normally Open Tact Switch

Typical Specifications

Type: 7.2mmx3.4mm Rectangle Tact Switch

Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）

Operating Force: 160±50gf

Full Travel: 0.25±0.1mm

Operation life: 40,000 cycles

Product height: 5±0.2mm

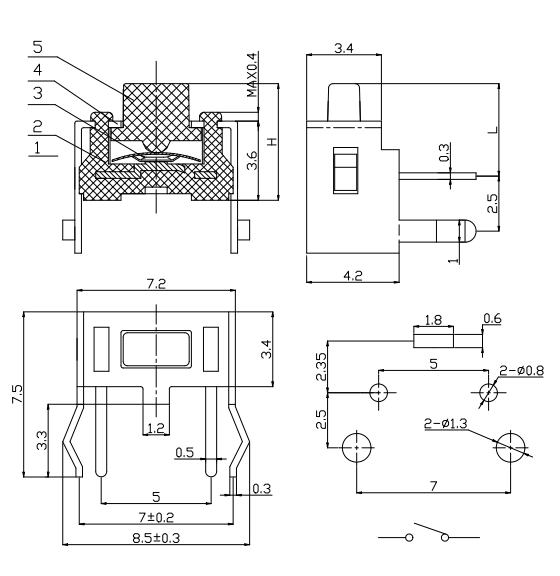

Tact switch dimensions

Miniature push button switch

Pcb mounted tactile switch

Application
Momentary tactile tact push button switch

Advantages of switches with brackets

Secure Installation: The bracket helps to firmly fix the switch to the PCB or housing, preventing loosening or displacement.

Easy Assembly: Suitable for automated production, improving surface mount/insertion efficiency and accuracy.

Reliable Structure: Enhanced mechanical strength, reducing accidental activation or operational failure, and extending service life.

Flexible Design: Facilitates complex or compact product structures and appearance designs.

High Adaptability: Particularly suitable for vibration environments, high-frequency operation, and mass production scenarios.
