DP3T (Double Pole, Triple Throw) switches two circuits simultaneously with three states (e.g., ON-OFF-ON).Mechanical stability for high-frequency operation (e.g., device mode switching).
Brand:
GangyuanItem NO.:
SK23D03-EG8Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
14.20mm x 11mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

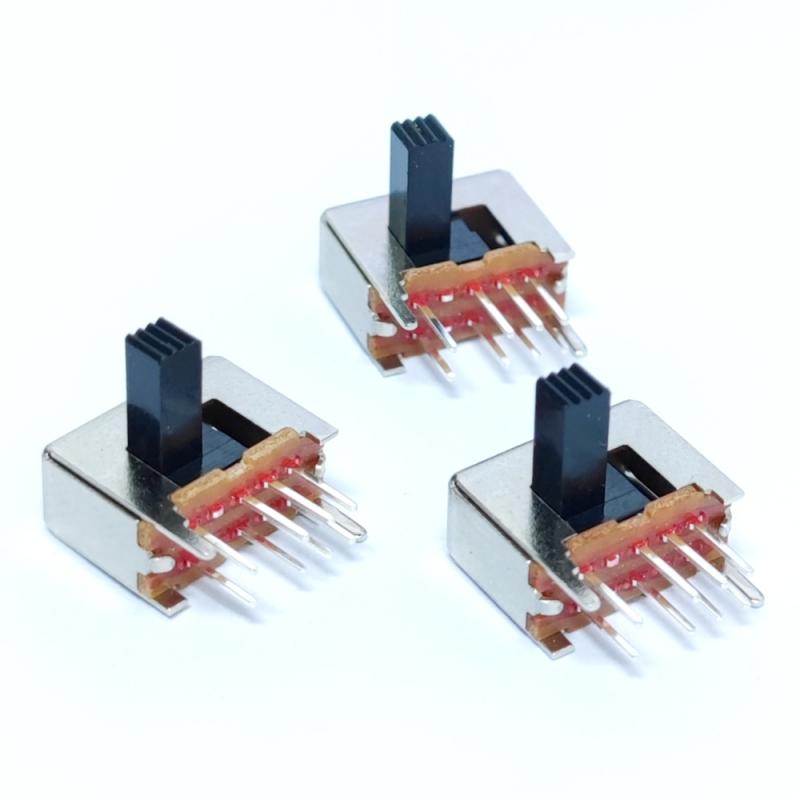

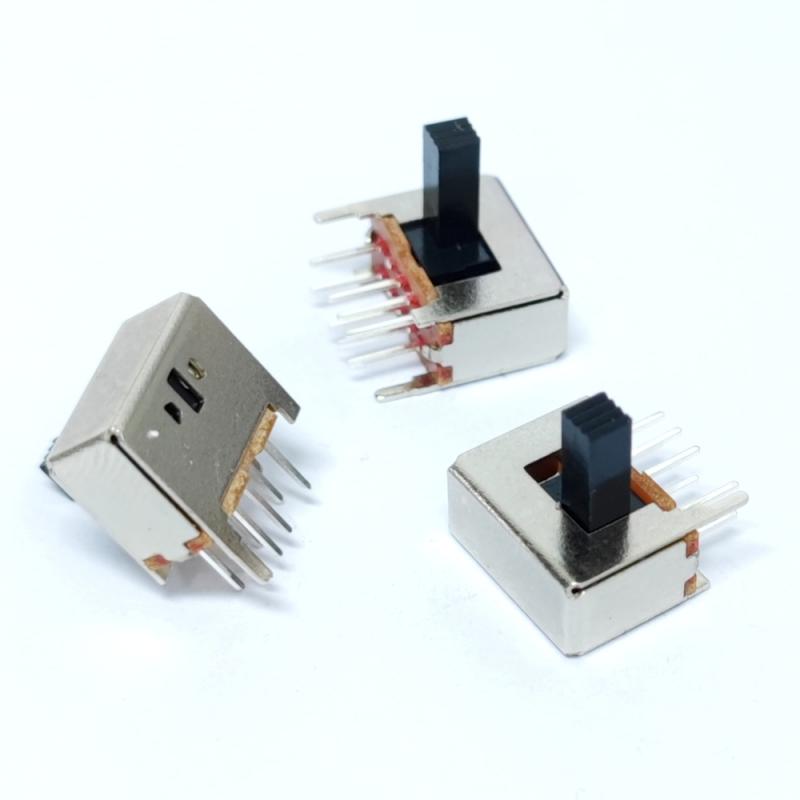

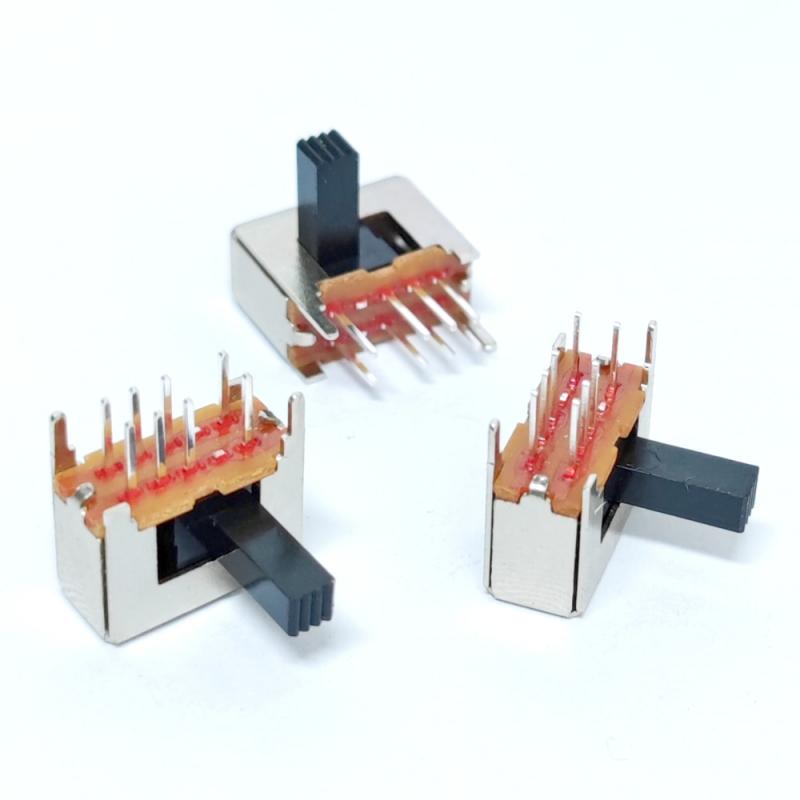

No IP RatingDouble Pole 3 Throw Switch Toggle Switch for Audio Equipment
Typical Specifications
Ratings: 0.3A 50V
Operating Force:250±100gf
Full Travel: 2±0.2mm
Operation life: 10,000 cycles
Slide switch knob: 8mm
Operating Temperature Range: -20℃～70℃

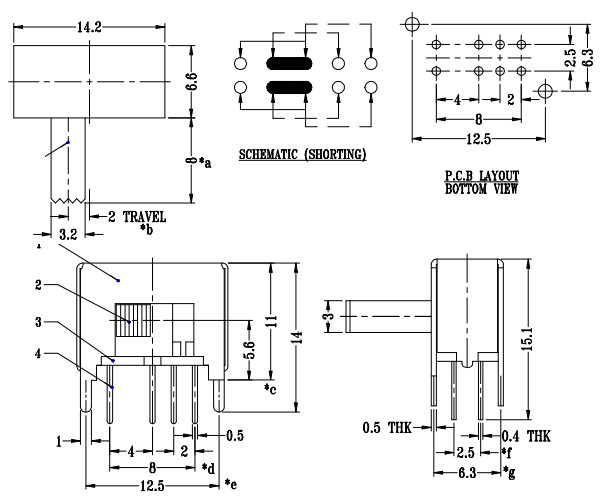

Slide switch dimensions
High slide switch knob
Feature
1. Dual Circuit Control (DP - Double Pole)
Controls two independent circuits simultaneously, ideal for integrated applications (e.g., power + signal switching).
2. Three Stable Switching Positions (3T - Triple Throw, ON-OFF-ON)
Two OFF positions (circuit break) + two ON positions (different circuit paths), enabling
multi-mode operation(e.g., device modes, signal routing).
3. Reliable Electrical Performance
Low contact resistance, stable connectivity in ON states,suitable for audio, communication, and precision devices.
4. Mechanical Advantages
Smooth sliding operation (intuitive, reduces accidental toggling).
Compact & durable (space-saving, high wear resistance for frequent use).
5. Wide Applications
Used in audio equipment, lighting controls, industrial devices, automotive electronics, etc.
6. Customizable
Adjustable size, pin spacing, current/voltage ratings for specific needs.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
