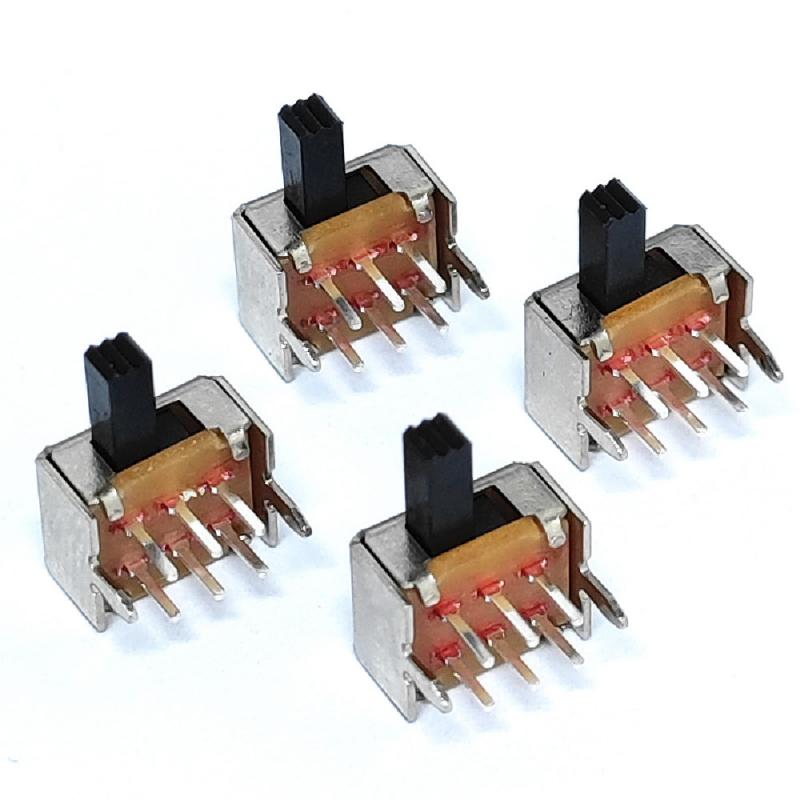

DPDT Metal Housing on on Slide Switch

The ON - ON DPDT slide switch is a double - pole double - throw slide switch that can simultaneously control two independent circuits and switch between two stable conducting states, suitable for various scenarios such as motor forward - reverse rotation and signal routing.

Brand:
Gangyuan
Item NO.:
SK22D03-EG5-DE1
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
8.20mm x 4.70mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
No IP Rating

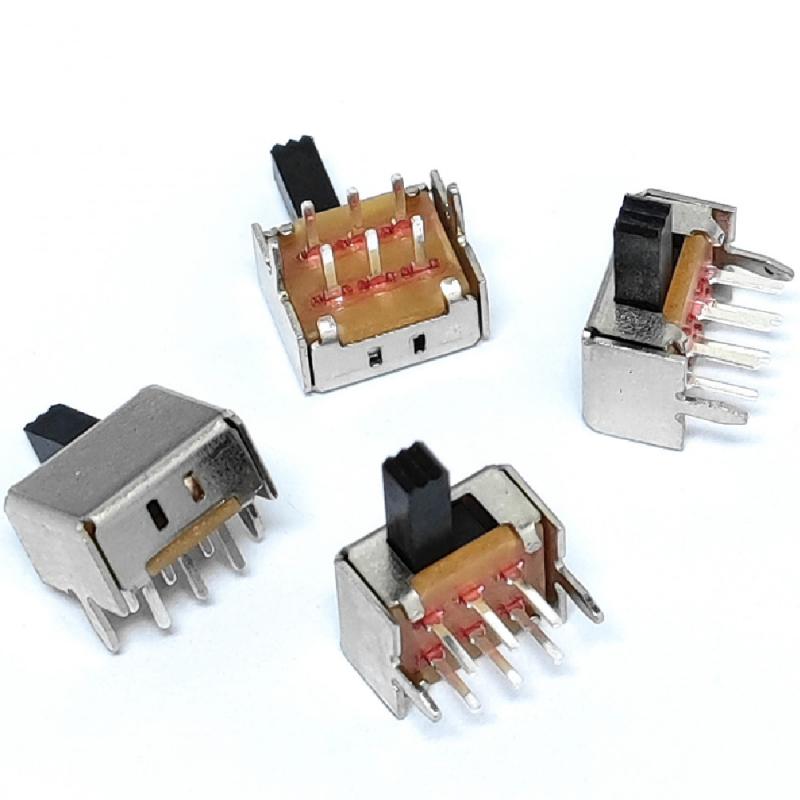

Product Detail

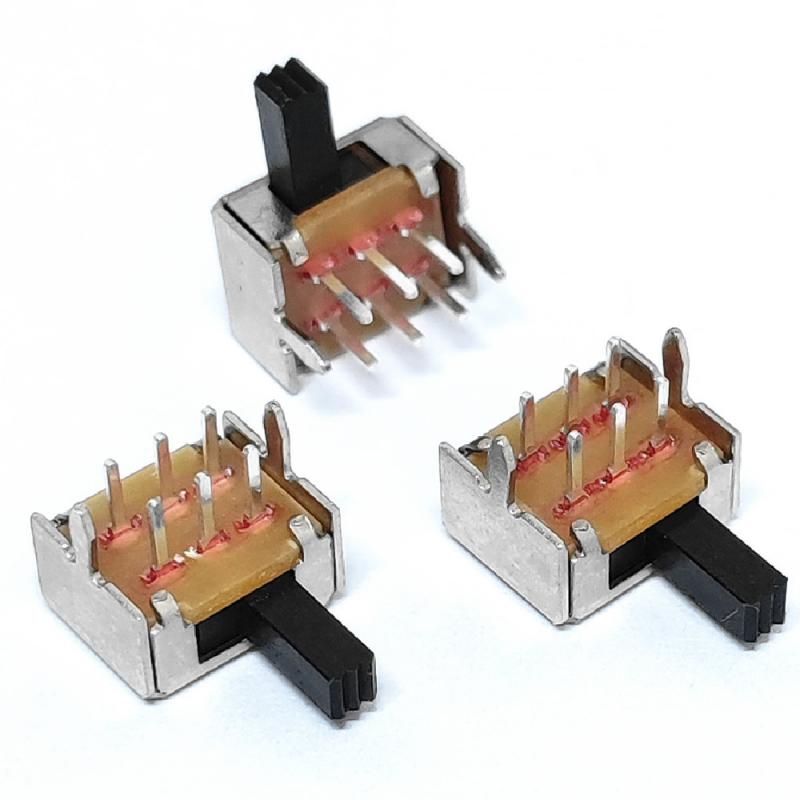

Small Various Knob Slide Switch for PCB Mounting

Typical Specifications

Type: Through hole slide switches

Ratings: 0.3A 50V

Operating Force:300±100gf

Full Travel: 2±0.2mm

Operation life: 10,000 cycles

Slide switch knob: 5mm

Operating Temperature Range: -20℃～70℃

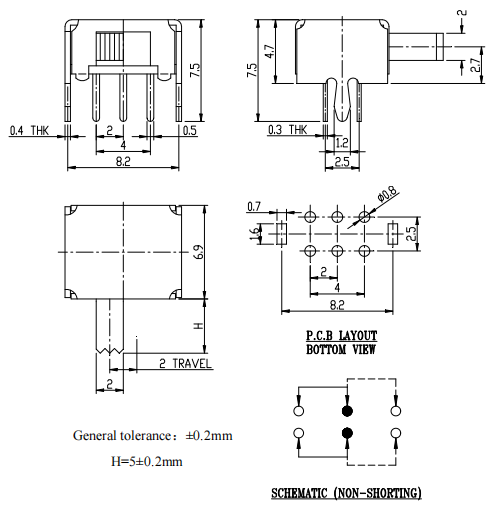

Slide switch dimensions

Micro 2P2T Slide Switch

Feature

Key Features of the ON-ON DPDT Slide Switch (Simple Combination)

1. Dual-Circuit Control (DP - Bipolar)

Simultaneously manages two independent circuits, ideal for integrated applications (e.g., power + signal switching).

2. Two Stable ON Positions (ON-ON Switching)

Provides two fixed "ON" states, allowing seamless switching between two different circuit paths (e.g., motor direction, signal routing).

3. Reliable Electrical Performance

Ensures low contact resistance and stable connection in both ON positions, suitable for audio, industrial, or automotive applications.

4. Slide Operation (Smooth and Intuitive)

The slide mechanism provides easy switching, reducing accidental switching compared to push-button types.

5. Wide Applications

Common applications include motor control (forward/reverse), LED polarity inversion, audio switching, and DIY electronics.
