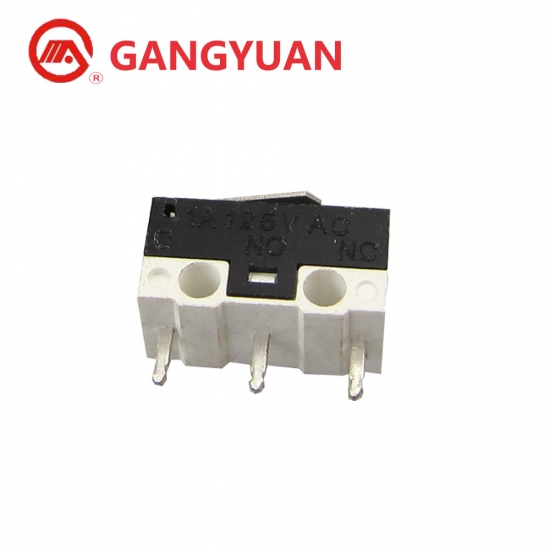

sensitive micro switch 12V

12.8*5.8 micro push button tactile switch 12V sensitive micro switch

  • Brand:

    Gangyuan
  • Item No.:

    DMI-07PW-30-3
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

sensitive micro switch 12V

Product Description

Model Name:

Micro Switch

Model No.:

DMI-07PW-30-3

Dimension:

12.8mm*5.8mm

Operating force:

80±15gf -180±15gf

Operating temperature:

-25°C+85°C

Mechanical life:

500,000 Cycles

Rated load:

AC 125V 1A

Insulation resistance:

AC 500V 1Minute

Withstand voltage:

250V  AC  / 1 min

Contact resistance:

≤100mΩ

Features:

Type: Small fretting

Features: short pressure handle

Customized selection: AC 125V 3A


Dimension

Size1 (3).pngSize1 (1).pngSize1 (2).png
