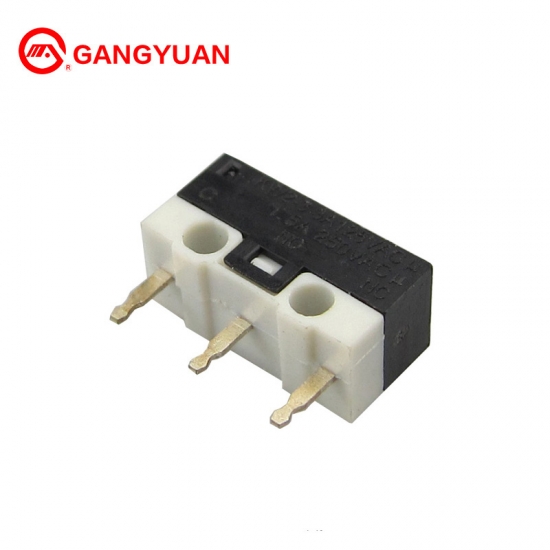

3 position ON or OFF micro switch

3 position ON or OFF micro switch use for electrical switch socket application

  • Brand:

    Gangyuan
  • Item No.:

    DM1-00PW-90-3
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

3 position ON or OFF micro switch use for electrical switch socket application

Product Description

Product Name: 3 position ON and OFF micro switch

Product model: DM1-00PW-90-3

Product specifications: 12.8mmx5.8mm

Product strength: 30±15gf

Product life: 500,000 times



Basic parameters:

Contact resistance
≤100mΩ
Insulation resistance
 AC 500V 1Minute
Operating temperature
-25℃+85℃
Operating force
30±15gf
Life expectancy
500,000Cycles
Rating
AC 125V 1A



Dimension
