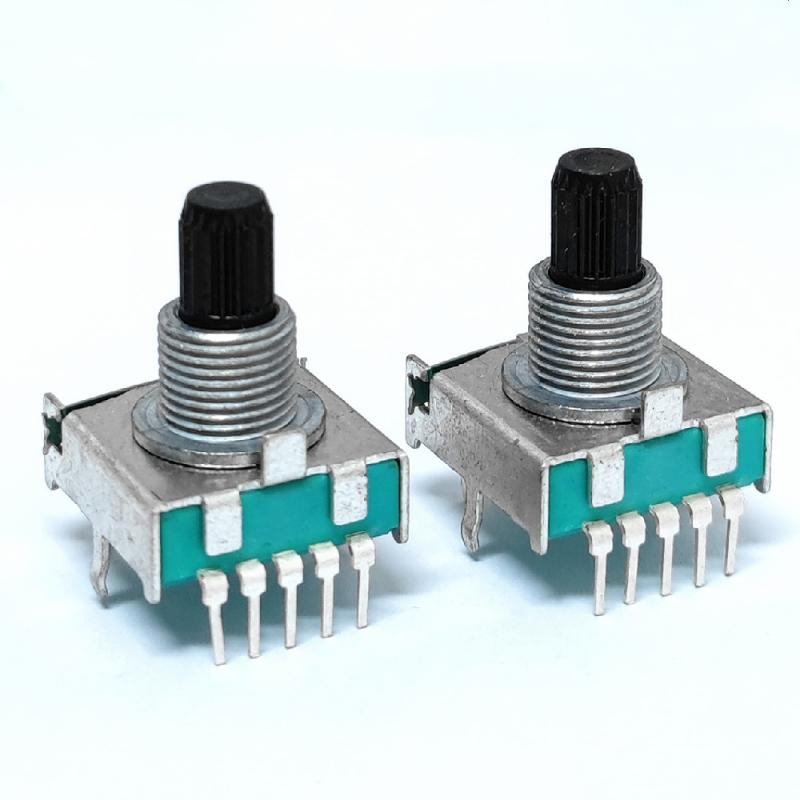

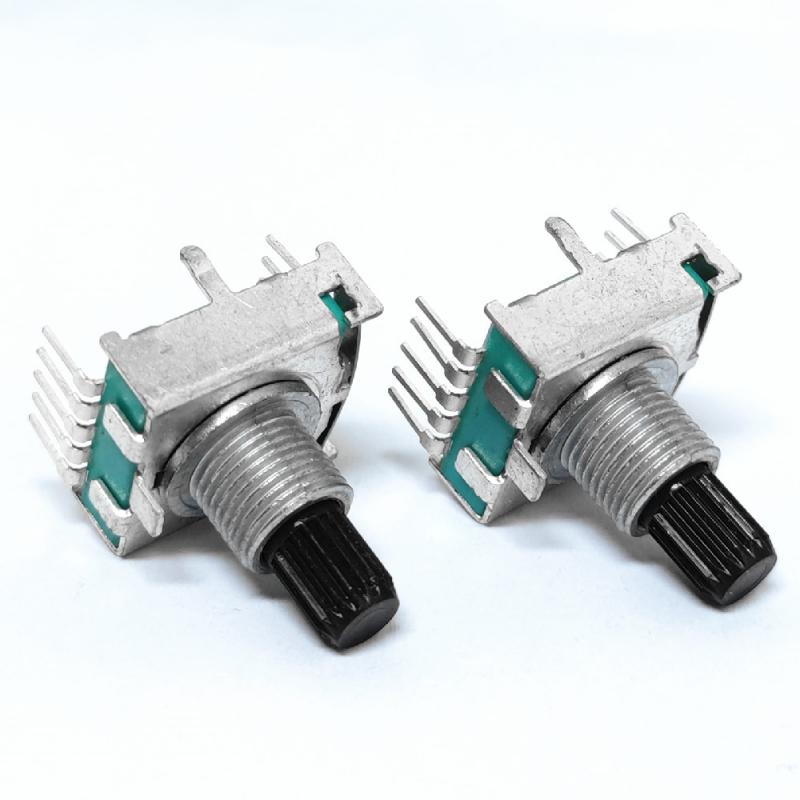

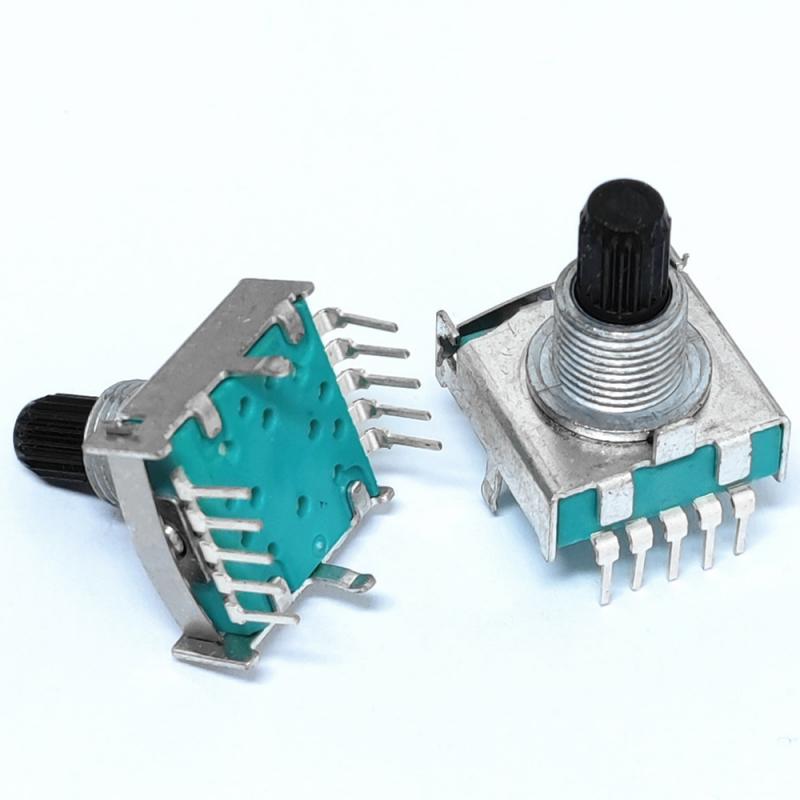

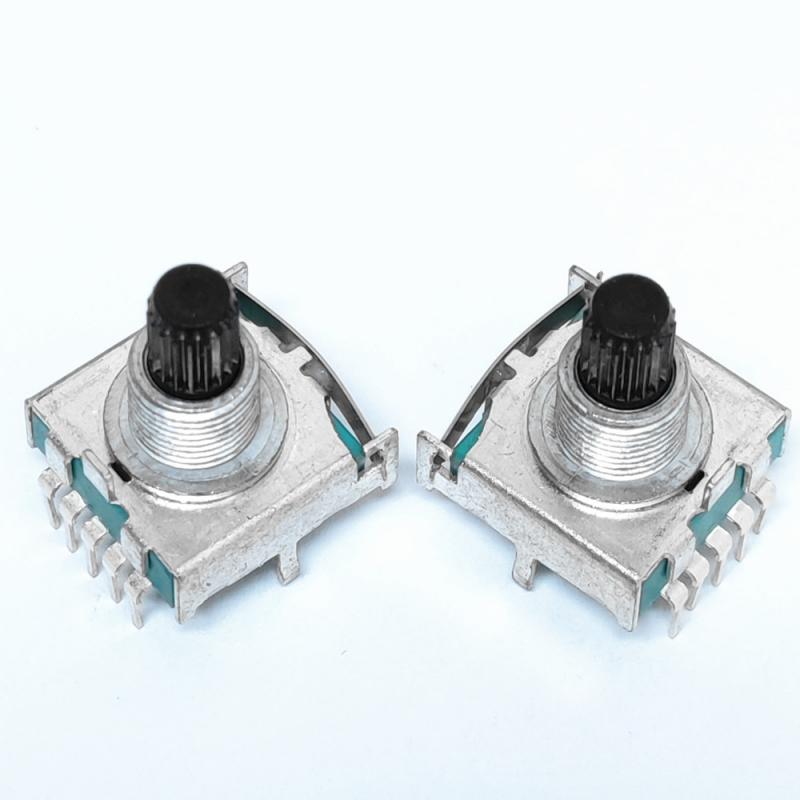

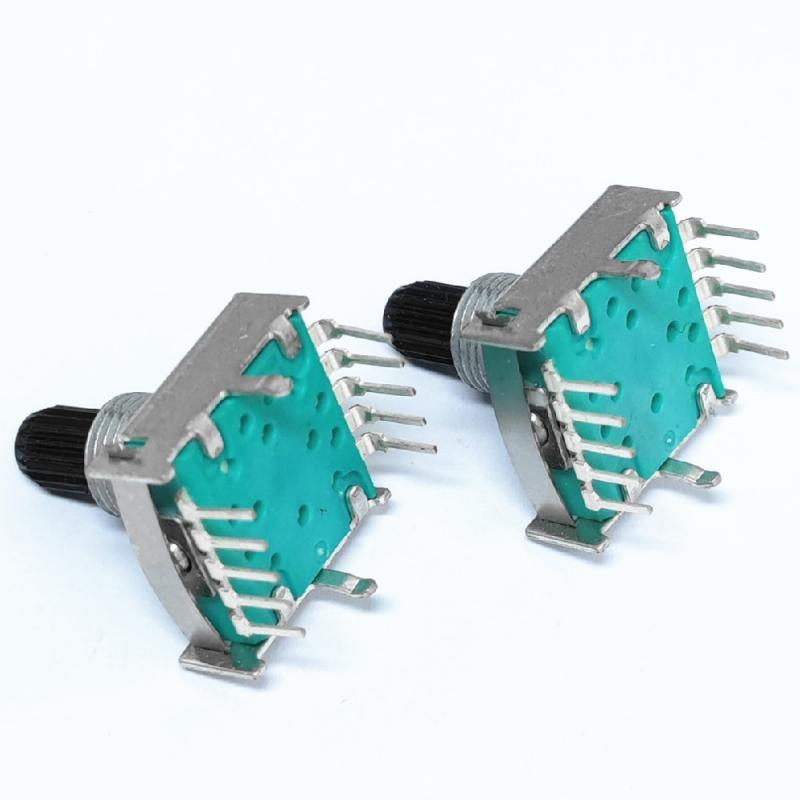

RS17 No Switch Rotary Switch

Miniaturized high-precision gear selection switches and multi-way switches are mainly used on products with adjustable menus and selection switching menus. Suitable for products with large knob caps and high torque.

  • Brand:

    Gangyuan
  • Item NO.:

    GE1701-A1-K15 7-5C-0
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Green and White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

DC16V 0.3A Universal threaded Rotary Switch Momentary


Parameter


Contact resistance: 100mΩMax

Insulation resistance: 100MΩ Min

Changeover angle: 30°±3°(one-step operating angle)
Rotational torque: 20∽70mN.m.(200∽700gf.cm)

Rotational Life: 20,000±200cycles.

Operating temperature range :-30℃ to+80℃
Storage temperature range : -40℃ to+85℃

shaft type:Various shaft types such as semi-circular shaft and circular plum blossom shaft are available.

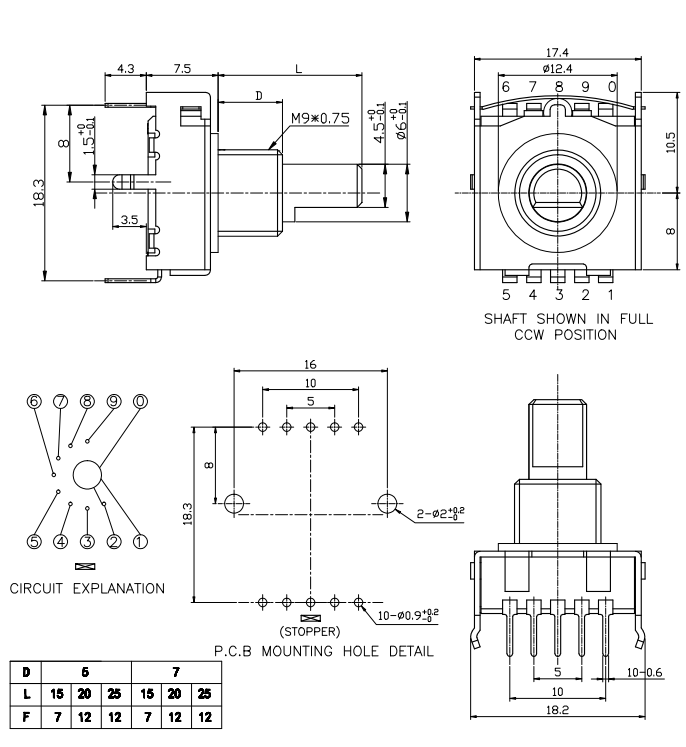

Drawing



Poles and Sections


rotary switch poles

1) Single Pole-2,3,4,5,6,7,8 sections for your choice

2) Double Poles-2,3,4 sections for your choice


Application


rotary switch application


  • Adjust gears
  • Select menu
  • Light intensity adjustment
  • Voltage control
  • Speed control, various parameter control, etc.
