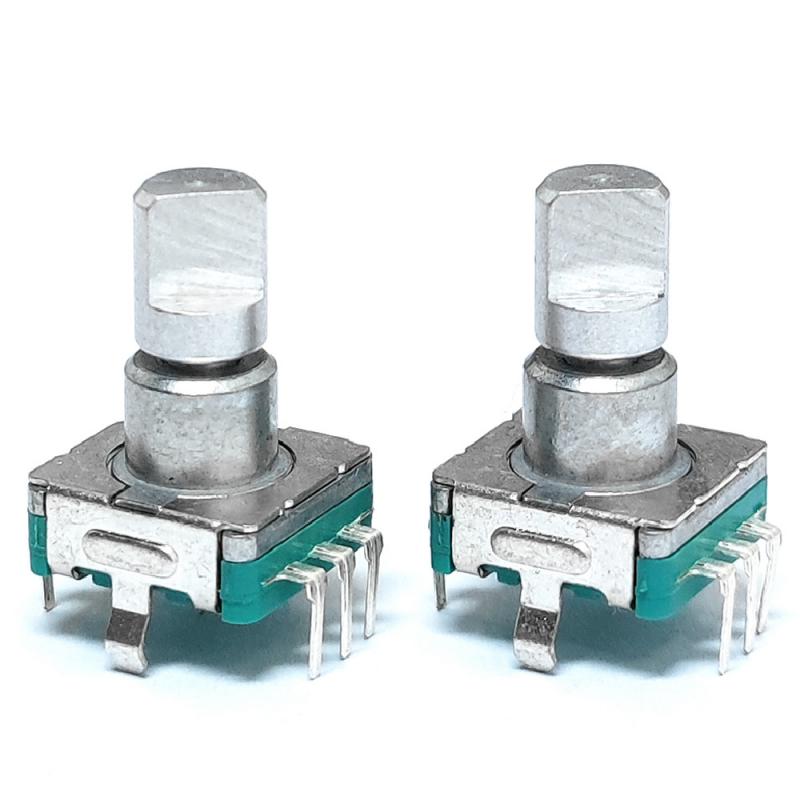

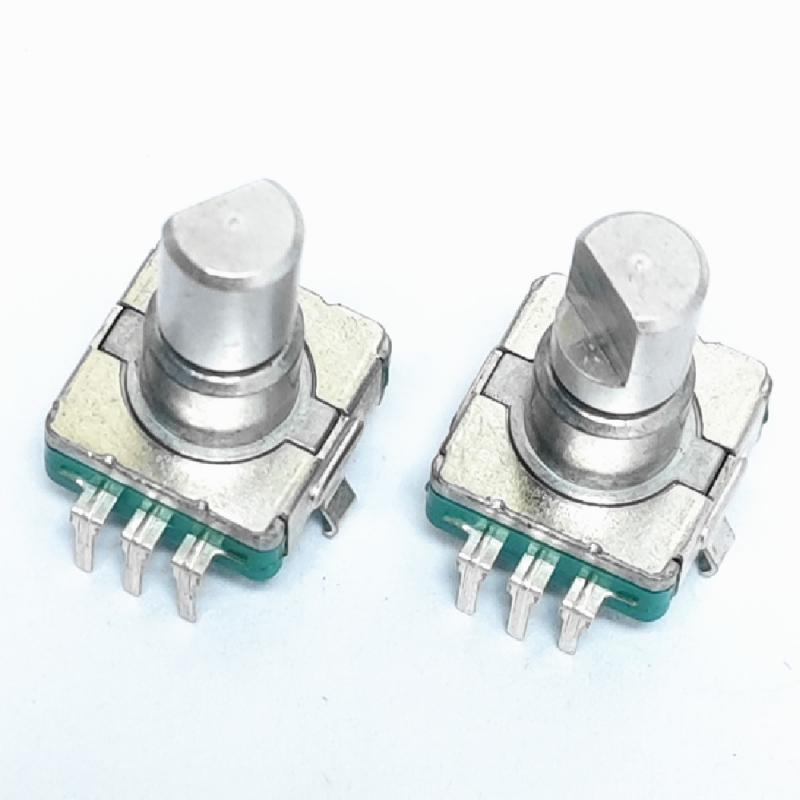

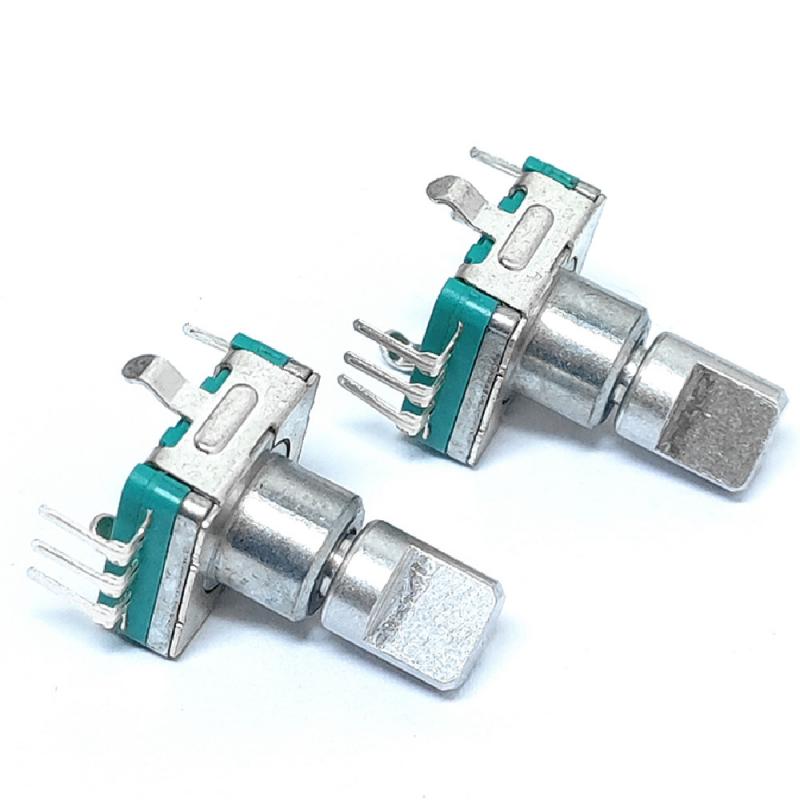

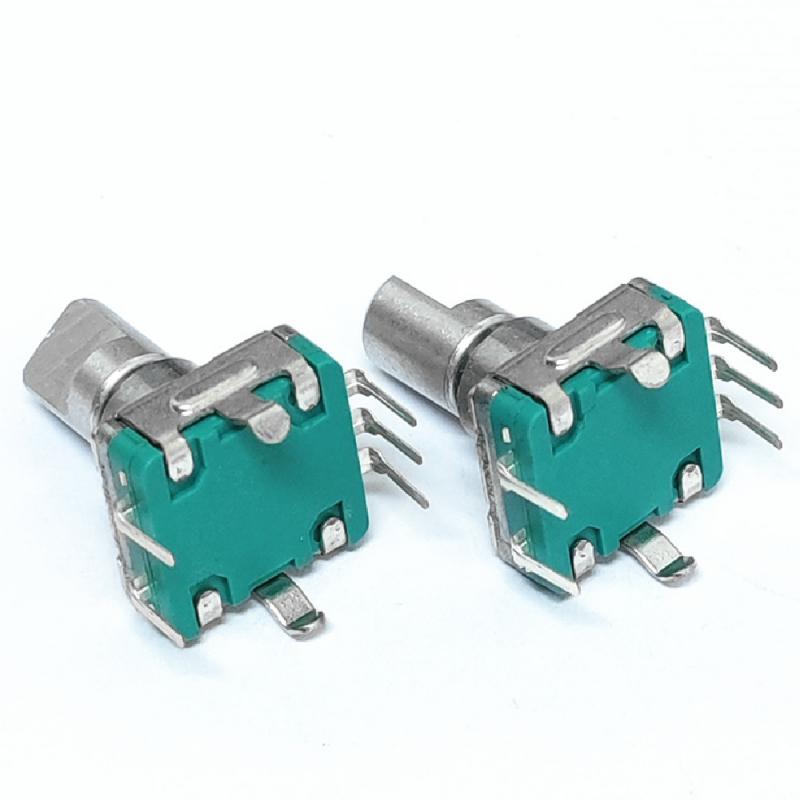

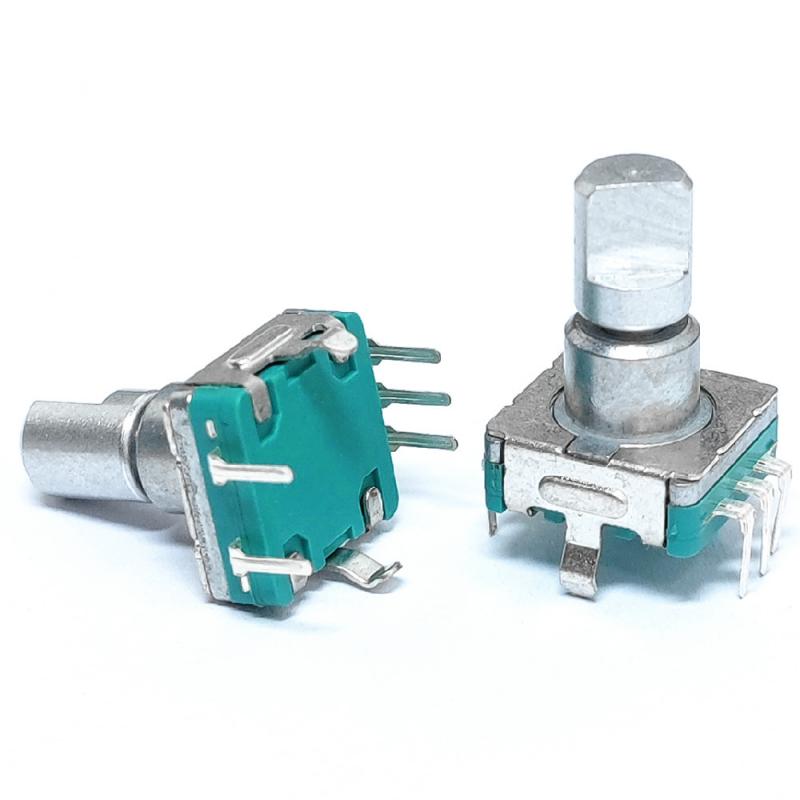

Incremental Thin 11mm Encoder

4.5mm base thickness 5mm bushing length through hole Encoder

Rotary encoder size:11mm (12mm,16mm for choice)

Parameter

Rating: DC5V; Max 10mA; Min 0.5mA

Pulse Encoder: 20 pulses/360°

Contact resistance: 500 mΩ Max

Insulation resistance: 100 MΩ Min

Total ratational angle: 360°(Endless)

Detent Torque: 9.8±0.35 mN.m. (100±35 gf.cm)

Number and position of detent: 20 detents(Step angle:20°±2°)

Operating life: 50,000 cycles

Operating force of switch: 4.9±2 N (500±200gf)

Travel of switch: 0.5±0.2 mm

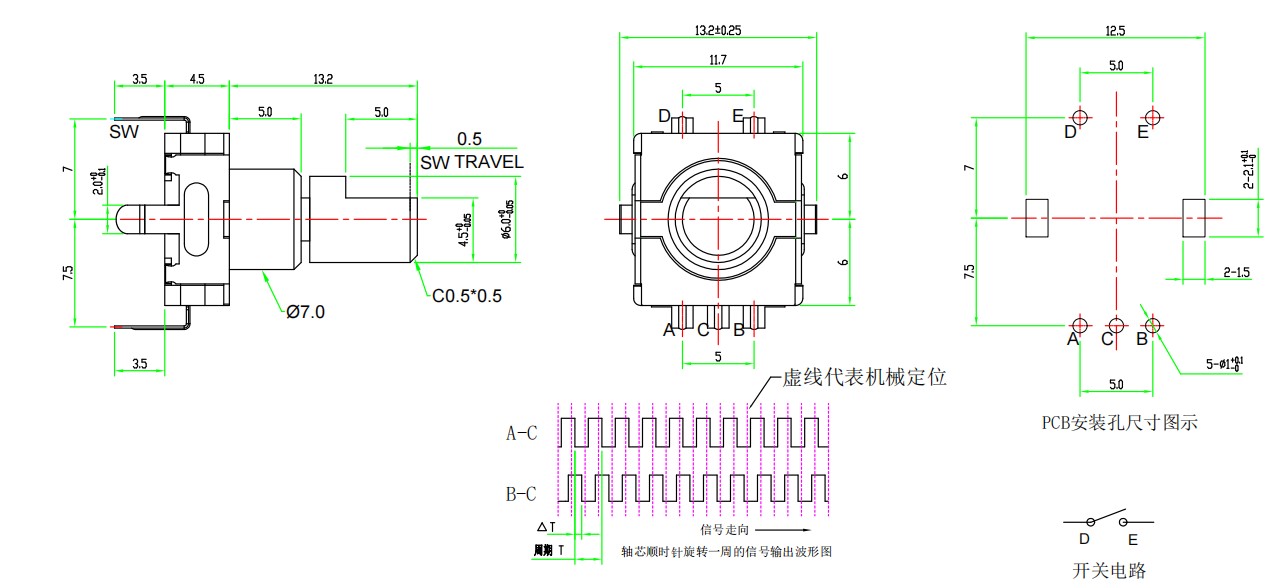

Drawing

The differences of Incremental encoder and Absolute encoder

1) The incremental encoder outputs a pulse signal, while the absolute encoder outputs a set of binary values;
2) Incremental encoders do not have power-off hold function, while absolute encoders can save data after power-off;
3) The number of revolutions of the incremental encoder is not limited, while the absolute encoder cannot exceed the range of the number of revolutions;
4) Incremental encoders are relatively cheap;

The structure of Incremental encoder

• Code disc （Incremental count track + direction track）
• Sensitive components (The sensitive element of the incremental encoder is generally a contact brush or a non-contact photoelectric system or a magnetoelectric system, which is compatible with the code disc.)
• counter （The incremental encoder calculates the increment of angular displacement. In order to calculate the actual size and direction of angular displacement relative to a certain reference position, a counter must be set）
