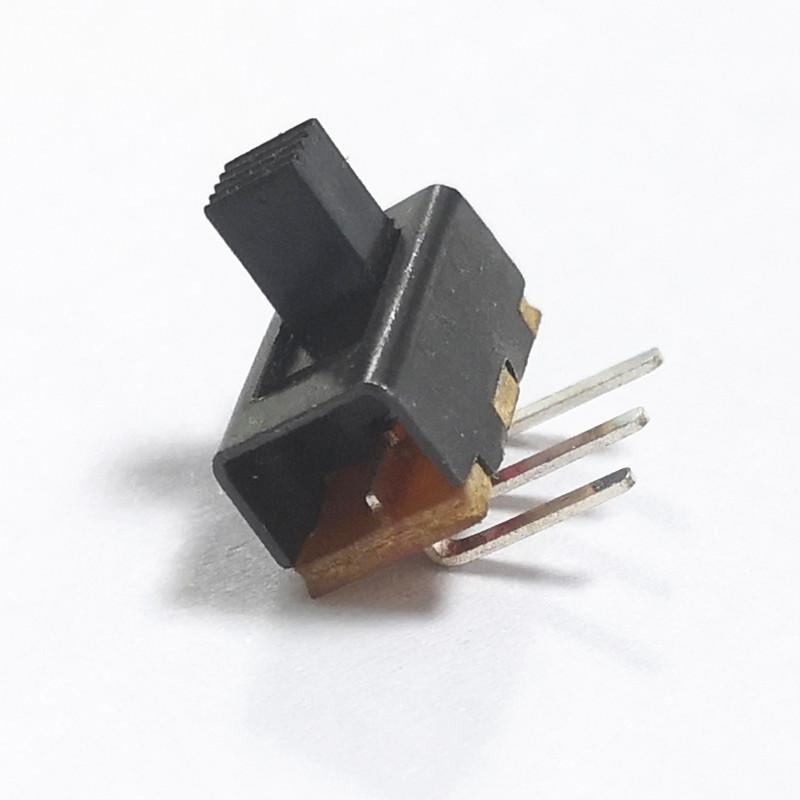

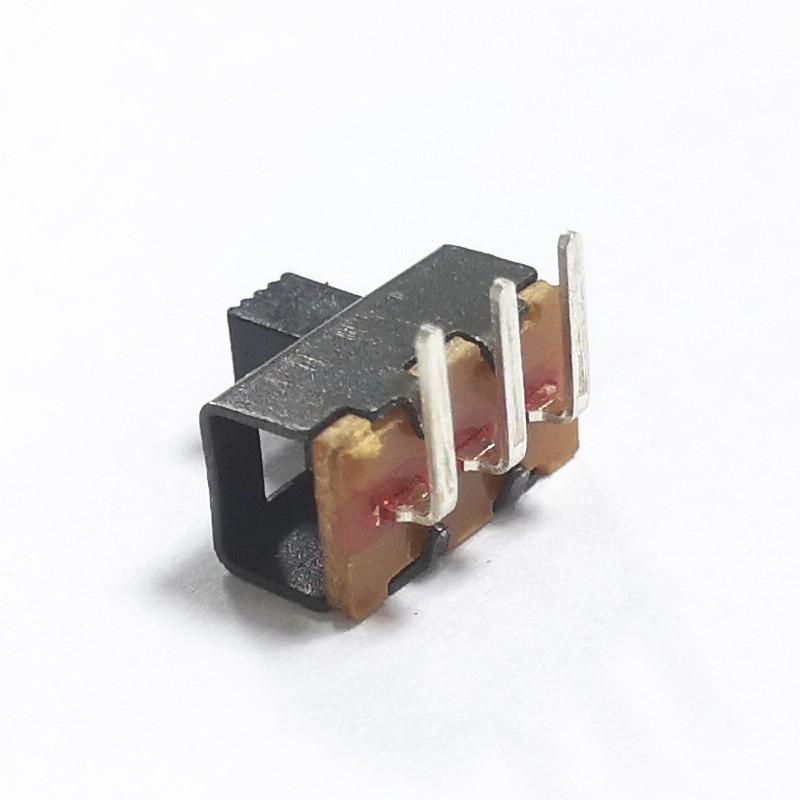

Right angle miniature toy slide switch

 0.3A DC 50V 3 position Metal slide switch

The nornal Base size is 3mm*6mm.

Product related specifications

Name:3 position Metal slide switch

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ
Operating Force:100±30gf/160±50gf/260±50gf
Life:30,000 cycles
Full Travel:0.25±0.1mm
Operating temperature range:-30℃~+80℃
Height:2.5mm
Storage temperature range:-40℃~+90℃

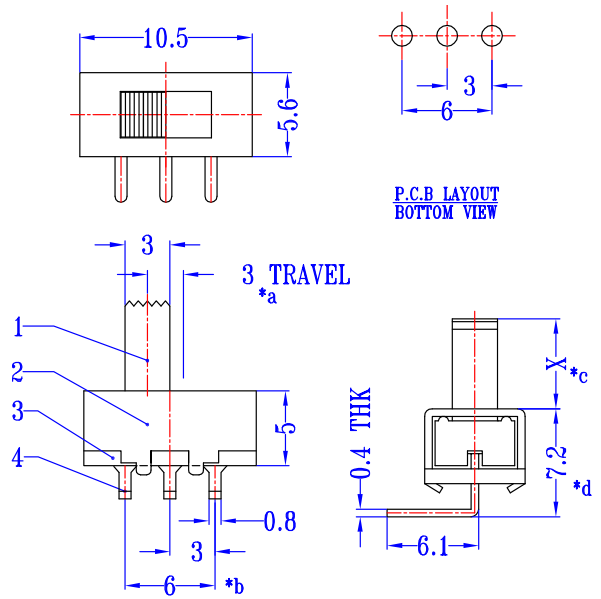

Product Size

Slide switch use range

• Audio-visual products: MP3, MP4 audio;
• Digital products: digital cameras, digital video cameras, etc.;
• Communication products: mobile phones, car phones, telephones, building equipment, PDAs, etc.;
• Security products: video walkie-talkies, monitors, etc.;
• Toys: electronic toys, etc.;
• Computer products: cameras, etc.;
• Fitness equipment: electronic body fat scales, treadmills, etc.;

FAQ

1. Q: Is your company a manufacturer?

    A: Yes, We are the switch manufacturer. We have three factories located in Shenzhen, Zhejiang and Hubei.

2. Q: Can we check the quality of the goods before we place an order？

    A:Of course, you can apply for a free sample of the toggle switch, and the sample will be ready for you within three to five days .

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
