Vertical small slide switch

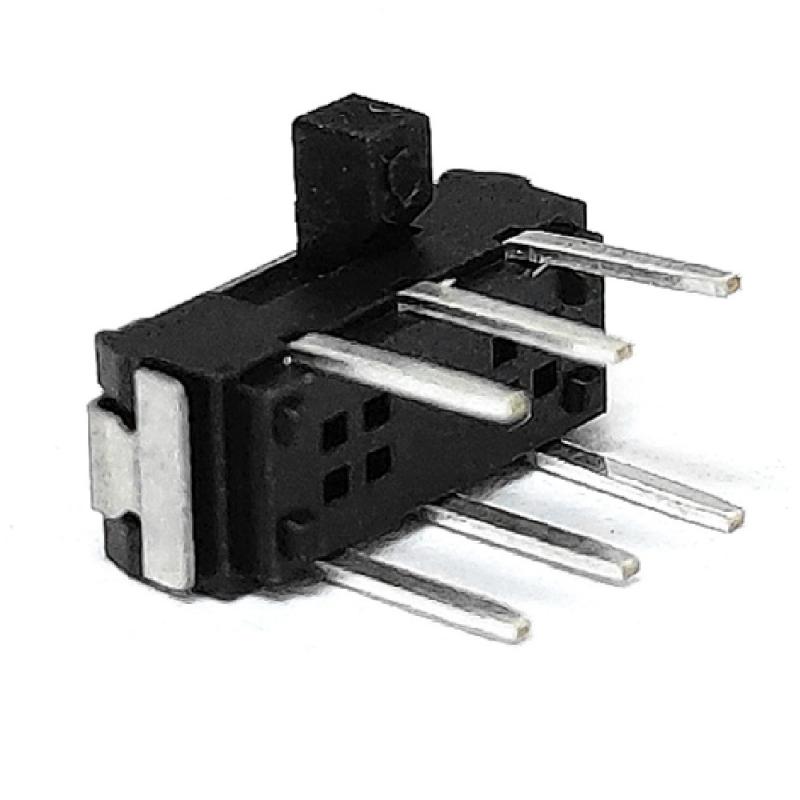

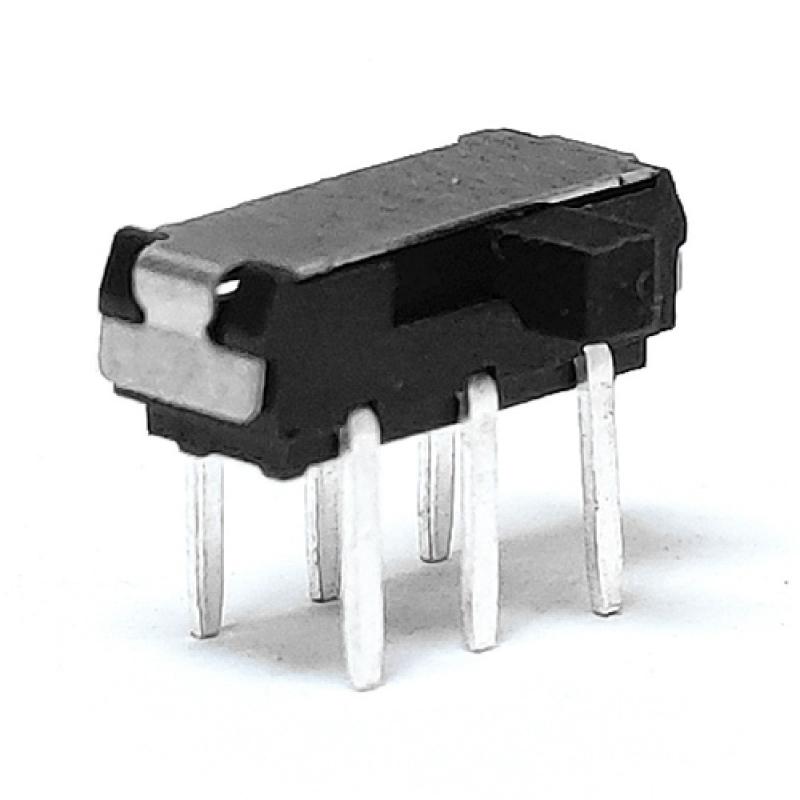

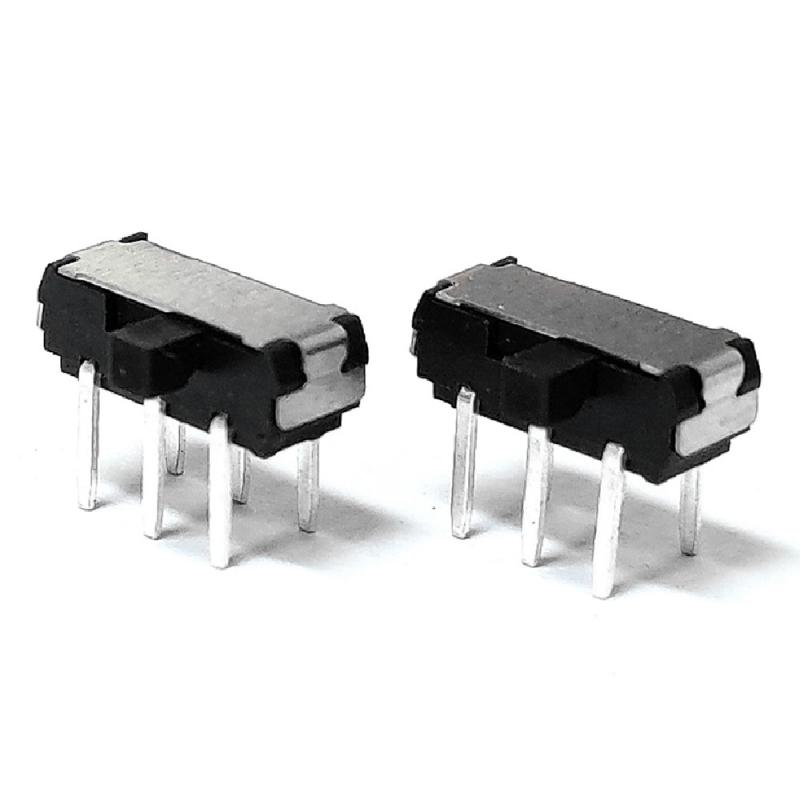

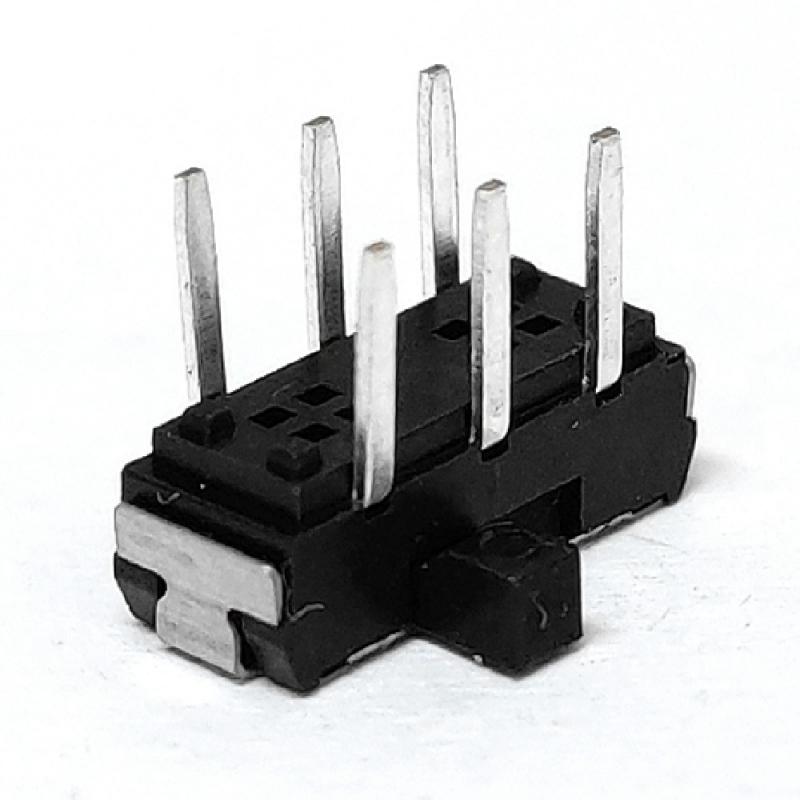

Slide Switch DPDT Through Hole, Right Angle

  • Brand:

    Gangyuan
  • Item NO.:

    MSK22D03-TG2
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

Thru-hole mounting right angle 12v 100mA slide switch

Sub-Miniature type


 Parameter

2 position slide switch

Max. Current: 100mA

Max. Voltage: DC12V

Function: DPDT

Mechanical Life: 10000 cycles

Operating force: 200gf±50gf

Contact resistance: 100mΩ Max

Insulation resistance: 50MΩ Min

Handle height: 2mm

Travel to closure: 2mm±0.2mm

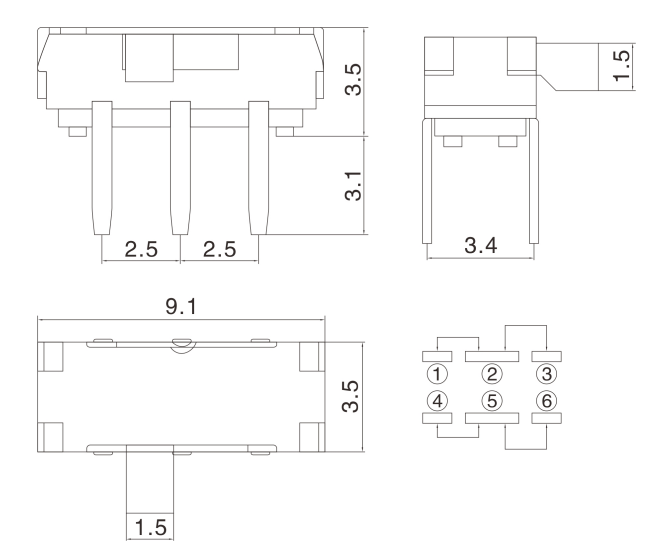

 Drawing

 Typical Applications

Telecommunication products

Computer peripherals

Thermostat select switch

Instrumentation

Medical

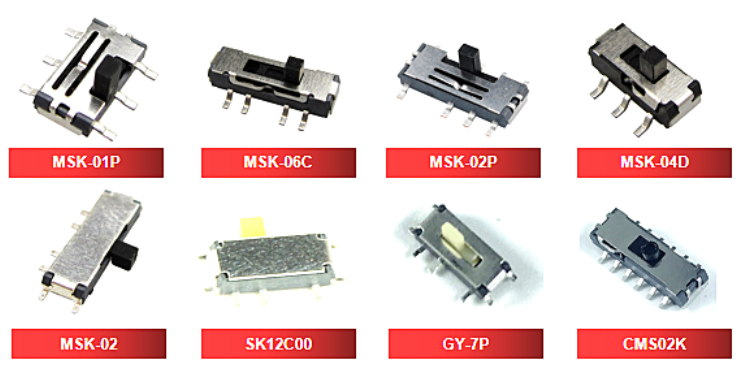

 Related product

Mini slide switch manufacturers



 What is the purpose of a slide switch ?


A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control

of a circuit's current flow without having to manually splice or cut wire.
