Right Angle 2 Travel 4P2T Slide Switch

The 4P2T slide switch simultaneously controls four independent circuits with two stable switching states, enabling efficient multi-path circuit selection in compact applications.

Brand:
Gangyuan
Item NO.:
SK42D02-EG4
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
15.00mm x 4.70mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

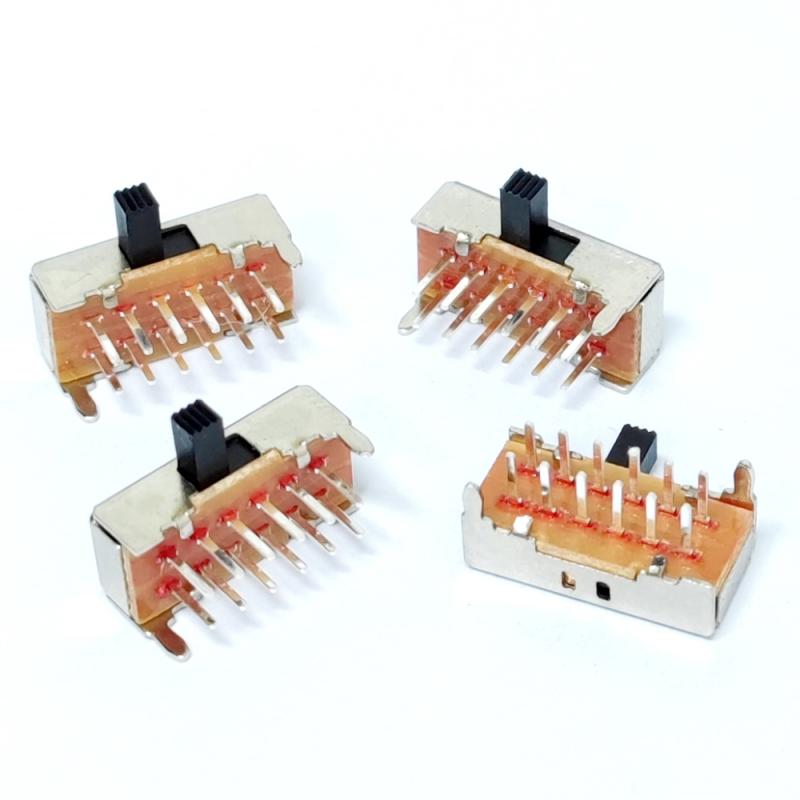

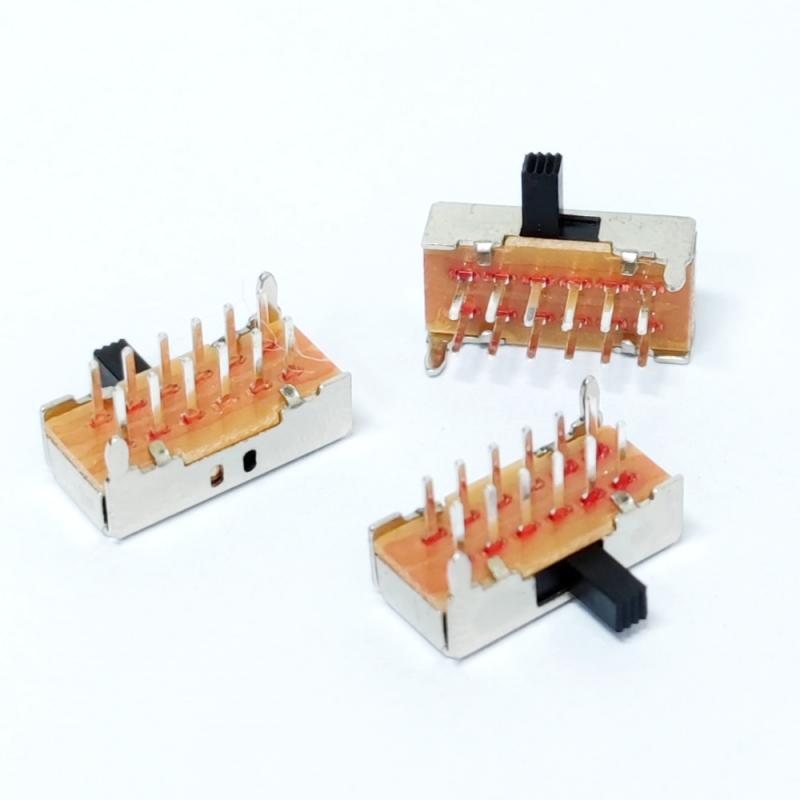

PCB Mounted Miniature Slide Switch

Typical Specifications

Type: Through hole slide switches

Ratings: 0.3A 50V

Operating Force:250±100gf

Full Travel: 2±0.2mm

Operation life: 10,000 cycles

Slide switch knob: 4mm

Operating Temperature Range: -20℃～70℃

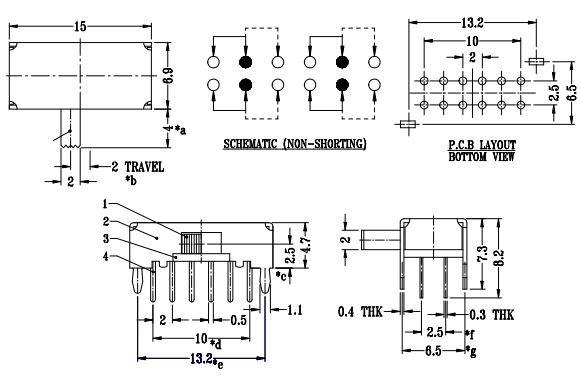

Slide switch dimensions

Micro 2P2T Slide Switch

Feature

Key Features of 4P2T Slide Switch (Concise & Combined)

1. 4 Circuits Controlled (4P - 4 Pole)

Manages four independent circuits simultaneously, ideal for complex multi-path applications.

2. 2 Stable Positions (2T - 2 Throw)

Offers two fixed switching states (e.g., ON/OFF or mode selection), ensuring reliable circuit routing.

3. Precise Multi-Path Control

Enables simultaneous switching of 4 circuits in 2 configurations, commonly used in industrial, audio, or automotive systems.

4. Compact & Durable

Space-efficient design with robust sliding mechanics, suitable for high-frequency or harsh-environment use.

5. Versatile Applications

Ideal for multi-circuit devices like LED controllers, motor drivers, or signal routers.
