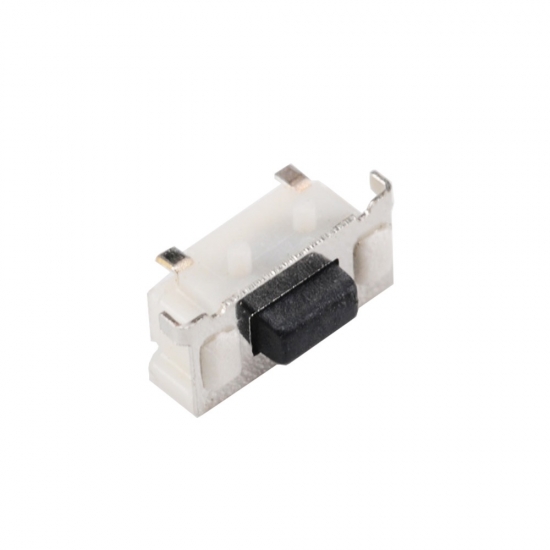

Normally closed 2 Pins SMD White Tact Switch

KAN3543: DC12v 50mA, 3.5x7x3.5mm, SMD type tactile switch



  • Brand:

    Gangyuan
  • Item No.:

    KAN3543
  • Payment:

    T/T, Paypal and etc
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    shenzhen/Ningbo port
  • Min Order:

    1000
  • Lead Time:

    7-15working days
Product Details

Normally closed 2 Pins SMD White Tact Switch


Basic Information

                              P/N

KAN3543
Dimension
3.5x7mm
Height
 3.5mm
Rating current
12VDC 50mA
Operating force
100gf, 160gf, 260gf(at customers request)
Life cycles
50,000/100,000cycles



Outline Drawing



Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Tact Switch Using Attention

1. Please consult us when considering to wash tact switches

2. Please don’t immerse soldering flux into tact switches

3. Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4. The second welding should be done after switches return to normal temperature



Appliance


Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.


A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
